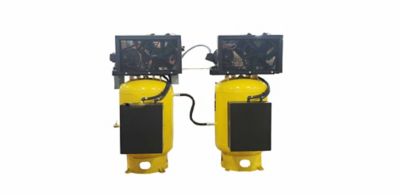

EMAX Compressor has added our Alternating line to the EMAX Silent Air family. By adding these alternating compressors to our Silent Air line, we have added to the needs of our high demand customers all while keeping with their quiet air needs. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron Patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM motors, (2) Magnetic Starters with a relay switch all installed on (2) ASME certified vertical tanks. This unit has all the features to make using it a breeze from its automatic tank drain to the belt tensioners and the dual run mode. These units also feature our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry!

• Pump RPM: 800 RPM
• Oil capacity: 2.5 qt. (x2)
• 78 CFM @ 100 PSI (x2)
• Max PSI: 175 PSI
• Voltage: 208/230 Single phase electric
• Tank Outlet Size: 3/4 in. (x2)
• Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or dual run rated at up to 70,000 hours (2) Magnetic starters w/relays
• Alternating Switch allow the units to alternate from one pump to the other. Eliminates excessive running and allows pumps to cool under heavy loads
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Built in Inner-cooler and After cooler
• Dual Alternating Industrial motors
• (2) Industrial-Duty Motors: 1750 RPM
• Certifications: ETL, UL & CSA
• ASME Certified powder coated Air Tanks up to 200PSI Max. Approved for ALL 50 states
• 1 Year Standard, 5 Year Extended, Eligible Lifetime Pump warranty with Maintenance kit

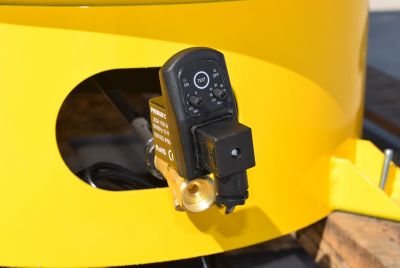

• Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
• Gate valve oil drain provides quick, clean oil changes
• 120 gal. Vertical Tanks (x2)
• Tak outlet size: 1 in.
• Dimensions: 41 in. x 43 in. x 78 in. (LxWxH)
• Weight: 1020 lb.
