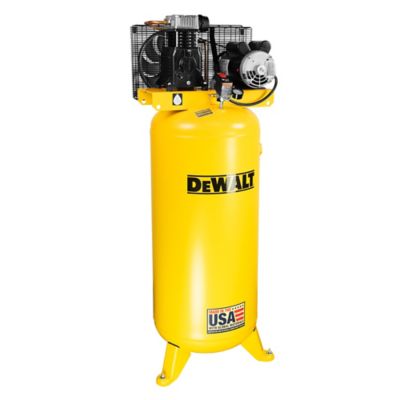

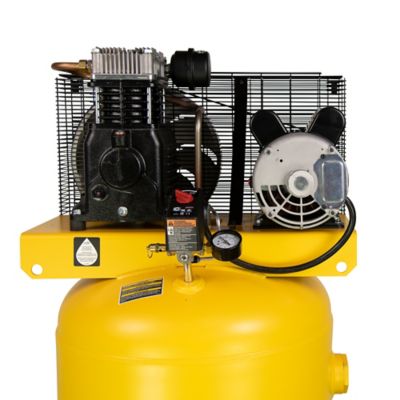

DEWALT 5 HP 60 gal. 1-Stage High Flow Electric Stationary Air Compressor, 175 PSI
4.0201 Reviews
Item # 175284399
DEWALT 5 HP 60 gal. 1-Stage High Flow Electric Stationary Air Compressor, 175 PSI
4.0201 Reviews
Item # 175284399
$1,099.99
Available promotions
0 In Stock in Aisle
This item is not available at Franklin TN
Search Stores
Ship to store at Franklin TN
Pickup Nearby at FAIRVIEW TN(13.2) miles
Select a different store
Fix, replace, reimburse after your manufacturer’s warranty expires, plus valuable day 1 benefits. Powersport Plans not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Designed with performance and durability in mind, this DEWALT 60 gal. High Flow Single Stage Air Compressor at 175 PSI provides 33% longer air tool run time versus other 60 gal. 175 PSI compressors. It features an air delivery of 14.6 SCFM @ 90 PSI, which is 27% higher SCFM compared to other 60 gal. 175 PSI compressors. The DEWALT 60 Gal. 175 PSI air compressor is perfect for a small shop, automotive enthusiast or serious DIY user. This unit features a 208-230 spread volt electric motor. It should be connected to a power supply that is 240 Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 30 amp double pole breaker for proper installation) This compressor does not include a power cord. Limited Warranty - 2 Year Pump, 1 Year All Other Parts
- High Air Flow, Single Stage with 14.6 SCFM @ 90 PSI
- 175 PSI Max Pressure typically found in two stage compressors, for optimum tool performance - 175 PSI combined with a 60 gallon tank provides more stored energy which allows for longer air tool run times
- Heavy duty, 208-230 spread volt induction motor designed to operate at both 208 and 230 volt applications
- Large capacity, 60 gal. ASME air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc.

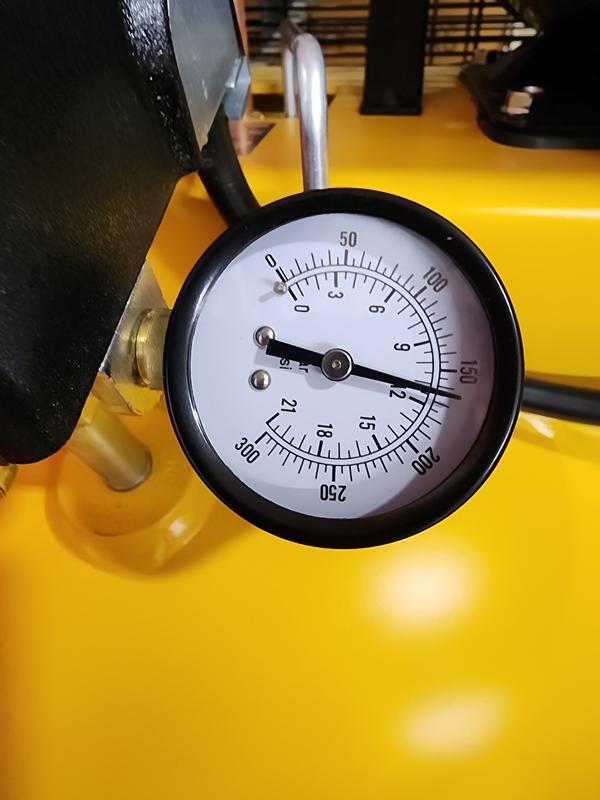

- Equipped with pressure gauge and on/off switch
- Large air outlet port
- Tie down holes on platform sides to secure unit when transporting
Similar Items
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
-
-
Items You May Like
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Customers Also Bought
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Reviews
Summary of Reviews
This medium-duty air compressor is generally well-received, with many customers finding it to be a great value and able to build pressure efficiently. However, some users have reported issues such as ...
Most Helpful Favorable Review
5 out of 5 stars.
Happy Camper
- Verified Product Owner
2 years ago
I did a lot of research on compressors and almost decided on the 3.7 HP 60 gallon Dewalt that was on sale for a great price at Tractor Supply. However, after reading many reviews stating that the motors have been burning up and that the replacements cost almost as much as the entire compressor. It seems that all the compressor manufacturers are making one of the 3.7 hp compressors with pretty good output. Many of the reviews have the same comments about the motor failures. Therefore, I decided to go to the next size up, since the output on the 3.7 HP units were barely enough to do some of the sand blasting, I wanted to do, anyway. I reviewed many of the 5HP units within many different brands. Dewalt and was among the two brands that fell in my price range. The other brand I looked at had some great specs and reputation, but none were available within hundreds of miles. I liked what I saw in the Dewalt high output 5HP unit only find out that they were in high demand and only a few available in the country. After talking to TS headquarters about availability and performance I found that I was satisfied with the performance and reputation of the Dewalt and found one only 50 miles away. I bought it and as usual TS was great to deal with. The installation went as well as I expected and so far, I am completely satisfied with the project. Could not find any anti-vibration mounting pads that fit without modifying them, so I made my own, which took too long. I am pleased with the compressor installation, look and performance. It is a little loud, but was properly rated at 87db. I did buy the 2-year extended warranty because it starts after the manufacturer's warranty ends TS handles any problems without going back to the manufacturer for help. Thanks Tractor Supply and Dewalt.
14 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
Disappointed, doesnt build pressure out of the box
- Verified Product Owner
2 years ago
After wiring up and following break in procedure the compressor build absolutely no pressure. Contacted the manufacture customer service number. After being on hold for 45 minutes the woman couldnt point me towards a resolution and after a week I have not had any call back.
8 people found this helpful
Show Reviews:

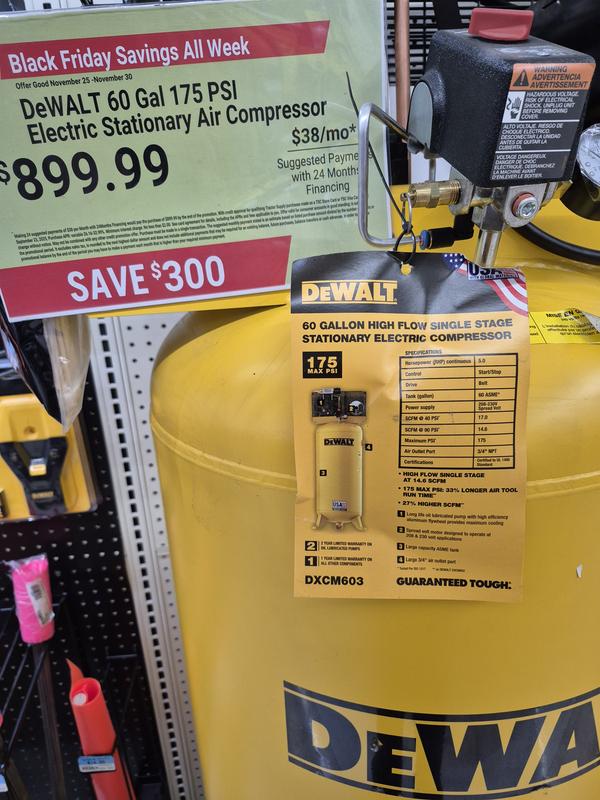

Customer Images and Videos
1 to 4 of 201 Reviews
1 – 4 of 201 Reviews
Featured
- Verified Product Owner
michigan
5 out of 5 stars.
Krapohl Ford Recon dept
- Verified Product Owner
a month ago
great value works perfect for our reconditioning department
SweepstakesYes
Yes, I recommend this product.
Easley, SC
1 out of 5 stars.
Do Not Buy
2 months ago
Brought home, professionally wired, had no instructions on that part, ran for the 30 minutes with no plug to break in. Let it cool started it and the VERY FIRST TIME it built pressure the check valve popped and it won't hold pressure! Very 1st time! I can't explain how mad I am! I would give zero stars if I could!
No, I do not recommend this product.
Response from Dewalt Team:
2 months ago
Dewalt Team
We're sorry to hear about your experience with this compressor! Someone on our service team would be happy to help you resolve the issue with this product. Please reach out to them at 1-888-895-4549 or [email protected] for assistance.
- Verified Product Owner
Tyrone, PA
5 out of 5 stars.
Great service and product
- Verified Product Owner
3 months ago
I run a CNC Plasma table with it and it works perfectly. Old Ingersol quit, was able to order online, pick up and back running again within 2 hours.
SweepstakesYes
Yes, I recommend this product.
Syracuse, NY
1 out of 5 stars.
Actual CFM seems to be way lower than it's SCFM ra
4 months ago
The SCFM rating of this compressor is 14.6. In practice, it seems to deliver far less than that. I understand that the actual CFM will always be less than SCFM. However, my shop conditions are pretty similar to SCFM ideal conditions so the compressor should deliver something close but less than 14.6 CFM. It turns out this compressor won't even run a cut off tool rated at 4 CFM. I'm pretty disappointed and which I bought a different brand. Not that DeWalt doesn't make this tool - its actually made by MAT Industries. I was referred by DeWalt to call MAT Industries and so far all they have said is that nothing is wrong. I'll update this review if I successfully resolve the problem but right now I'm not optimistic.
No, I do not recommend this product.
