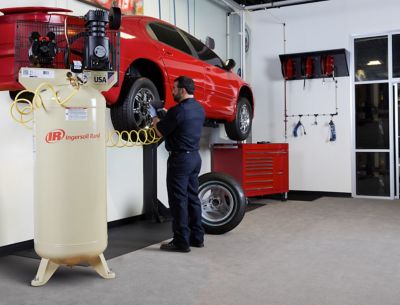

Ingersoll Rand SS5L5 5 HP 60 Gallon High Capacity Air Compressor

SKU # 107562399
Product price

Save Up To
See price at checkout Why?
Product Rating is 4.0
4.0
(26)

Financing Available! Click here for more details...

Quantity

Autoship

Pickup In Store

Delivery Options

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

The Ingersoll Rand SS5L5 5 HP 60 gal. High Capacity Air Compressor is designed for professional duty.

  • Extended life (9,000 hour) all-cast iron compressor pump
  • 60 gal. vertical tank
  • Single stage
  • 1 year limited warranty

Specification Description
Air Outlet Size: 1/2 in.
Brand: Ingersoll Rand
CARB Compliant: Yes
CFM @ 90 PSI: 18.1
Drain System: Manual
Duty Cycle: 100%
Grade: Commercial
Magnetic Starter: No
Maximum Pressure: 135 PSI
Phase: Single
Portable or Stationary: Stationary
Product Height: 71 in.
Product Length: 30 in.
Product Type: Air Compressors
Product Weight: 310 lb.
Product Width: 20 in.
Pump Type: Cast Iron
Running HP: 5 HP
Tank Size: 60 gal.
Tank Type: Vertical
Warranty: 1-Year Limited, 2-Year Pump Warranty with IR Lube
Power Type: Electric
Style: Single Stage, Twin Cylinder
Manufacturer Part Number 48671770
Ingersoll Rand SS5L5 5 HP 60 Gallon High Capacity Air Compressor is rated 4.0 out of 5 by 26.
Rated 5 out of 5 by from Great product Bought this to replace our old Campbell hausfeld unit. Haven't had any issues and I run it 6 hours a day. Quite for the type of compressor it is and overall good quality. I would buy again.
Date published: 2018-10-08

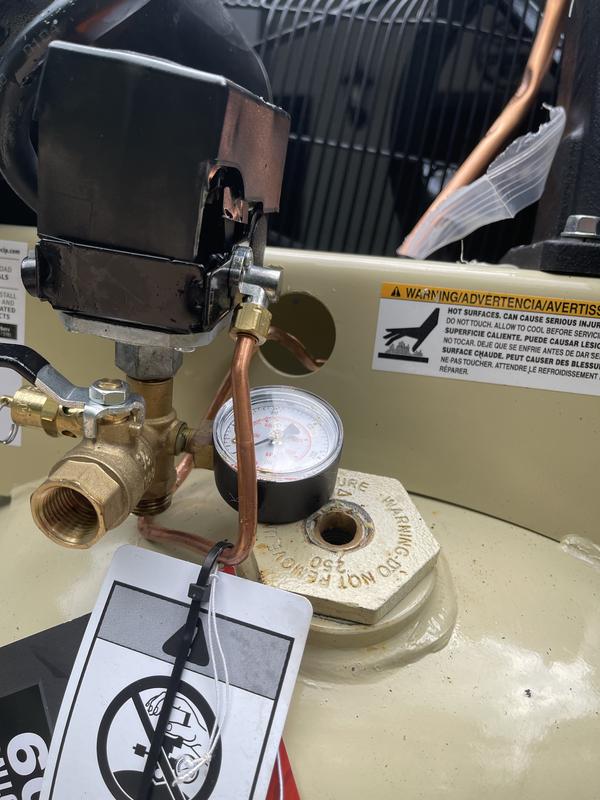

Rated 5 out of 5 by from Impressed so far I purchased this compressor about a month ago as an upgrade for my home garage. Very impressive to have 3 times the air storage and output volume than before with the same noise level and basically the same footprint. I think the pressure switch was damaged during shipping and did not work properly, but IR shipped me replacement very quickly. It was great service. I was sorry to read some of the other reviews where people did not have a good experience, but this compressor runs great. I will update my review after I get some considerable hours on it.
Date published: 2018-10-07
Rated 5 out of 5 by from Shop TSC - love this store I bought this product a month ago and put it in my shop. Have always been pleased with anything I purchased at TSC and if there was ever a problem with it after I got it home I could bring it back and they would replace it. Great customer service great value and great variety of products
Date published: 2018-09-22
Rated 3 out of 5 by from good to fair. This compressor builds air very fast. Good feature. A problem I have is the tank is rusty. Of course the rust will blow through the system which will wear out the pump and components that much faster. I see why you wanted me to buy the extended warranty. The rusted tank will not allow me to paint or bead blast which is one of the reasons I purchased the compressor. The other problem is the leak through the shut off valve. It's not much of a shut off valve. It should be called a leak down valve. I've an email to IR about the named problems but I don't expect to hear from them since its been a week. I would not recommend purchasing this compressor with the built in problems. To rectify I'm sure its not going to cost me more then couple hundred bucks. Its used now.
Date published: 2018-08-24
  • y_2018, m_10, d_16, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_24
  • loc_en_US, sid_107562399, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

In the QA section the answer for using this compressor for sandblasting is that is not recommended. Why is this? The compressor is rated for continuos duty and if the CFM requirements are less than the compressors max it should be OK.

Asked by: Wolfey
Per the manufacturer please see the response below. SS5L5 Continuous duty = 6-7 starts to stops per hour CFM 18.1 CFM at 90 psi 15.5 CFM at 135 PSI Sandblasters usually require a continuous push of air depending on the nozzle size this unit may or may not work. Typically A 5/64” nozzle requires 7 cfm, A 1/8” nozzle requires 15 CFM and 5/32” nozzle requires 20 CFM of air. So in the case of the SS5L5 – it will have to start and stop more than 6-7 starts n stops per hour to keep up constant air supply with the 1/8 and 5/32 sand blaster
Answered by: CodyP
Date published: 2018-10-11

What is considered as a reciprocating air compressor ? What is the difference between air compressor coolant and lubricant ?

Asked by: racingjoe7
A reciprocating compressor or piston compressor is a positive-displacement compressor that uses pistons driven by a crankshaft to deliver gases at high pressure. The intake gas enters the suction manifold, then flows into the compression cylinder where it gets compressed by a piston driven in a reciprocating motion via a crankshaft, and is then discharged. In regards to Ingersoll Rand products, some are labeled as requiring coolants, some are labeled as requiring oil. In this case, Ingersoll Rand All Season Select functions as both.
Answered by: DanielB
Date published: 2018-03-29

The specifications for this compressor call it a commercial duty model but in the QA section there is a statement that it is considered a homeowners compressor. What is the correct answer?

Asked by: Wolfey
Please reach out to Ingersoll Rand's Air Compressor Technical Team for help with any questions regarding the difference between the two models. They can be reached at 1-800-247-7378.
Answered by: JWag
Date published: 2018-10-15

Is this air compressor designed for small 20-gallon tank sand blasters?

Asked by: TSC shopper
It is not recommended to use the SS5L5 for a sand blaster operation. The SS5L5 is considered a home owners use compressor.
Answered by: DanielB
Date published: 2018-10-10

what is the amp draw

Asked by: stich38
21.5 Amps for an SS5L5. It will normally be a little less depending on your incoming electrical service.
Answered by: NRoberts
Date published: 2018-09-04

What type of tools will this compressor run?  Paint sprayer? Impact wrench? DA sander? Air hammer?

Asked by: randy033
Every “tool” (Paint sprayer, Impact wrench, DA sander, Air hammer) has a CFM requirement. In order to know whether a compressor is sized correctly for a tool, you should compare cfm required by the tool to the cfm rating of the air compressor.
Answered by: BrittanyH
Date published: 2018-10-11

Hi, Is the motor 208-230vac or just 230?

Asked by: Tim H
The motor on the SS5L5 is 230/1/60 only.
Answered by: DanielB
Date published: 2017-02-03

will this compressor meet any of my specs for my sprayer ? 13.5 cfm @165 psi . 15.8 cfm @ 90 psi . 16.4 cfm @ 90 psi ?

Asked by: brian123
It will not meet all of your specs. The max psi this compressor can handle is 135. However, the compressor is capable of putting out 18.1 cfm at 90 psi.
Answered by: DanielB
Date published: 2016-09-08
