Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
Limited Time Deal
Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
Item # 349612999
$1,349.99
Sale
Was$1,699.99
Save $350.00
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Notice:
This Item cannot be shipped to HI.Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
Item # 349612999
Buy Air Compressor Get 20% Off Air Compressor accessorie
$1,349.99
Sale
Was$1,699.99
Save $350.00
or
or
$100/mo.† suggested payments with 12 Months Financing or earn $59 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Notice:
This Item cannot be shipped to HI.Get everything you need
Neighbor’s Club Members earn points with purchases.
The Ingersoll Rand TS4N5 Reciprocating Air Compressor provides reliability and performance for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. The air compressor has a cast iron pump construction that provides trouble-free use for over 15,000 hours. The individually cast cylinders, overhung crankshaft and one piece connecting rod allow for easy maintenance of the reciprocating air compressor. Use of All Season Select synthetic lubricant in the air compressor allows for 2,000 hours of service between changeouts. Warranty coverage is available.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 5 HP electric-driven 230V 78db two-stage reciprocating air compressor
- 80 gal. ASME receiver tank
- 15.8 CFM @ 90 PSI
- Cast-iron construction of the air compressor extends the life of the pump over 15,000 hours
- Maximum operating pressure of reciprocating air compressor : 175 psig
- Individually cast cylinders, overhung crankshaft and one pc. connecting rod makes maintenance of the air compressor simple
- All Season Select synthetic lubricant increases efficiency with 2,000 hours of service between changeouts
- Extended Pump warranty with the purchase of an All-Season Select lubricant start-up kit. If used from the start the warranty on the pump goes from the standard 1 year to a 2 year warranty.
- 21.5 Full Load Amps, Recommended Breaker Amp Size 40, Recommended Wire Gauge<50 ft. 8 Gauge
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
- IR80 , IR 80 , #IR80 , Ingersoll Rand IR80 , IR-80
- 28Lx30Wx72H 435lbs
- Replacement belt available (sold separately) TSC SKU# 1335679 https://www.tractorsupply.com/tsc/product/ingersoll-rand-v-belt-for-ts4n5-compressor-belt-ts4
- 78 dba
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 15.5 CFM |
| Air Outlet Size | 1/2 in. NPT |
| Amperage | 21.5 Amp |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Reciprocating |
| Features | N/A |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 72 in. |
| Product Length | 28 in. |
| Product Weight | 435 lb. |
| Product Width | 30 in. |
| Pump Material | Cast iron |
| Tank Fill Time | 8.21 minutes from 0, 1.64 minutes from 135 |
| Tank Style | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | TS4N5 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 360 Questions
Newest questions
Q: Does oil come with compresser?
2 days ago0 Answers
Q: What's the outside diameter of the pulley on the electric motor?
11 days ago1 Answer
- A: Howdy neighbor! The factory electric motor pulley for the Ingersoll Rand TS4N5 compressor features an outside diameter of exactly 8.0 inches.6 days agoHelpful?
Q: Is it a single or a three phase electrical
16 days ago1 Answer
- A: This unit is 230/1/60 voltage so single thank you,16 days agoHelpful?
Q: Will a 30 amp breaker #10 wire work
23 days ago1 Answer
- A: Howdy neighbor! A 30 amp breaker and #10 wire will not work for this Ingersoll Rand compressor because the manufacturer explicitly requires a 40 amp breaker paired with #8 gauge wire to handle its 21.5-amp power draw.20 days agoHelpful?
Q: Will this run a d. A. Sander well.? Will i have to stop and wait for it to catch up?
28 days ago1 Answer
- A: Good Morning, You will need to refer to the required CFM rating of the DA sander you have and compare that to the CFM rating of the compressor. This unit is 15.8 CFM @ 90 psi and 15.5 CFM at the max psi of 175. thank you27 days agoHelpful?
Q: Do I need to have a starter relay for this unit? Or can an electrician hardwire it to a junction box that has a 30 amp breaker.
a month ago1 Answer
- AI-assistedA: No, this unit does not require a magnetic starter box. It can be hardwired by an electrician.a month agoHelpful?
Q: Does it come with a power cord
a month ago1 Answer
- A: No this unit is required to be hard wired, by a certified electrician. The voltage required is 230/1/60 thank you,a month agoHelpful?
Q: Is the motor able to run on single phase power?
a month ago1 Answer
- A: Yes this unit is 230/1/60 voltage thank you,a month agoHelpful?
Q: HOW MUCH DOES IT WEIGH?
a month ago1 Answer
- A: 435 lbsa month agoHelpful?
Q: Which Is the replacement bare pump for this compresor? TS4N5
2 months ago2 Answers
- A: It is Tractor Supply SKU# 1931413 / Ingersoll Rand Item # 22235923 Thank you,2 months agoHelpful?
1 - 10 of 360 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 360 Questions
Newest questions
Q: Does oil come with compresser?
2 days ago0 Answers
Q: What's the outside diameter of the pulley on the electric motor?
11 days ago1 Answer
- A: Howdy neighbor! The factory electric motor pulley for the Ingersoll Rand TS4N5 compressor features an outside diameter of exactly 8.0 inches.6 days agoHelpful?
Q: Is it a single or a three phase electrical
16 days ago1 Answer
- A: This unit is 230/1/60 voltage so single thank you,16 days agoHelpful?
Q: Will a 30 amp breaker #10 wire work
23 days ago1 Answer
- A: Howdy neighbor! A 30 amp breaker and #10 wire will not work for this Ingersoll Rand compressor because the manufacturer explicitly requires a 40 amp breaker paired with #8 gauge wire to handle its 21.5-amp power draw.20 days agoHelpful?
Q: Will this run a d. A. Sander well.? Will i have to stop and wait for it to catch up?
28 days ago1 Answer
- A: Good Morning, You will need to refer to the required CFM rating of the DA sander you have and compare that to the CFM rating of the compressor. This unit is 15.8 CFM @ 90 psi and 15.5 CFM at the max psi of 175. thank you27 days agoHelpful?
Q: Do I need to have a starter relay for this unit? Or can an electrician hardwire it to a junction box that has a 30 amp breaker.
a month ago1 Answer
- AI-assistedA: No, this unit does not require a magnetic starter box. It can be hardwired by an electrician.a month agoHelpful?
Q: Does it come with a power cord
a month ago1 Answer
- A: No this unit is required to be hard wired, by a certified electrician. The voltage required is 230/1/60 thank you,a month agoHelpful?
Q: Is the motor able to run on single phase power?
a month ago1 Answer
- A: Yes this unit is 230/1/60 voltage thank you,a month agoHelpful?
Q: HOW MUCH DOES IT WEIGH?
a month ago1 Answer
- A: 435 lbsa month agoHelpful?
Q: Which Is the replacement bare pump for this compresor? TS4N5
2 months ago2 Answers
- A: It is Tractor Supply SKU# 1931413 / Ingersoll Rand Item # 22235923 Thank you,2 months agoHelpful?
1 - 10 of 360 Questions
Similar Items
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
-
-
Customers Also Bought
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
Reviews
Summary of Reviews
This air compressor is powerful and reliable, quickly building and maintaining air pressure to run multiple tools simultaneously. It is described as relatively quiet and suitable for home workshops, s...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
Great Compresssor
10 years ago
I purchased this compressor 1.5 years ago. I have done everything from sand blasting to running impact wrenches to inflating large tractor tires. It has done great with no problems. I would recommend it.
58 people found this helpful
Show Reviews:
Most Helpful Critical Review
3 out of 5 stars.
Good - Not Great
14 years ago

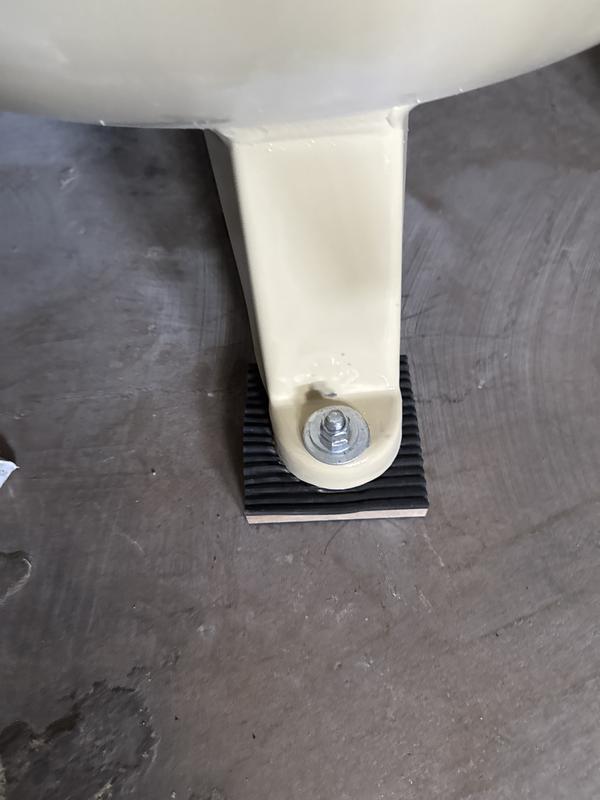

Bought this new a few days ago. Got the electric hooked up and got it leveled and bolted to floor. Could not find the break-in procedure in the manual, so I called IR and they said to run it 15 minute with no load. Two problems when running - the oil was milky/foam and the belt had a lot of play. After talking with IR tech service they said it was water/condensation in the oil. Had to change the oil 4 times to finally get all the water out and get the oil to look normal thru the sight glass. Finally was able to get the motor/pulley properly aligned and tightened per the manual - works fine now.
Phone conversations with IR tech service - easy to get thru to someone, knew the product, and very helpful.
Disappointed with having the two problems and spending money on the expensive oil plus the time and aggrevation. These problems were from initial startup and that simply should not happen.
I bought the TSC 4 year warranty - so hopefully I will be covered if there are any future problems.
This is the low end IR compressor and will probably be great for my hobby use and last a long time. However, if I were buying for everyday business use I would get something with a better motor and features. I knew the problems this model has had from looking at the reviews on the internet before I bought it. Its a big compressor that can handle just about everything for fixing and painting a car - at a great price.
Buy the warranty! It still cheaper than others.
Hope this helps someone.
72 people found this helpful
Show Reviews:

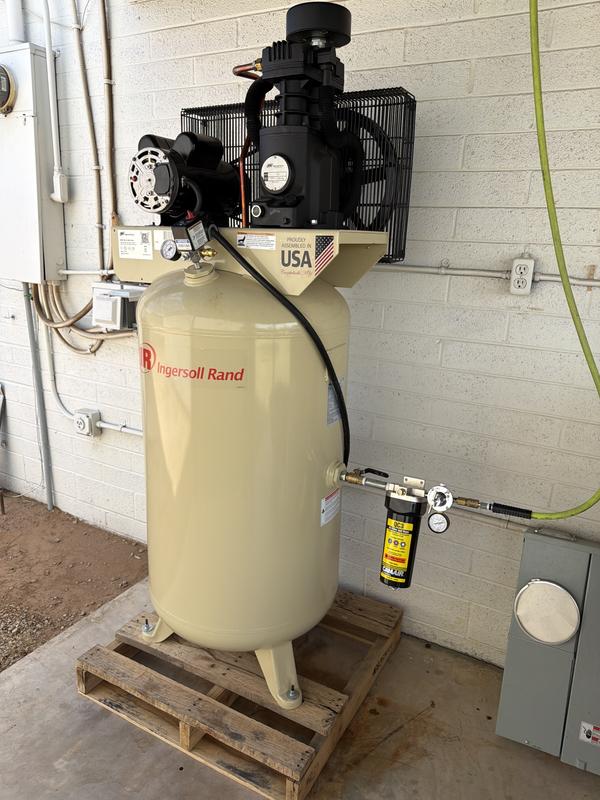

Customer Images and Videos
- purchase
- price
- satisfaction
- noise level
- quality
- installation
- large
- warranty
1 to 4 of 1757 Reviews .
1 – 4 of 1757 Reviews
Most Recent
Review 1
1 out of 5 stars.
Unreliable and cheap compressor
7 days ago

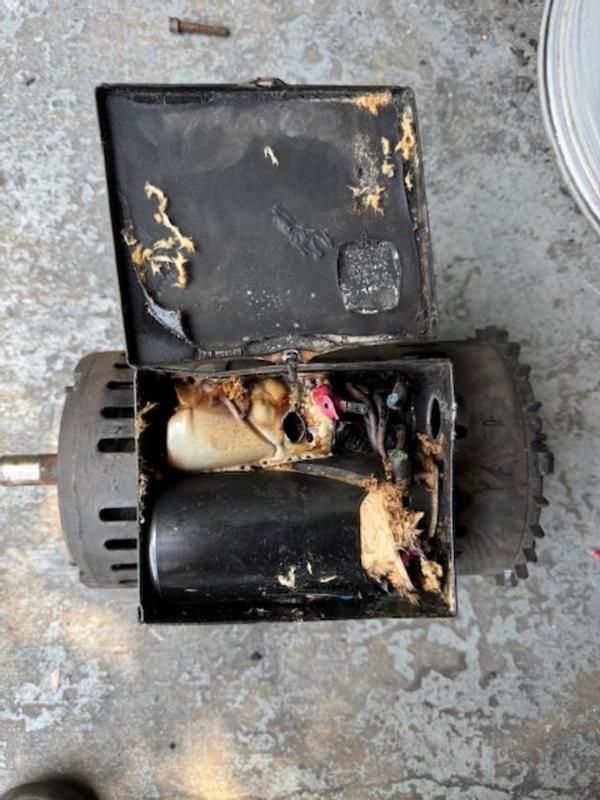

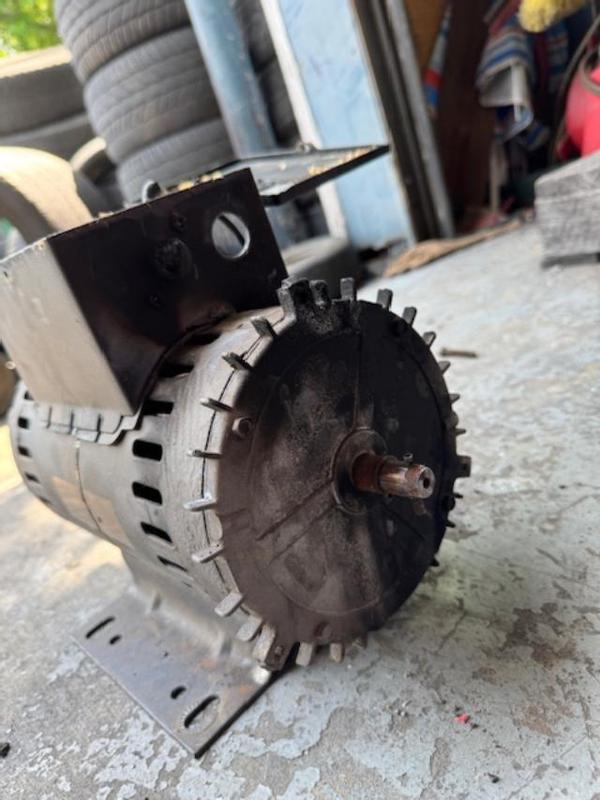

this crap didn’t even last me a month before giving out, advertised for “auto body” and sanding but it didn’t last. yes my electrian wired it up correctly but it still gave out, electric motor is no good and can’t handle the heat or simple use, stay away from this “reliable” compressor i’ve since gone ahead and gotten a “Mega Compressor” instead way better and quieter and cheaper
No, I do not recommend this product.
Review 1
5 out of 5 stars.
Buy it !
11 days ago
Great compressor. Quieter than expected. Recommend to anyone looking for a good compressor.
SweepstakesYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
Junk compressor Dont Buy!
26 days ago
I purchased this exact compressor 5 years ago from TSC in fenton. The pump and motor failed this week. I cant believe tsc or ingersoll rand wont do anything for me. A $1300 air compressor should rin for at least 10 years.
Fox Lake IL
Review 1
5 out of 5 stars.
Outstanding! Top of the line!
a month ago
This is one of the best Items and best customer service I have ever got! Lets start with shipping, Outstanding went above and beyond to make the delivery easy for me to get it into my garage. Next Setup wiring and using - setup was perfect easy to do, even my wife could have done it, wiring no problem 2 wires and a ground. Running all my air tools from a DA to a Air File you name it she runs it with out a problem even after making and installing my after cooler it even runs my sandblaster without a problem!
SweepstakesYes
Yes, I recommend this product.
