Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
$1,699.99
Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
Item # 3496129
Stocked & Ready
$1,699.99
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Add this item to unlock free delivery!
Notice:
This Item cannot be shipped to HI.Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Ingersoll Rand 5 hp 80 gal. 2-Stage Reciprocating Air Compressor, 175 PSI
Item # 3496129
Stocked & Ready
Buy Air Compressor Get 20% Off Air Compressor accessorie
$1,699.99
or
or
$65/mo.† suggested payments with 24 Months Financing or earn $77 in Rewards+ on this purchase.
Valid 11/02/2026 - 11/29/2026
Valid 11/02/2026 - 11/29/2026
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
This is a Big & Bulky item.
Notice:
This Item cannot be shipped to HI.Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Ingersoll Rand TS4N5 Reciprocating Air Compressor provides reliability and performance for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. The air compressor has a cast iron pump construction that provides trouble-free use for over 15,000 hours. The individually cast cylinders, overhung crankshaft and one piece connecting rod allow for easy maintenance of the reciprocating air compressor. Use of All Season Select synthetic lubricant in the air compressor allows for 2,000 hours of service between changeouts. Warranty coverage is available.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 5 HP electric-driven 230V 78db two-stage reciprocating air compressor
- 80 gal. ASME receiver tank
- 15.8 CFM @ 90 PSI
- Cast-iron construction of the air compressor extends the life of the pump over 15,000 hours
- Maximum operating pressure of reciprocating air compressor : 175 psig
- Individually cast cylinders, overhung crankshaft and one pc. connecting rod makes maintenance of the air compressor simple
- All Season Select synthetic lubricant increases efficiency with 2,000 hours of service between changeouts
- Extended Pump warranty with the purchase of an All-Season Select lubricant start-up kit. If used from the start the warranty on the pump goes from the standard 1 year to a 2 year warranty.
- 21.5 Full Load Amps, Recommended Breaker Amp Size 40, Recommended Wire Gauge<50 ft. 8 Gauge
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
- IR80 , IR 80 , #IR80 , Ingersoll Rand IR80 , IR-80
- 28Lx30Wx72H 435lbs
- Replacement belt available (sold separately) TSC SKU# 1335679 https://www.tractorsupply.com/tsc/product/ingersoll-rand-v-belt-for-ts4n5-compressor-belt-ts4
- 78 dba
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 15.5 CFM |
| Air Outlet Size | 1/2 in. NPT |
| Amperage | 21.5 Amp |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Reciprocating |
| Features | N/A |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 72 in. |
| Product Length | 28 in. |
| Product Weight | 435 lb. |
| Product Width | 30 in. |
| Pump Material | Cast iron |
| Tank Fill Time | 8.21 minutes from 0, 1.64 minutes from 135 |
| Tank Style | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | TS4N5 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 379 Questions
Newest questions
Q: Will this compressor work with a 30 amp breaker
5 days ago1 Answer
- A: The recommended breaker for this unit is a 40amp breaker and 8 Gauge wire <50 feet. Please reach out directly to our Air Compressor Technical team for any further wiring questions. They can be reached at AirPs@irco.com or 800-247-7378 thank you,2 days agoHelpful?
Q: Does this unit need to be hard wired or can heavy duty plug be used?
7 days ago1 Answer
- A: This unit needs to be hardwired by a certified electrician. If you have any other technical related questions regarding this please reach out directly to our Air Compressor Technical team who can be reached at AirPs@irco.com or 800-247-7378 thank you,7 days agoHelpful?
Q: can i run this compressor bolted on a palet?
12 days ago1 Answer
- A: No, you cannot run your Ingersoll Rand 5 HP 80-gallon air compressor while it is bolted to a shipping pallet.10 days agoHelpful?
Q: Has anyone tried running this air compressor with a 13,0000 watt generator? If so did you have any issues with the air compressor tripping any circuit breakers? I am looking at putting a soft start option in line and was looking for some input.
15 days ago1 Answer
- A: Please reach out directly to our technical team for this question. They can be reached at AirPs@irco.com or 800-247-7378 thank you14 days agoHelpful?
Q: How many amps does it take to start up the air compressor?
16 days ago1 Answer
- A: This unit uses 21.5 full load amps Thank you15 days agoHelpful?
Q: How do I order a new pressure switch
17 days ago1 Answer
- A: You can purchase the replacement pressure switch for this unit either in a Tractor Supply Store or online. The TSC SKU# for this is 1076471. Below is the link to the product on the Tractor Supply Website. https://www.tractorsupply.com/tsc/product/ingersoll-rand-pressure-switch-for-2-stage-compressor-1076471 Thank you13 days agoHelpful?
Q: What pressure does it kick on and what pressure does it kick off
29 days ago1 Answer
- AI-generated, Human-approvedA: This air compressor is factory set to kick on at 135 psi and shut off once it reaches 175 psi. It will continue to cycle between these two pressures while in use.28 days agoHelpful?
Q: What is the footprint
29 days ago1 Answer
- A: It is approx. 26" across from the center of the holes used to bolt the unit down. Thank you,26 days agoHelpful?
Q: Does this have a standard plug in? Or is it a 220 plug?
a month ago1 Answer
- AI-generated, Human-approvedA: No, this unit does not have a standard plug. It is a 230V electric-driven compressor that requires a recommended 40 amp breaker and 8 gauge wire for installation.a month agoHelpful?
Q: What are the filter regulator specs suggested? Inlet size,cfm,psi?
a month ago1 Answer
- AI-generated, Human-approvedA: It is suggested to use a 1/2-inch filter, regulator, and lubricator combo to maintain high volume output. Reviewers specifically recommend an ARO 1/4-inch or 3/8-inch regulator that can handle the 175 psi input to ensure adequate CFM delivery.a month agoHelpful?
1 - 10 of 379 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 379 Questions
Newest questions
Q: Will this compressor work with a 30 amp breaker
5 days ago1 Answer
- A: The recommended breaker for this unit is a 40amp breaker and 8 Gauge wire <50 feet. Please reach out directly to our Air Compressor Technical team for any further wiring questions. They can be reached at AirPs@irco.com or 800-247-7378 thank you,2 days agoHelpful?
Q: Does this unit need to be hard wired or can heavy duty plug be used?
7 days ago1 Answer
- A: This unit needs to be hardwired by a certified electrician. If you have any other technical related questions regarding this please reach out directly to our Air Compressor Technical team who can be reached at AirPs@irco.com or 800-247-7378 thank you,7 days agoHelpful?
Q: can i run this compressor bolted on a palet?
12 days ago1 Answer
- A: No, you cannot run your Ingersoll Rand 5 HP 80-gallon air compressor while it is bolted to a shipping pallet.10 days agoHelpful?
Q: Has anyone tried running this air compressor with a 13,0000 watt generator? If so did you have any issues with the air compressor tripping any circuit breakers? I am looking at putting a soft start option in line and was looking for some input.
15 days ago1 Answer
- A: Please reach out directly to our technical team for this question. They can be reached at AirPs@irco.com or 800-247-7378 thank you14 days agoHelpful?
Q: How many amps does it take to start up the air compressor?
16 days ago1 Answer
- A: This unit uses 21.5 full load amps Thank you15 days agoHelpful?
Q: How do I order a new pressure switch
17 days ago1 Answer
- A: You can purchase the replacement pressure switch for this unit either in a Tractor Supply Store or online. The TSC SKU# for this is 1076471. Below is the link to the product on the Tractor Supply Website. https://www.tractorsupply.com/tsc/product/ingersoll-rand-pressure-switch-for-2-stage-compressor-1076471 Thank you13 days agoHelpful?
Q: What pressure does it kick on and what pressure does it kick off
29 days ago1 Answer
- AI-generated, Human-approvedA: This air compressor is factory set to kick on at 135 psi and shut off once it reaches 175 psi. It will continue to cycle between these two pressures while in use.28 days agoHelpful?
Q: What is the footprint
29 days ago1 Answer
- A: It is approx. 26" across from the center of the holes used to bolt the unit down. Thank you,26 days agoHelpful?
Q: Does this have a standard plug in? Or is it a 220 plug?
a month ago1 Answer
- AI-generated, Human-approvedA: No, this unit does not have a standard plug. It is a 230V electric-driven compressor that requires a recommended 40 amp breaker and 8 gauge wire for installation.a month agoHelpful?
Q: What are the filter regulator specs suggested? Inlet size,cfm,psi?
a month ago1 Answer
- AI-generated, Human-approvedA: It is suggested to use a 1/2-inch filter, regulator, and lubricator combo to maintain high volume output. Reviewers specifically recommend an ARO 1/4-inch or 3/8-inch regulator that can handle the 175 psi input to ensure adequate CFM delivery.a month agoHelpful?
1 - 10 of 379 Questions
Similar Items
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Reviews
- purchase
- price
- satisfaction
- noise level
- quality
- installation
- large
- warranty
1 to 4 of 1770 Reviews .
1 – 4 of 1770 Reviews
Most Recent
Review 1
1 out of 5 stars.
Non existent quality control
19 days ago
IR quality control must be basically none existent with this compressor. Bought one about a month ago and just finally got it hooked up a couple days ago. On first pressure up discovered the drain valve at the bottom of the tank leaking. Fixed this and now the fitting in the top of the tank is leaking. So now I get to do more work in a compressor that cost over $1500. Overall I’m incredibly unimpressed with this compressor and haven’t even used it to run a single tool yet.
Va
Review 1
1 out of 5 stars.
Junk
a month ago

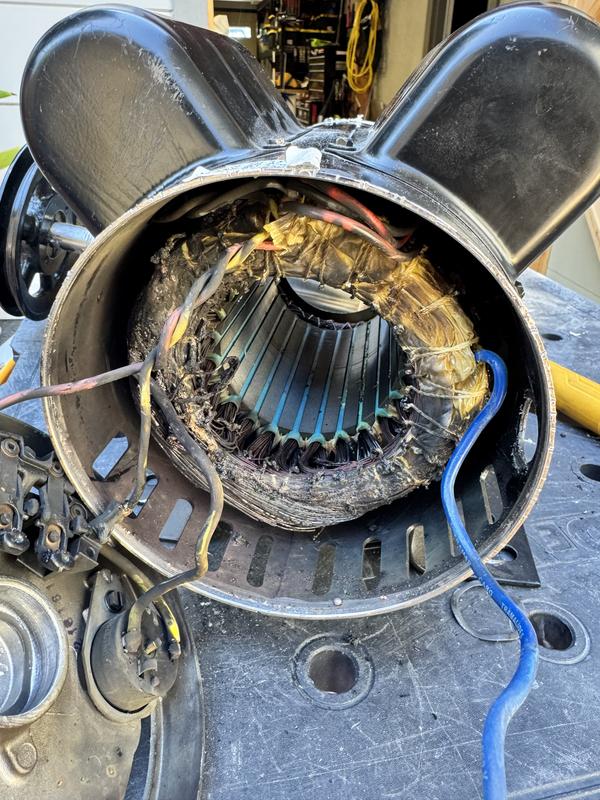

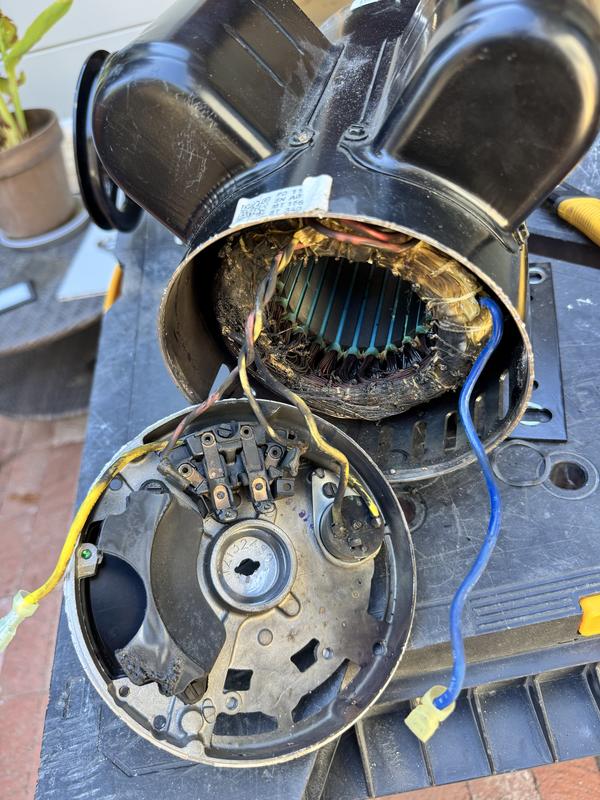

Ingersoll rand definitely not the quality they used to be. Didn’t even last 3 weeks. Motor wouldn’t turn or start up same problems from other reviews but I thought I’d take the chance. Mistake
No, I do not recommend this product.
Lubbock Texas
Review 1
5 out of 5 stars.
Great Value
a month ago
Greta compressor for a great price!
SweepstakesYes
Yes, I recommend this product.
Reviews 2
5 out of 5 stars.
Works great
a month ago
Bought one of these for my shop at work several years ago. Its been very quiet compared to our last compressor. Now ive bought a second one for my personal shop.
SweepstakesYes
