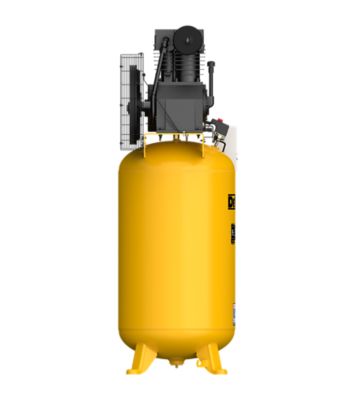

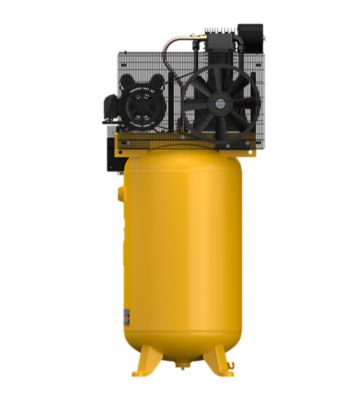

DEWALT 7.5 hp 80 gal, Industrial Duty 2 Stage Air Compressor High Max Pressure & High Flow
DEWALT 7.5 hp 80 gal, Industrial Duty 2 Stage Air Compressor High Max Pressure & High Flow
4.037 Reviews
Item # 1674010
Buy Air Compressor Get 20% Off Air Compressor accessorie
Neighbor’s Club Members earn points with purchases.
DEWALT 7.5 hp 80 gal, Industrial Duty 2 Stage Air Compressor High Max Pressure & High Flow
4.037 Reviews
Item # 1674010
Buy Air Compressor Get 20% Off Air Compressor accessorie
Neighbor’s Club Members earn points with purchases.
The DEWALT 80 gal. Industrial Duty, 2 stage Air Compressor mates high max pressure (175 max PSI) with high air flow (22.1 SCFM @ 100 PSI) for extreme air tool usage versatility, providing enough power to operate more than one tool at a time. Its powerful 7.5 HP industrial class, 4 pole induction motor provides higher torque vs traditional 2 pole motors, and enables operation with up to 50% lower RPM's. The pre-wired magnetic starter with robust motor contacts provides industrial class starting capability, and longer system life. Install this powerhouse into your work area, wire it up and get to work. Limited Warranty: 2 Year Pump, 1 Year All Other Parts.Limited Warranty: 2 Year Pump, 1 Year All Other Parts
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Extreme Long Life & Heavy Duty Durability
- Industrial Duty, Two Stage, Cast Iron Pump
- Heavy Duty Air Tool Versatility
- 80 Gallon Tank w High Max Pressure (175 PSI) and High Flow (22.1 SCFM @ 100 PSI)
- High Torque Industrial Class 4 Pole Motor Enables Extreme Loads with up to 50% lower RPMs vs Typical 2 Pole Motors
- Stronger Starting Capability Pre Wired Magnetic Starter
- Robust Motor Contacts Provides Strong Starting Capability and Longer System Life
| Brand | DEWALT |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 22.1 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 31A |
| Compressor Horsepower | 7.5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Belt |
| Features | Equipped with pre-wired and mounted magnetic starter |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Cast Iron |
| Product Height | 73.5 in. |
| Product Length | 43 in. |
| Product Weight | 510 lb. |
| Product Width | 33 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 53 oz. |
| Stage Type | Two-Stage |
| Tank Fill Time | 5 minutes |
| Tank Style | Vertical |
| Warranty | Limited Warranty: 2 Year Pump,1 Year All Other Parts |
| Manufacturer Part Number | DXCM804 |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Newest questions
Q: Can it run on 208 volts?
a month ago1 Answer
- A: Thank you for your question. This compressor is specified in the manual for 230V single-phase power at 31 amps. Since there is no listing for 208V operation, compatibility with 208V cannot be confirmed. We recommend reaching out to DeWalt directly for more information.a month agoHelpful?
Q: Is this unit single phase or 3 phase
2 months ago1 Answer
- AI-generatedA: This unit is a single phase air compressor. It operates on 230V at 60Hz.2 months agoHelpful?
Q: How quite is this Air Compressor
3 months ago1 Answer
- A: The DEWALT 7.5 HP 80 Gal. Industrial Duty 2-Stage Air Compressor is rated at 84 decibels (dBA). While it is quieter than many traditional oil-less compressors, it is still an industrial-grade machine that is described by users as being quite loud during operation.3 months agoHelpful?
Q: What type oil is recommended for this compressor?
6 months ago1 Answer
- A: Hello, thank you for your question. This compressor requires full‑synthetic, non‑detergent air‑compressor oil. Regular motor oil should not be used. The unit ships with the correct oil, and any future top‑offs or changes should use a compressor‑rated synthetic oil.6 months agoHelpful?
Q: Why does Dewalt not recognise this model #? DXCM804
9 months ago1 Answer
- A: Hello, thank you for your question. DXCM804 seems to be a retailer-specific SKU. The official DEWALT model for this compressor is DXCMV7518075. We would recommend reaching out to DeWALT directly for more information. ***DEWALT*** https://support.dewalt.com/hc/en-us/requests/new 800-433-9258 / 8:00 am - 6:00 pm (M-F)8 months agoHelpful?
Q: What brand of motor is used on this model?
9 months ago1 Answer
- A: Hello, thank you for your question. It has a Baldor motor.8 months agoHelpful?
Q: Noise rating?
10 months ago1 Answer
- A: Hello, thank you for your question. The noise level is rated at 84 dB.10 months agoHelpful?
Q: The owners manual recommends mounting on vibration pads. There are many different ones out there. Can you recommend one?
a year ago1 Answer
- A: Hello, Thank you for your question. DeWalt does not currently make a vibration pad set for this item and we do not currently have a set available at TSC. Consider searching google as there are several options available that will work well. Most measure 4" x 4" with a center hole for anchoring your compressor.a year agoHelpful?
Q: what are the full dimensions of the product? H/L/W/D
a year ago1 Answer
- A: Hello, Thank you for your question. The dimensions are 43" (L) x 33" (W) x 73.5" (H), and it weighs 510 lb.a year agoHelpful?
Q: Is this unit 3 phase wiring?
a year ago1 Answer
- A: Here is what is listed in the online owner's manual. I've included the link to the manual below. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/67/40/10/1674010_Man1.pdf 230V, 60Hz, Single Phase AC only, 31 Ampsa year agoHelpful?
