Ingersoll Rand 7.5 hp 80 gal. 2-Stage Air Compressor, 175 PSI
$3,959.99
Ingersoll Rand 7.5 hp 80 gal. 2-Stage Air Compressor, 175 PSI
Ingersoll Rand 7.5 hp 80 gal. 2-Stage Air Compressor, 175 PSI
Item # 345227299
$3,959.99
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Ingersoll Rand 7.5 hp 80 gal. 2-Stage Air Compressor, 175 PSI
Item # 345227299
Buy Air Compressor Get 20% Off Air Compressor accessorie
$3,959.99
or
or
$76/mo.† for 48 months at 0% APR or earn $179 in Rewards+ on this purchase.
Valid 8/24/2026 - 9/7/2026
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Bring industrial strength power to your home with the Ingersoll Rand Two-Stage Air Compressor. Ingersoll Rand, the world leader in air power, is bringing the power to you to tackle any project you may have with the two-stage air compressor. Whether it's inflating tires, powering air tools, or blowing glass, this air compressor will give you what you need for any task. The air compressor has a durable cast iron pump that is designed to provide 15,000 hours of trouble-free use.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Durable cast iron pump is designed for over 15,000 hours of trouble-free use
- Air compressor delivers non-stop performance and reliability
- 7.5 HP
- 80 gal. ASME receiver tank
- 1 year warranty
- All Season Select synthetic lubricant increases efficiency of the air compressor with 2,000 hours of service between changeouts
- Maximum operating pressure of the two-stage air compressor: 175 psig

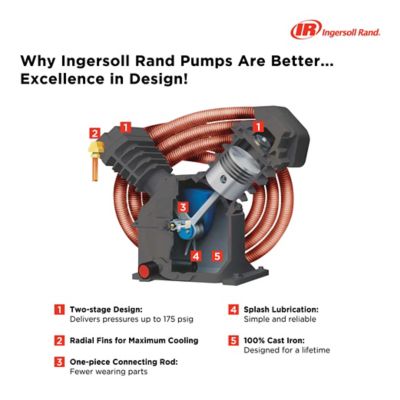

- Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplify maintenance and service of the two-stage air compressor
- Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
- 28Lx38Wx70H 585lbs
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 24 CFM |
| Air Outlet Size | 0.25 in. |
| Amperage | 32 Amp |
| Compressor Horsepower | 7.5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | 1 Phase - Electrical Vertical Tank Mounted 7.50 HP - Air Compressor Stationary Air Compressor, 80 gal. |
| Features | The air compressor has a durable cast iron pump that is designed to provide 15,000 hours of trouble-free use. |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 70 in. |
| Product Length | 28 in. |
| Product Weight | 585 lb. |
| Product Width | 38 in. |
| Pump Material | Cast iron |
| Tank Fill Time | 0 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year |
| Manufacturer Part Number | 2475N7.5 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 101 Questions
Newest questions
Q: How many amps for breaker
8 days ago1 Answer
- A: Full Load Amperage is 32 Amp for this unit.6 days agoHelpful?
Q: What comes with it. What is needed to install and run?
13 days ago2 Answers
- A: This unit comes with what you need for the initial startup. You would need to have it direct wired into your workplace by a certified electrician as it does not come with the wiring or breakers etc. as every installation is unique. You can also purchase separately the 2yr Warranty Startup Kit TSC# 2445775 which you can read about here: https://www.tractorsupply.com/tsc/product/ingersoll-rand-2-year-warranty-kit-2200-2340-2475-ts4 Purchase the warranty kit to receive a 2-year bumper-to-bumper compressor warranty and a 5-year tank warranty Kit provides enough Ingersoll Rand All Season Select synthetic lubricant and air filter elements for 2 years of operation A synthetic, all-temperature blend designed oil increases efficiency, reduces wear, and prevents carbon build-up Replacement air filter elements prevent harmful contaminants from entering the compressor Included Components: 1L of All Season Select Lubricant (4), Air Filter Element (2), Mounting Hardware/Instructions, Warranty Registration Insert, and a Product Datasheet MSDS11 days agoHelpful?
Q: Is it 220 volts
a month ago1 Answer
- A: Hi, thanks for the question. At Ingersoll Rand, 220V and 230V are used interchangeable and the service factor on the motor allows for this. 230V is detailed in the specifications tab under the product listing.a month agoHelpful?
Q: Wiring diagram
a month ago1 Answer
- A: Please reach out directly to our technical team for all wiring and electrical questions. They can be reached at 1-800-247-7378 or AirPS@irco.com thank you,a month agoHelpful?
Q: How many cfm delivered
a month ago1 Answer
- A: Thanks for reaching out! The IR 2475N7.5 delivers 24 cfm. Additonal specs can be found in the specifications tab under the product images.a month agoHelpful?
Q: Is this ready to run when purchased? Is the pressure switch already installed?
2 months ago1 Answer
- A: Howdy neighbor! No, the Ingersoll Rand 7.5 HP 80-Gallon 2-Stage Air Compressor is not ready to run straight out of the box when purchased, but the pressure switch is already factory-installed.2 months agoHelpful?
Q: Can the wiring on the motor be changed for 460 3-phase?
6 months ago1 Answer
- A: Please reach out directly to our technical team on wiring questions. They can be reached at 1-800-247-7378. thank you,6 months agoHelpful?
Q: what is tank dimensions on 80 gallon vertical
8 months ago1 Answer
- A: Hello, thank you for your question. The tank dimensions for the 80‑gallon upright model are approximately: 26 in. (length) × 38 in. (width) × 70 in. (height).7 months agoHelpful?
Q: Can I use 10/3 wire on this Air compressor?
8 months ago1 Answer
- A: For this unit we recommend 8 Gauge wire <50 Feet with a 30 Amp Breaker Size. If you have further wiring questions please reach out directly to our technical team at 800-247-7378 thank you,8 months agoHelpful?
Q: whats the recovery time on air supply? how long from 0 to 175 psi?
10 months ago1 Answer
- A: 5.31 minutes from 0-175 psi Thank you,10 months agoHelpful?
1 - 10 of 101 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 101 Questions
Newest questions
Q: How many amps for breaker
8 days ago1 Answer
- A: Full Load Amperage is 32 Amp for this unit.6 days agoHelpful?
Q: What comes with it. What is needed to install and run?
13 days ago2 Answers
- A: This unit comes with what you need for the initial startup. You would need to have it direct wired into your workplace by a certified electrician as it does not come with the wiring or breakers etc. as every installation is unique. You can also purchase separately the 2yr Warranty Startup Kit TSC# 2445775 which you can read about here: https://www.tractorsupply.com/tsc/product/ingersoll-rand-2-year-warranty-kit-2200-2340-2475-ts4 Purchase the warranty kit to receive a 2-year bumper-to-bumper compressor warranty and a 5-year tank warranty Kit provides enough Ingersoll Rand All Season Select synthetic lubricant and air filter elements for 2 years of operation A synthetic, all-temperature blend designed oil increases efficiency, reduces wear, and prevents carbon build-up Replacement air filter elements prevent harmful contaminants from entering the compressor Included Components: 1L of All Season Select Lubricant (4), Air Filter Element (2), Mounting Hardware/Instructions, Warranty Registration Insert, and a Product Datasheet MSDS11 days agoHelpful?
Q: Is it 220 volts
a month ago1 Answer
- A: Hi, thanks for the question. At Ingersoll Rand, 220V and 230V are used interchangeable and the service factor on the motor allows for this. 230V is detailed in the specifications tab under the product listing.a month agoHelpful?
Q: Wiring diagram
a month ago1 Answer
- A: Please reach out directly to our technical team for all wiring and electrical questions. They can be reached at 1-800-247-7378 or AirPS@irco.com thank you,a month agoHelpful?
Q: How many cfm delivered
a month ago1 Answer
- A: Thanks for reaching out! The IR 2475N7.5 delivers 24 cfm. Additonal specs can be found in the specifications tab under the product images.a month agoHelpful?
Q: Is this ready to run when purchased? Is the pressure switch already installed?
2 months ago1 Answer
- A: Howdy neighbor! No, the Ingersoll Rand 7.5 HP 80-Gallon 2-Stage Air Compressor is not ready to run straight out of the box when purchased, but the pressure switch is already factory-installed.2 months agoHelpful?
Q: Can the wiring on the motor be changed for 460 3-phase?
6 months ago1 Answer
- A: Please reach out directly to our technical team on wiring questions. They can be reached at 1-800-247-7378. thank you,6 months agoHelpful?
Q: what is tank dimensions on 80 gallon vertical
8 months ago1 Answer
- A: Hello, thank you for your question. The tank dimensions for the 80‑gallon upright model are approximately: 26 in. (length) × 38 in. (width) × 70 in. (height).7 months agoHelpful?
Q: Can I use 10/3 wire on this Air compressor?
8 months ago1 Answer
- A: For this unit we recommend 8 Gauge wire <50 Feet with a 30 Amp Breaker Size. If you have further wiring questions please reach out directly to our technical team at 800-247-7378 thank you,8 months agoHelpful?
Q: whats the recovery time on air supply? how long from 0 to 175 psi?
10 months ago1 Answer
- A: 5.31 minutes from 0-175 psi Thank you,10 months agoHelpful?
1 - 10 of 101 Questions
Similar Items
-
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Top Rated
Reviews
- purchase
- price
- satisfaction
- quality
- large
- staff
- performance
- noise level
1 to 4 of 243 Reviews .
1 – 4 of 243 Reviews
Most Recent
Krugerville, TX
Review 1
5 out of 5 stars.
I love it!
3 months ago
Although the compressor is meant to be mounted inside I built a protective roof top over the top of it to protect my investment from the weather. Being that it is outside and covered it does not void my warranty. It remains cooler since it gets plenty of fresh air. The reason I chose this compressor is it will stay up with me when sandblasting or using some of my pneumatic tools. The 24 scam output is awesome and the two stage compressor gets me to 175 pig within a few minutes. I was going to carry the compressor with my neighbors tractor to its concrete pad but my electrician had four guys roll it around on a dolly! I do not recommend doing that but they wanted to see it run as much as I did. It took a fourty amp-240 volt breaker with 8 awg wiring. We put the oil in it then turned on the power! It ran smooth and quiet. All my neighbors are jealous! One thing I did not like is the regulator and filter offered for this compressor is under rated when it comes to pressure rating which was only 150 psig maximum so I purchased one separately from another vendor.
SweepstakesYes
Yes, I recommend this product.
College Station, TX
Review 1
5 out of 5 stars.
Fast Service
6 months ago
Needed replacement compressor in an emergency, ordered it online then drove to the College Station store and they had it ready to go. Awesome service!
Yes, I recommend this product.
Tekoa WA
Review 1
5 out of 5 stars.
Great compressor
a year ago
Only store in town that had this compressor, or one like it's specifications. The compressor is actually a lot quieter than I was expecting, quieter than a different 80 gallon twin compressor I have in another shop. Very satisfied with this purchase and quality.
SweepstakesYes
Yes, I recommend this product.
Review 1
2 out of 5 stars.
Used item
2 years ago

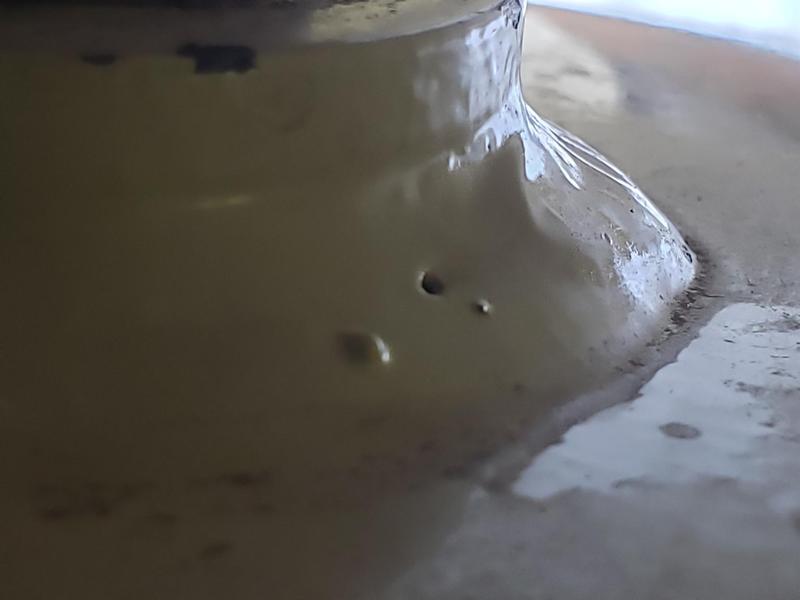

Item was used not brand new. We find out after installing it was leaking
