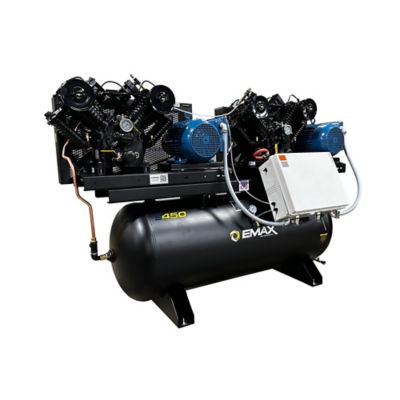

EMAX 7.5 HP 120 gal. 2-Stage Horizontal Stationary Air Compressor, NEMA 4 Rated DUPLEX, V4, 62CFM, 1PH
Item # 256403299
Neighbor’s Club Members earn points with purchases.
EMAX 7.5 HP 120 gal. 2-Stage Horizontal Stationary Air Compressor, NEMA 4 Rated DUPLEX, V4, 62CFM, 1PH
Item # 256403299
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
EMAX NEMA 4 rated Compliant Weather Resistant DUPLEX (2 electric Industrial motors, 2 Industrial Solid Cast Iron pumps). 7.5 HP, 240 VOLT, V4 pump with Easy spin on/off oil filter. Powerful 62 CFM, 1- Phase 2-Stage 120 Gallon Horizontal Stationary ASME rated tank. Approved in all 50 states, up to 200 PSI. . High quality Pressure Lubricated SOLID cast iron Pump, Isolator Pads, Belt Tensioner, Auto tank Drain, alternating switch. NEMA 4 Rated! Waterproof Enclosure for all weather application. Provides protection against windblown dust, rain, splashing water, & hose-directed water, as well as damage from external ice formation, making it suitable for both indoor and outdoor use. Up to 60,000 pump life hours with proper maintenance. Warranty includes 1 Year Standard, 5 Year Extended, Eligible Lifetime Extended with maintenance kit. MADE IN USA1 Year Standard, 5 Year Extended, Eligible Lifetime Extended with maintenance kit
- NEMA 4 rated!- Provides protection against windblown dust, rain, splashing water, & hose-directed water, as well as damage from external ice formation, making it suitable for both indoor and outdoor use.
- NEMA 4: https://www.nemaenclosures.com/enclosure-ratings/nema-rated-enclosures/nema-4-enclosures.html
- (Two) V4 Pressure lubricated SOLID cast iron pumps
- Tank size: 120 Gallon Horizontal
- Pump oil capacity: 2 quarts per pump
- 62 CFM @ 100 PSI
- Max PSI: 175
- Product dimensions: 96" x 42" x 64" (LxWxH)
- Product weight: 1650 lbs
- 1.2 Service Factor on NEMA 4 Industrial electric motor
- Alternating Switch
- MADE IN USA
- ASME Approved Solid steel air Tank in all 50 states. Rated up to 200 PSI
- Includes: Isolator Pads, Belt Tensioner, Auto Drain, alternating switch, ASME tank
- Up to 60,000 pump life hours with proper maintenance
- Solid Cast Iron Crankcase (not aluminum) with oil sight glass
- Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
- Industrial Electric Motor low RPM: 1750
- Industrial Pump low RPM: 640
- (Two) 7.5HP, 240V, 1Phase Industrial Electric motors
- Easy Spin on oil filter
