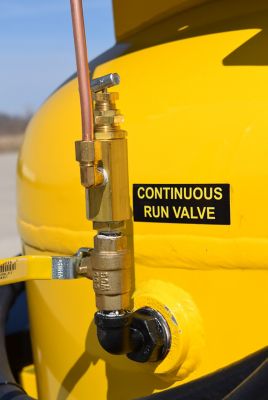

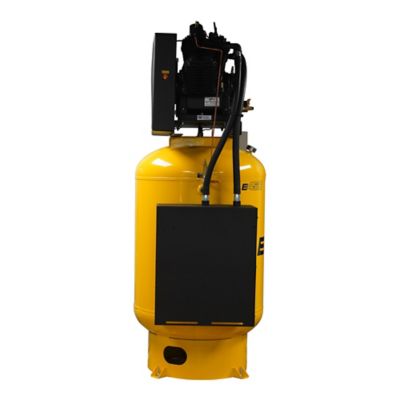

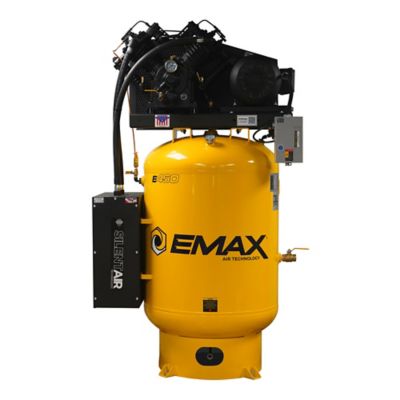

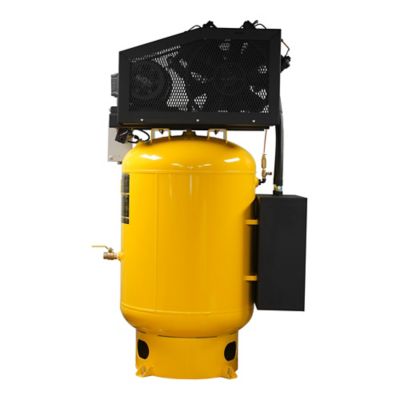

This EMAX 7.5 HP 120 gal. 2 stage 3 Phase Pressure lubricated pump Plus SILENT Air Compressor is a 2-stage V4 pressure lubricated Solid cast iron pump, 120 Gallon vertical tank, electric piston powered and designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This EMAX SILENT air compressor delivers 31 CFM at 100 PSI, top PSI of 175. Our unit features LOW rpm 1750 industrial electric motors, magnetic starter, automatic tank drain, powder coated ASME tank max 200 PSI rating, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The patented SILENT air silencer dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It's backed by the best warranty in the industry!
Specification | Description |
---|---|
Brand | EMAX |
Country of Origin | Made in USA |
Air Delivery SCFM At 90 PSI | 31 CFM 100 PSI |
Airflow Volume | 31 CFM |
Air Outlet Size | 1 in. |
Amperage | 18 Amp 208,230 V - 9 Amp 460 VOLT optional |
Compressor Horsepower | 7.5 HP |
Compressor Maximum PSI | 175 PSI |
Compressor Operation | Dual control |
Compressor Tank Capacity | 120 gal |
Compressor Type | Vertical |
Compressor Voltage | 208V/230V/460V |
Connection Type | NPT |
Drain System | Electric Auto tank drain |
Drive Type | Electric Motor belt drive |
Features | Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented SILENT Air System noise suppression system |
Fuel Tank Capacity | N/A |
Maximum RPM | 640 Pump RPM |
Phase | Triple |
Nozzle Fitting Size | Tank outlet size 1 in. |
Number Of Power Speeds | Variable |
Number Of Wheels | 0 |
Power Type | Electric |
Primary Color | Yellow |
Primary Material | Steel |
Product Height | 78 in. |
Product Length | 41 in. |
Product Weight | 1020 lb. |
Product Width | 43 in. |
Pump Life | 70,000 hours |
Pump Material | Cast iron |
Pump Oil Capacity | 2.5 qt. |
Stage Type | Two-Stage |
Tank Fill Time | 4.5 minutes |
Tank Orientation | Vertical |
Warranty | 1 Year Standard Warranty, 5 Year Extended, Eligible Extended Lifetime Pump Warranty with maintenance kit |
Manufacturer Part Number | ESP07V120V3 |
