Ingersoll Rand 7.5 hp 80 gal. 2-Stage Premium Package Air Compressor, 175 PSI, 230V, 1-Phase
Online Only
Ingersoll Rand 7.5 hp 80 gal. 2-Stage Premium Package Air Compressor, 175 PSI, 230V, 1-Phase
Item # 1072757
$4,429.99
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Online Only
Ingersoll Rand 7.5 hp 80 gal. 2-Stage Premium Package Air Compressor, 175 PSI, 230V, 1-Phase
Item # 1072757
Buy Air Compressor Get 20% Off Air Compressor accessorie
$4,429.99
or
or
$132/mo.† for 36 months totaling $4752 at 3.99% APR or earn $221 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Power air tools with the Ingersoll Rand Ingersoll Rand 2475N7.5-P Premium Package 230V-1Ph 2-stage Air Compressor. This air compressor is designed for use in commercial, automotive and light industrial applications. The pump in the 2-stage air compressor is made from cast-iron for durability and is oil-lubricated. The air compressor has an automatic stop control with a NEMA 1 pressure switch for safe use. Backed by a 1 year limited warranty.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 1 year limited warranty/2 year limited pump warranty with use of IR synthetic lubricant
- ASME coated 80 gal. tank in the air compressor
- 24 CFM @ 175 PSI
- Oil-lubricated cast-iron pump in the air compressor is designed for heavy-duty applications
- Premium package includes air cooled aftercooler, auto drain valve and low oil protection switch
- Designed to run at high volumes and high pressure without interruption
- For use with commercial, automotive and light industrial applications with intermittent load demands
- ODP electric motor powers the 2-stage air compressor
- Automatic stop control on the 2-stage air compressor with a NEMA 1 pressure switch
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 24 CFM |
| Air Outlet Size | 1/2 in. |
| Amperage | 32 Amp |
| Compressor Horsepower | 7.5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Recip |
| Features | Magnetic Starter |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 70 in. |
| Product Length | 38 in. |
| Product Weight | 611 lb. |
| Product Width | 24 in. |
| Pump Material | Cast iron |
| Tank Style | Vertical |
| Warranty | 1 Year |
| Manufacturer Part Number | 45465523 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: How many amp draw is the motor
a year ago1 Answer
- A: Hi there, 40 AMPa year agoHelpful?
Q: What is amperage requirements?
2 years ago1 Answer
- A: Hi there, 40 A2 years agoHelpful?
Q: Will a 30 amp breaker operate this compressor sufficiently ?
3 years ago1 Answer
- A: Hi, For such a specific question, please reach out to Ingersoll Rand directly at **INGERSOLL RAND** https://www.ingersollrand.com/en-us/air-compressor/modals/contact Chat on their website or call Phone: (800) 956-0333 8:00 a.m. and 5:00 p.m. Pacific Standard Time, Monday through Friday (except for holidays)3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: How many amp draw is the motor
a year ago1 Answer
- A: Hi there, 40 AMPa year agoHelpful?
Q: What is amperage requirements?
2 years ago1 Answer
- A: Hi there, 40 A2 years agoHelpful?
Q: Will a 30 amp breaker operate this compressor sufficiently ?
3 years ago1 Answer
- A: Hi, For such a specific question, please reach out to Ingersoll Rand directly at **INGERSOLL RAND** https://www.ingersollrand.com/en-us/air-compressor/modals/contact Chat on their website or call Phone: (800) 956-0333 8:00 a.m. and 5:00 p.m. Pacific Standard Time, Monday through Friday (except for holidays)3 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
Items You May Like
-
Top Rated
-
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Customers Also Bought
-
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
Reviews
1 to 2 of 5 Reviews .
1 – 2 of 5 Reviews
Most Recent
Pacific Northwest
Review 1
1 out of 5 stars.
Broken on arrival
4 months ago

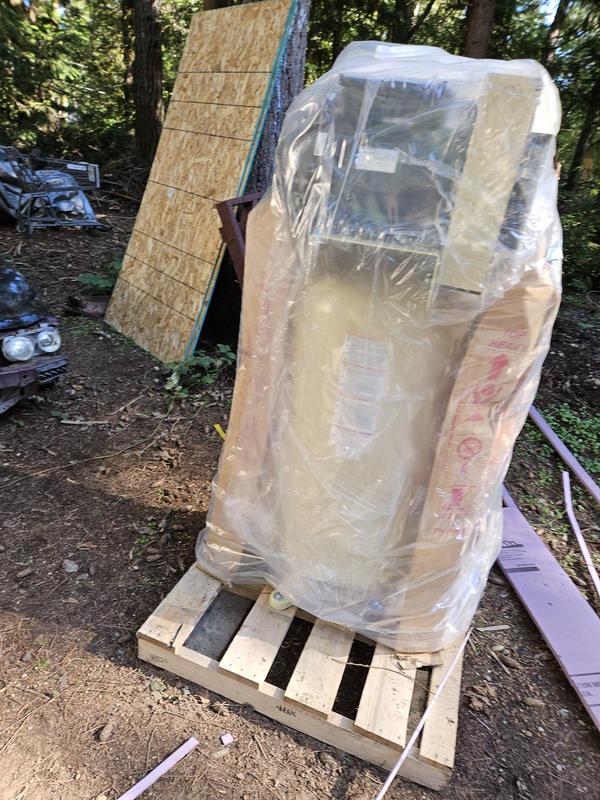

Upon arrival, the "safety shipping straps" were not in tact. While it was concerning, the only damage I noticed was what appeared to be some bent sheet metal on the cover. It didn't appear to be impacting any moving parts. Since the compressor was dropped off in the middle of the road / driveway, I wasn't there to sign, nor did anyone ask, nor inform me that the unit was there.
Since it arrived earlier than expected (yay!) I wasn't able to fire it up right away as 220v power wasn't ready. Upon turning it on for the first time, there are some bad sounds coming from the compressor engine and it shuts off @5psi. I've attempted a few things to determine the source of the problem, but the "clanging" sound in the engine is enough to scare the #*@# out of you. This is a disappointing experience.
No, I do not recommend this product.
Review 1
5 out of 5 stars.
Excellent product!
8 years ago
Much quieter than I had expected. It's a very strong running machine and I more than capable to keep up with all my air supply needs.
Yes, I recommend this product.
