Ingersoll Rand 5 hp 80 gal. 2-Stage Air Compressor, 175 PSI, 230V, 1-Phase, 45464989
Ingersoll Rand 5 hp 80 gal. 2-Stage Air Compressor, 175 PSI, 230V, 1-Phase, 45464989
Item # 107274599
$2,649.99
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Get everything you need
Neighbor’s Club Members earn points with purchases.
Ingersoll Rand 5 hp 80 gal. 2-Stage Air Compressor, 175 PSI, 230V, 1-Phase, 45464989
Item # 107274599
Buy Air Compressor Get 20% Off Air Compressor accessorie
$2,649.99
or
or
$79/mo.† for 36 months totaling $2844 at 3.99% APR or earn $132 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Get everything you need
Neighbor’s Club Members earn points with purchases.
Power air tools with the Ingersoll Rand 2340N5-V 230V-1Ph 2-Stage Air Compressor. This air compressor is designed for use in commercial, automotive and light industrial applications. The pump in the 2-stage air compressor is made from cast-iron for durability and is oil-lubricated. The air compressor has an automatic stop control with a NEMA 1 pressure switch for safe use.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 1 year limited warranty/2 year limited pump warranty with use of IR synthetic lubricant
- ASME coated 80 gal. vertical tank in the air compressor
- 14.7 CFM @ 175 PSI

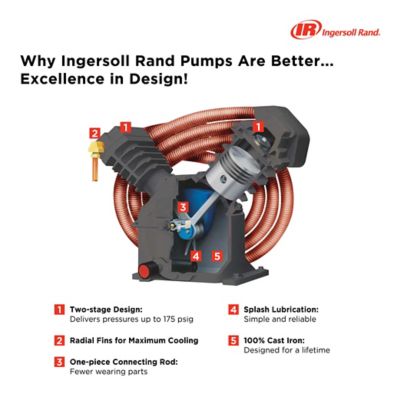

- Oil-lubricated cast-iron pump in the air compressor is designed for heavy-duty applications
- Designed to run at high volumes and high pressure without interruption
- For use with commercial, automotive and light industrial applications with intermittent load demands
- ODP electric motor powers the 2-stage air compressor
- Automatic stop control on the 2-stage air compressor with a NEMA 1 pressure switch
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 14 CFM |
| Air Outlet Size | 1/2 in. |
| Amperage | 22.5 Amp |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Reciprocating |
| Features | This air compressor is designed for use in commercial, automotive and light industrial applications. |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 68 in. |
| Product Length | 37 in. |
| Product Weight | 435 lb. |
| Product Width | 24 in. |
| Pump Material | Cast iron |
| Tank Style | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 45464989 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: What is the DBA of this unit?
10 months ago1 Answer
- A: 85 Dba thank you10 months agoHelpful?
Q: Does this compressor come with oil ?
8 years ago1 Answer
- A: This product does not come with oil, however you can purchase a start-up kit (SKU # 1072777) which includes the oil.8 years agoHelpful?
Q: What is the difference between the rotary compressor and two stage compressor and which is more durable or desirable ?
8 years ago1 Answer
- A: It's not really a question of which is more durable or desirable, but more of a question of which is better for your application and the incoming electrical power at your facility. We recommend that you contact your closest Ingersoll Rand Customer Center. Your closest Customer Center can be found by the use of Ingersoll Rand's locator web site. Here is a link: https://myir.com/contactus/find8 years agoHelpful?
Q: Can this be wired 208 single phase?
8 years ago1 Answer
- A: The short answer is no, but you could have an electrician install a transformer to boost the voltage to 230V so you can run the unit on the proper voltage.8 years agoHelpful?
Q: What is the CFM@ 90 lbs pressure
8 years ago1 Answer
- A: At 90 lbs pressure, the CFM should be 14.3.8 years agoHelpful?
Q: can this be wired for 208 3 phase with the motor that comes on it.
9 years ago1 Answer
- A: No. But the 2340N5-V is available in 200/3/60 using SKU# (1072748)9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: What is the DBA of this unit?
10 months ago1 Answer
- A: 85 Dba thank you10 months agoHelpful?
Q: Does this compressor come with oil ?
8 years ago1 Answer
- A: This product does not come with oil, however you can purchase a start-up kit (SKU # 1072777) which includes the oil.8 years agoHelpful?
Q: What is the difference between the rotary compressor and two stage compressor and which is more durable or desirable ?
8 years ago1 Answer
- A: It's not really a question of which is more durable or desirable, but more of a question of which is better for your application and the incoming electrical power at your facility. We recommend that you contact your closest Ingersoll Rand Customer Center. Your closest Customer Center can be found by the use of Ingersoll Rand's locator web site. Here is a link: https://myir.com/contactus/find8 years agoHelpful?
Q: Can this be wired 208 single phase?
8 years ago1 Answer
- A: The short answer is no, but you could have an electrician install a transformer to boost the voltage to 230V so you can run the unit on the proper voltage.8 years agoHelpful?
Q: What is the CFM@ 90 lbs pressure
8 years ago1 Answer
- A: At 90 lbs pressure, the CFM should be 14.3.8 years agoHelpful?
Q: can this be wired for 208 3 phase with the motor that comes on it.
9 years ago1 Answer
- A: No. But the 2340N5-V is available in 200/3/60 using SKU# (1072748)9 years agoHelpful?
