Power air tools with the Ingersoll Rand 2340L5-V 230V-1Ph 2-stage Air Compressor. This air compressor is designed for use in commercial, automotive and light industrial applications. The pump in the 2-stage air compressor is made from cast-iron for durability and is oil-lubricated. The air compressor has an automatic stop control with a NEMA 1 pressure switch for safe use.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 1 year limited warranty/2 year limited pump warranty with use of IR synthetic lubricant
- ASME coated 60 gal. vertical tank in the air compressor
- 14 CFM @ 175 PSI
- Oil-lubricated cast-iron pump in the air compressor is designed for heavy-duty applications
- Designed to run at high volumes and high pressure without interruption
- For use with commercial, automotive and light industrial applications with intermittent load demands
- ODP electric motor powers the 2-stage air compressor
- Automatic stop control on the 2-stage air compressor with a NEMA 1 pressure switch
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 14 CFM |
| Air Outlet Size | 1/2 in. |
| Amperage | 22.5A |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 60 gal |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Recip |
| Features | Designed for heavy shop or industrial use, ideal automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 76 in. |
| Product Length | 50 in. |
| Product Weight | 435 lb. |
| Product Width | 40 in. |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Style | Vertical |
| Warranty | 1 Year |
| Manufacturer Part Number | 45464922 |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: What is the dB rating ?
7 months ago1 Answer
- A: 85 dBa Thank you,7 months agoHelpful?
Q: Can a magnetic starter be installed on this unit?
a year ago2 Answers
- A: For this question please reach out to our Technical team so they can get some more information and give you an accurate response. They can be reached at 1-800-247-7378 Thank you,a year agoHelpful?
Q: how long does it take to fill the tank
3 years ago1 Answer
- A: Hi there, Thank you for reaching out. For such a specific inquiry please contact the manufacturer for further information. Ingersoll Rand https://www.ingersollrand.com/en-us/modals/contact 800-483-49813 years agoHelpful?
Q: What size wire should I run from electric panel?
4 years ago1 Answer
- A: For this unit the recommended wire gauge is 8 for <50 run and a 40 amp breaker. If you have additional wiring questions please contact our technical team by calling 800-247-7378.4 years agoHelpful?

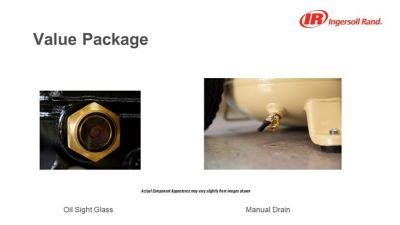

Q: Does the 2340L5 have glass oil site, Low oil shut off? Air dryer? Air filter? Please
Anonymous5 years ago1 Answer
- A: Unfortunately, you will need to contact Ingersoll Rand customer service at 800-483-4981 for additional support.5 years agoHelpful?
Q: What rpm does this run at?
6 years ago1 Answer
- A: The pump runs at 700 RPM.5 years agoHelpful?
Q: Will this unit run correctly off of 208 Volts 1 Phase ?
7 years ago1 Answer
- A: The lowest acceptable is 220 volts. For help with any other technical questions, call 800-247-7378.7 years agoHelpful?
Q: I am replacing an older IR 60 Gallon upright compressor. What is the center to center distance between the floor mounting holes in this unit?
7 years ago1 Answer
- A: Per the manufacturer this compressor has three feet and the bolt circle is 22.05 inches (or 560 mm). The manufacturer also provided 1-800-247-7378 for specifications.7 years agoHelpful?
Q: What CFM does this compressor put out @50psi?
8 years ago1 Answer
- A: The CFM rating @ 75 psi is 14.9 CFM. There will not be a noticeable difference @ 50 psi.8 years agoHelpful?
Q: What amp breaker required
8 years ago1 Answer
- A: It draws 28 amps so a minimum of 30 amp breaker would be needed.8 years agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: What is the dB rating ?
7 months ago1 Answer
- A: 85 dBa Thank you,7 months agoHelpful?
Q: Can a magnetic starter be installed on this unit?
a year ago2 Answers
- A: For this question please reach out to our Technical team so they can get some more information and give you an accurate response. They can be reached at 1-800-247-7378 Thank you,a year agoHelpful?
Q: how long does it take to fill the tank
3 years ago1 Answer
- A: Hi there, Thank you for reaching out. For such a specific inquiry please contact the manufacturer for further information. Ingersoll Rand https://www.ingersollrand.com/en-us/modals/contact 800-483-49813 years agoHelpful?
Q: What size wire should I run from electric panel?
4 years ago1 Answer
- A: For this unit the recommended wire gauge is 8 for <50 run and a 40 amp breaker. If you have additional wiring questions please contact our technical team by calling 800-247-7378.4 years agoHelpful?
Q: Does the 2340L5 have glass oil site, Low oil shut off? Air dryer? Air filter? Please
Anonymous5 years ago1 Answer
- A: Unfortunately, you will need to contact Ingersoll Rand customer service at 800-483-4981 for additional support.5 years agoHelpful?
Q: What rpm does this run at?
6 years ago1 Answer
- A: The pump runs at 700 RPM.5 years agoHelpful?
Q: Will this unit run correctly off of 208 Volts 1 Phase ?
7 years ago1 Answer
- A: The lowest acceptable is 220 volts. For help with any other technical questions, call 800-247-7378.7 years agoHelpful?
Q: I am replacing an older IR 60 Gallon upright compressor. What is the center to center distance between the floor mounting holes in this unit?
7 years ago1 Answer
- A: Per the manufacturer this compressor has three feet and the bolt circle is 22.05 inches (or 560 mm). The manufacturer also provided 1-800-247-7378 for specifications.7 years agoHelpful?
Q: What CFM does this compressor put out @50psi?
8 years ago1 Answer
- A: The CFM rating @ 75 psi is 14.9 CFM. There will not be a noticeable difference @ 50 psi.8 years agoHelpful?
Q: What amp breaker required
8 years ago1 Answer
- A: It draws 28 amps so a minimum of 30 amp breaker would be needed.8 years agoHelpful?
