California Air Tools 5 Gallon 2 Horsepower Rugged Air Compressor
Item # 243515699
Neighbor’s Club Members earn points with purchases.
Item # 243515699
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

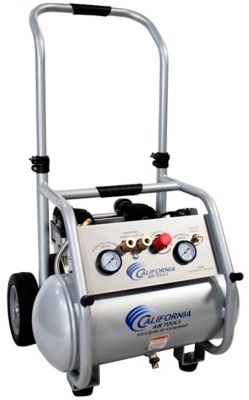

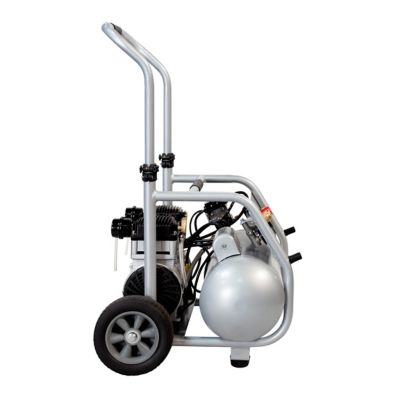

Ideal for any Job Site, the CALIFORNIA AIR TOOLS 5020W Ultra Quiet & Oil-Free Rugged Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound and features extra large 7.6" wheels. The Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. Motor has been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance, durability and provides up to 135 PSI. The CAT-5020W Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the SP-9421 motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large 5.0 Gallon Steel Air Compressor is only 82 pounds making it very easy to move around the jobsite and is lighter and quieter than all competitive models in the same class. Designed for the person looking for Rugged Durability, Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise! May be used for Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Trim and Wrenching.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.

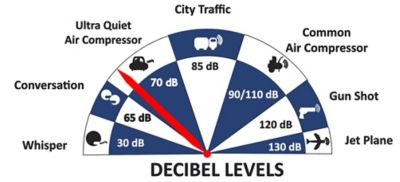

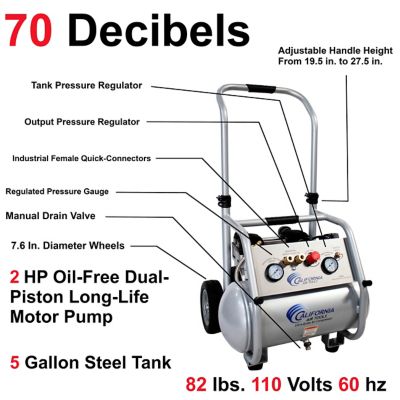

- Ultra Quiet - Only 70 decibels
- Oil-Free Pump Cleaner air for better tool operation. Less maintenance and Costs.
- Protective Roll Cage
- Telescope Handle for adjustable height: 19.5" To 27.5"
- Easy to Lift and Easy to move around on Job Sites
- Large Rugged Flatless Wheels (7.6")
- Two pressure control gauges
- Two - Female industrial "Push to Connect" quick connectors
- Easy Start Valve - For Less Starting Amperage
- Thermal Overload Protector
- Recovery time from 95 PSI to 125 PSI - 20 Seconds
- 135 PSI Maximum Pressure
- 110v / 60 hz
- Low Amp Draw - 14 Amps
- Dedicated 15 amp outlet -14 gauge 25ft cord - Min. 5500 Watt Generator
- Time to fill tank from empty to full - 60 Seconds
- Recovery time from 95 PSI to 125 PSI - 20 Seconds
- L (19.0") x W/D (21") x H (19.5" To 27.5")
- Limited Warranty 1 Year
| Brand | California Air Tools |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 6.4 CFM |
| Air Outlet Size | 0.25 in. |
| Amperage | 14A |
| Compressor Horsepower | 2 HP |
| Lubrication Type | Oil Less |
| Compressor Maximum PSI | 135 PSI |
| Compressor Tank Capacity | 5 gal |
| Compressor Voltage | 110V |
| Drain System | Manual Drain Valve |
| Drive Type | Induction Motor |
| Features | Telescoping handle |
| Number Of Power Speeds | Single |
| Number Of Wheels | (2) 7.6 in. Heavy Duty Wheels |
| Power Type | Electric |
| Primary Color | Gray |
| Primary Material | Steel |
| Product Height | 19.5 in. |
| Product Length | 19 in. |
| Product Weight | 82 lb. |
| Product Width | 21 in. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Style | Horizontal |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 5020W |
