Mega 5 HP 60 gal. Single Stage V-Style Twin Cylinder 150 PSI Max Industrial Air Compressor
Mega 5 HP 60 gal. Single Stage V-Style Twin Cylinder 150 PSI Max Industrial Air Compressor
Item # 1738463
Add a protection plan
Powersport plans are not available in CA.
Mega 5 HP 60 gal. Single Stage V-Style Twin Cylinder 150 PSI Max Industrial Air Compressor
Item # 1738463
Add a protection plan
Powersport plans are not available in CA.

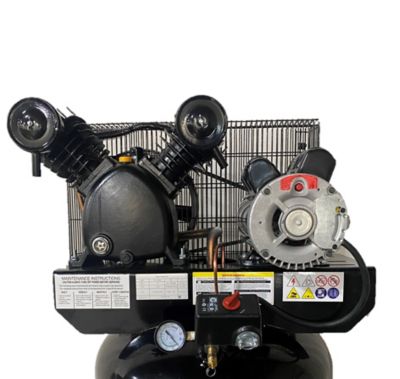

The Mega Single Stage 'V' Style Twin Cylinder 60 gal. 5 HP 150 PSI Max Industrial Air Compressor features a cast iron, 2-cylinder, oil lubricated pump with a 1-piece cast iron crankcase. Get work done with maximum efficiency with a heavy duty induction motor. This air compressor has a full cast iron cylinder body.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Air compressor features cast iron, V-twin cylinder, oil lubricated pump
- Heavy duty induction motor for maximum performance and efficiency
- Air compressor with 60 gal. vertical tank
- 240V single phase motor
- Shipped with 100% full synthetic air compressor oil for optimum performance and long life
- CFM @ 40 PSI: 16
- CFM @ 90 PSI: 14.5
- Maximum pressure: 150 PSI
| Brand | Mega |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 14.5 CFM |
| Air Outlet Size | 1/2 in. |
| Amperage | 21A |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 150 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 60 gal |
| Compressor Voltage | 240V |
| Drain System | Manual |
| Drive Type | Belt Drive |
| Engine Brand | MEGAPOWER INC |
| Features | Regulator Included |
| Fuel Tank Capacity | N/A |
| Hose Fitting Size | 1/2 in. |
| Maximum RPM | 3,450 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 72 in. |
| Product Length | 24 in. |
| Product Weight | 320 lb. |
| Product Width | 31 in. |
| Pump Life | 8,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 1.5 qt. |
| Stage Type | Single-Stage |
| Tank Fill Time | 5 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | MP-6560VT |
