New!Grizzly G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander

5.01 Reviews

Item # 229396199

Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
$30095.00See Price at Checkout
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

New!Grizzly G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander

5.01 Reviews

Item # 229396199

Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
Image showing G0581 43 in. 25 HP 3-Phase Double Drum Wide Belt Sander
$30095.00See Price at Checkout

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The dual heads of this wide-belt sander speed up your production times. Rarely can a machine claim to cut your sanding time in half, but the G0581 43" 25 HP 3-Phase Double Drum Wide-Belt Sanders features dual heads allowing to sand two different grits in a single pass!

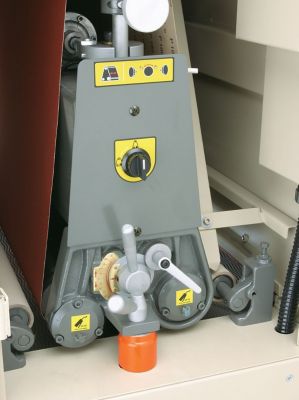

The first belt runs on a single drum and the rear belt runs on a platen system which allows you to adjust the sanding depth. The sanding belts are 43" wide by 60" long. For a full range of replacement belts for the G0581, shop here.

If you are still sanding through two grit levels using a single head wide-belt sander you are not being the most efficient.

The G0581 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your wide-belt sander.

Made in an ISO 9001 Factory

CSA Certified

*This machine is prewired for 220V. We can rewire to 440V in a few days' time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.



For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Sanding motor: 25 HP, 220V/440V (prewired to 220V), 3-phase, 64.9A/32.5A
  • Conveyor motor: 2 HP, 6A/3A
  • Table lift motor: 1/4 HP, 1.2A/0.6A
  • Maximum board width: 43"
  • Maximum board thickness: 6"
  • Minimum board length: 14"
  • Minimum board thickness: 3/16"
  • Front drum surface speed: 3500 FPM
  • Rear drum surface speed: 2600 FPM
  • Conveyor speed: 14-60 FPM
  • Sanding belt size: 43" x 60"
  • Air requirement: 75 PSI
  • Dust ports: 10 x 5"
  • Footprint: 61" x 31"
  • Overall size: 63-1/2" W x 60-1/2" D x 68" H
  • Approximate shipping weight: 3384 lbs.
  • Rubber pressure rollers
  • Hard rubber infeed drum
  • Adjustable graphite platen
  • Digital encoder depth control
  • Amp/load meter
  • Disc brake for emergency stop
  • Variable feed speed
