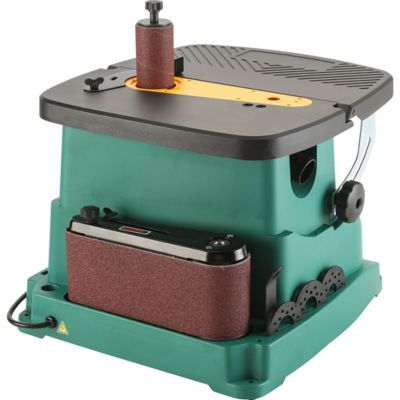

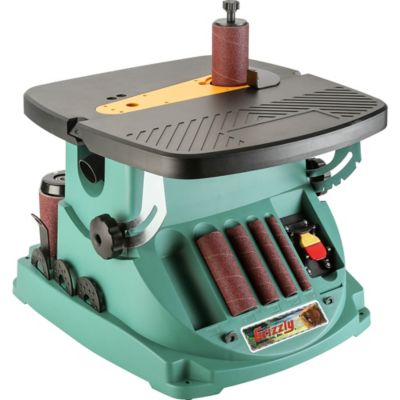

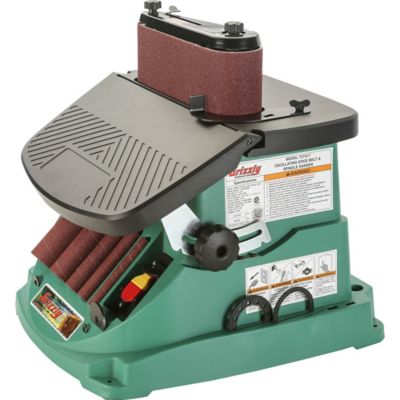

Two benchtop sanders in one! The T27417 easily converts from an oscillating spindle sander to a 4" x 24" oscillating edge belt sander for a limitless variety of sanding applications.
Easily sand outside edges and both inside and outside contours of your workpieces.
The oscillating movement of the spindle sands workpieces more efficiently. Versus non-oscillation sanders, these machines burn less, remove more, and wear the sandpaper less.
Features include a 0–45° tilting table and on-board storage for sanding sleeves, drums, table inserts, and edge sanding attachment.
Like all Grizzly sanders, the T27417 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0898 manual was written by our U.S. based Documentation Department is packed with useful information.
The Grizzly Technical Support team is U.S. based. Parts for the combination sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONSFEATURES- Combines the advantages of edge belt and spindle sanding all in one tool
- Quickly converts from spindle sander to edge belt sander
- 0–45° tilting table with detents at 0, 15°, 22.5°, 30°, and 45°
- Built-in storage for sanding sleeves, sanding drums, table inserts, and edge sanding attachment
- (4) 4-1/2" long sanding drums with table inserts: 3/4", 1", 1-1/2", 2" diameter
- (5) 80-grit sanding sleeves: 1/2", 3/4", 1", 1-1/2", 2" diameter
- (1) Edge sanding attachment
- (1) 80-grit sanding belt: 4" x 24"
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Motor: 1/2 HP, 120V, single-phase, 3.5A
- Table size: 16-1/4" x 16-3/4"
- Table tilt: 0–45°
- Spindle speed: 2000 RPM
- Spindle stroke: 5/8"
- Spindle oscillations: 58 SPM
- Spindle diameter: 1/2"
- Sanding drum length: 4-1/2"
- Sanding drum diameters: 3/4", 1", 1-1/2", 2"
- Sanding belt speed: 1575 FPM
- Sanding belt dimensions: 4" x 24"
- Platen dimensions: 4" x 6-1/8"
- Table: Cast aluminum
- Base: Plastic
- Dust port size: 1-1/2"
- Footprint: 16-1/2" x 18-1/2"
- Overall dimensions: 16-1/2" W x 18-1/2" D x 18-1/2" H
- Approximate shipping weight: 32 lbs.
Similar Items
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Top Holiday Deals
-
-
Top Rated
-
-
Customers Also Bought
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Reviews
Rating Snapshot
5 starsstars
4 starsstars
3 starsstars
2 starsstars
1 starstars
Overall Rating
Review this Product
Customer Images and Videos
- satisfaction
- purchase
- sanding
- quality
- price
- small
- functional
- setup
ok
Originally posted on grizzly.com
Oscillating Edge Belt and Spindle Sander
Originally posted on grizzly.com

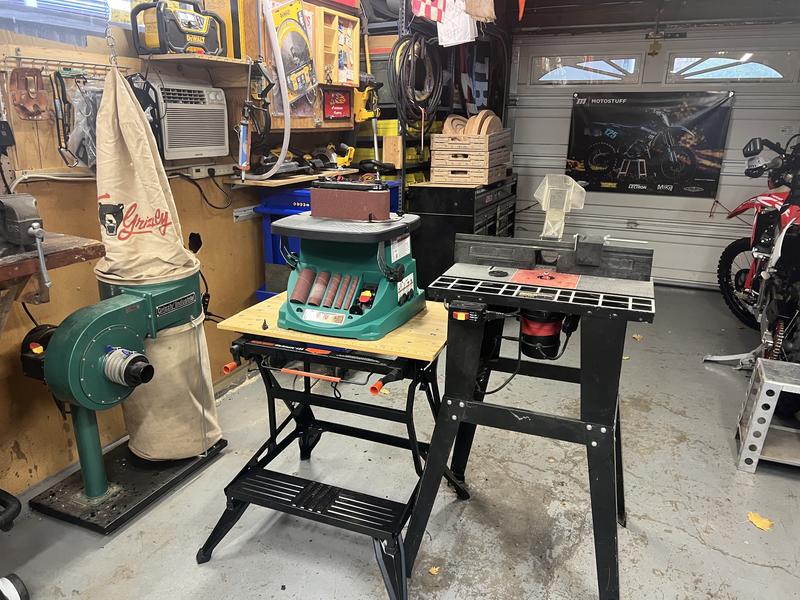

What a great addition to my workshop
