Grizzly T27417 4 x 24in. Oscillating Edge Belt and Spindle Sander
Online Only
Item # 2294193
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2294193
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Two benchtop sanders in one! The T27417 easily converts from an oscillating spindle sander to a 4" x 24" oscillating edge belt sander for a limitless variety of sanding applications. Easily sand outside edges and both inside and outside contours of your workpieces.
The oscillating movement of the spindle sands workpieces more efficiently. Versus non-oscillation sanders, these machines burn less, remove more, and wear the sandpaper less.
Features include a 0–45° tilting table and on-board storage for sanding sleeves, drums, table inserts, and edge sanding attachment.
Like all Grizzly sanders, the T27417 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0898 manual was written by our U.S. based Documentation Department is packed with useful information.
The Grizzly Technical Support team is U.S. based. Parts for the combination sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONSFEATURES
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 1/2 HP, 120V, single-phase, 3.5A
- Table size: 16-1/4" x 16-3/4"
- Table tilt: 0—45°
- Spindle speed: 2000 RPM
- Spindle stroke: 5/8"
- Spindle oscillations: 58 SPM
- Spindle diameter: 1/2"
- Sanding drum length: 4-1/2"
- Sanding drum diameters: 3/4", 1", 1-1/2", 2"
- Sanding belt speed: 1575 FPM
- Sanding belt dimensions: 4" x 24"
- Platen dimensions: 4" x 6-1/8"
- Table: Cast aluminum
- Base: Plastic
- Dust port size: 1-1/2"
- Footprint: 16-1/2" x 18-1/2"
- Overall dimensions: 16-1/2" W x 18-1/2" D x 18-1/2" H
- Approximate shipping weight: 32 lbs.
- Combines the advantages of edge belt and spindle sanding all in one tool
- Quickly converts from spindle sander to edge belt sander
- 0—45° tilting table with detents at 0, 15°, 22.5°, 30°, and 45°
- Built-in storage for sanding sleeves, sanding drums, table inserts, and edge sanding attachment
- (4) 4-1/2" long sanding drums with table inserts: 3/4", 1", 1-1/2", 2" diameter
- (5) 80-grit sanding sleeves: 1/2", 3/4", 1", 1-1/2", 2" diameter
- (1) Edge sanding attachment
- (1) 80-grit sanding belt: 4" x 24"
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 15 A |
| Battery Size | None |
| Belt Length | 24 in. |
| Belt Width | 4 in. |
| Cord Length | 7 ft. |
| Dust Collection Method | 1.5 in. dust port |
| Features | Dust Collection |
| Housing Material | Plastic |
| Maximum Speed | 1575 FPM |
| Tools Included | Sander |
| Power Type | Electric |
| Product Height | 18.5 in. |
| Product Length | 16.5 in. |
| Product Weight | 27 lb. |
| Product Width | 18.5 in. |
| Variable Speed | Single Speed |
| Voltage | 120 V |
| Warranty | 1 |
| Manufacturer Part Number | T27417 |
Q&As
Similar Items
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Items You May Like
-
-
-
-
-
Top Rated
-
-
-
-
-
-
-
Customers Also Bought
-
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
-
Reviews
- satisfaction
- purchase
- sanding
- quality
- price
- small
- functional
- setup
Buy it
Yes, I recommend this product.
Originally posted on grizzly.com

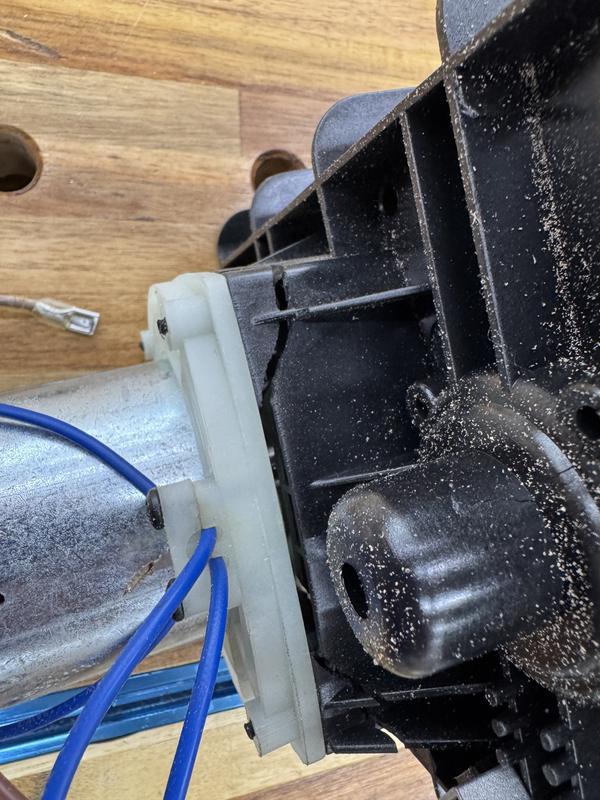

Cheaply made - failed under light use.
