EMAX 10 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
EMAX 10 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
Item # 149603999
$4,569.99
or
or
Neighbor’s Club Members earn points with purchases.
EMAX 10 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
Item # 149603999
$4,569.99
or
or
$96/mo.† for 48 months at 0% APR or earn $228 in Rewards+ on this purchase.
Valid 5/11/2026 - 7/5/2026
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
Neighbor’s Club Members earn points with purchases.
This EMAX 10 HP 80 Gal Industrial Air Compressor is a 2-stage, SINGLE-PHASE V4 vertical air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. Patented Pressure Lubricated V4 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 38 CFM at 100 PSI, Maximum PSI 175. The unit features industrial grade electric motor at 800 maximum RPM, magnetic starters, Condor pressure switch, manual ball valve tank drain, and powder coated ASME tank, rated at 200PSI. This air compressor is paired with all cast iron, 70,000 Hours rated, patented pressure lubricated reciprocating pump. This unit includes our patented, MADE IN THE USA. ETL, UL, CSA, ASME Certified. Includes 1 Year Standard, 5 Year Extended warranty & Eligible for LIFETIME PUMP WARRANTY with maintenance kit,Eligible for lifetime pump warranty with maintenance kit
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- MADE IN USA
- Prewired magnetic starter
- All steel connecting rods with replaceable rod bearing inserts allows our rods to be rebuilt
- Easy Spin-on Re-usable oil filter
- Oil pressure gauge
- Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat
- Soild Cast iron heads are more durable and dependable
- Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
- Precision ground pistons machined to tight tolerances ensures low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from air compressor pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
- Built-in head unloaders
- Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank.
- Certifications: ETL,UL,CSA, ASME
- Eligible for EXTENDED lifetime pump warranty with maintenance kit
- Maximum Pump RPM: 800, for extended life
- Industrial Duty Motor RPM: 1750
- Powder coated 200 PSI ASME certified 80 Gallon tank- approved in all 50 states
- 2 stage Solid cast iron PRESSURE LUBRICATED Pump
- SINGLE PHASE Electric
- Air Outlet size: 3/4"
- Maximum PSI: 175
- Built in Inner-cooler and After-cooler
- Solid Cast Iron Crankcase with oil sight glass NOT Aluminum
- Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
- Dimensions: 28" x 42" x 72"
- Weight: 795 lbs
- Large 1-3/8 inch output shaft
- Running Amps: 40
- 40 CFM @ 90 PSI & 42 CFM @ 40 PSI
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 38 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 40A |
| Compressor Horsepower | 10 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Drain System | Manual |
| Drive Type | Electric Motor |
| Engine Brand | N/A |
| Features | Magnetic starter, Solid Cast Iron pressure lubricated, Low RPM Pump, Industrial grade low RPM electric motor, 2 stage single phase, ASME, ETL, CSA, UL certified |
| Fuel Tank Capacity | 0 N/A |
| Hose Fitting Size | 3/4 in. |
| Maximum RPM | 800 RPM |
| Phase | Single |
| Nozzle Fitting Size | 3/4 in. |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 72 in. |
| Product Length | 28 in. |
| Product Weight | 795 lb. |
| Product Width | 42 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Pump Warranty |
| Manufacturer Part Number | EI10V080V1 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: hello my name is andre from toledo collision repair, do you have this air compressor ready for delivery?
3 years ago1 Answer
- A: Hi! This item is an online item only, you can have it shipped to you or to your local store. If you have any additional questions please feel free to contact our customer support line for further assistance. Phone Number: 877-718-67503 years agoHelpful?
Q: What is the duty cycle? 100% ? How loud is it?
5 years ago1 Answer
- A: Piston compressors are rated for 60-70% duty cycle. A rotary screw is the only type of air compressor that is 100% duty cycle on the market right now. This has a decibel rating of around 75 DBA5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: hello my name is andre from toledo collision repair, do you have this air compressor ready for delivery?
3 years ago1 Answer
- A: Hi! This item is an online item only, you can have it shipped to you or to your local store. If you have any additional questions please feel free to contact our customer support line for further assistance. Phone Number: 877-718-67503 years agoHelpful?
Q: What is the duty cycle? 100% ? How loud is it?
5 years ago1 Answer
- A: Piston compressors are rated for 60-70% duty cycle. A rotary screw is the only type of air compressor that is 100% duty cycle on the market right now. This has a decibel rating of around 75 DBA5 years agoHelpful?
Similar Items
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
Items You May Like
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
-
Customers Also Bought
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
Reviews
- satisfaction
- purchase
- noise level
- size
- volume
- for everyday use
- weight
- performance
1 to 4 of 10 Reviews .
1 – 4 of 10 Reviews
Most Recent
Mott North Dakota
Reviews 2
5 out of 5 stars.
New shop toy
2 years ago

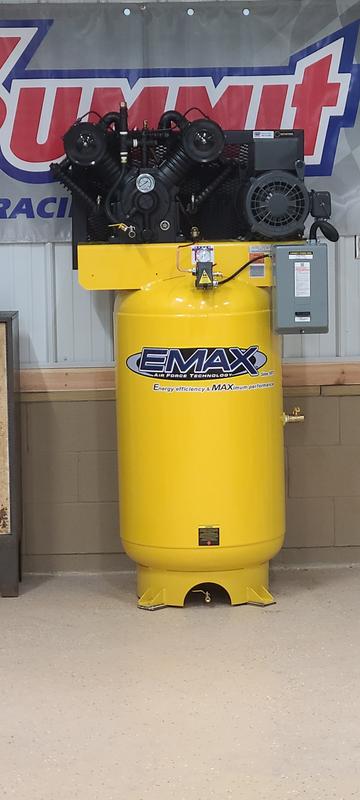

its quiet, has lot of air pressure was easy to install
Yes, I recommend this product.
Response from Emax Team:
2 years ago
Emax Team
Thank you for leaving us a review!! Welcome to the EMAX family!
Anonymous
Orange Tx
Review 1
5 out of 5 stars.
Air compressor
3 years ago

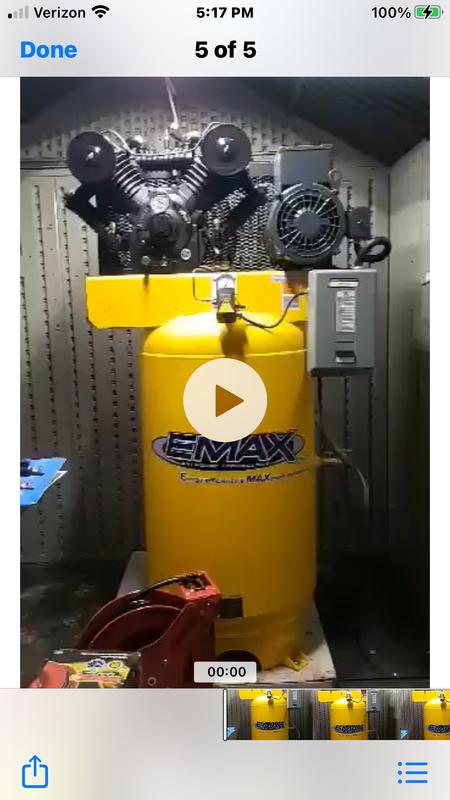

Extremely quiet !! Runs nice and smooth!! Works so much better!
