    Extraordinarily engineered from the ground up in the truest South Bend fashion. The SB1114F Heavy 13 Gearhead Lathe is driven by a 5 HP motor with electronic variable speed to control spindle speeds between 100-3000 RPM.

    A heavy-duty Delta variable-frequency driver inverter ensures smooth, consistent torque at every speed from the 5 HP 3-phase motor without requiring a 3-phase power.

    A factory-installed Fagor two-axis digital readout displays the positioning of the carriage and cross slide.

    The bed of the lathe is constructed with Meehanite castings that are hardened and precision-ground in the traditional three V-way prismatic design.

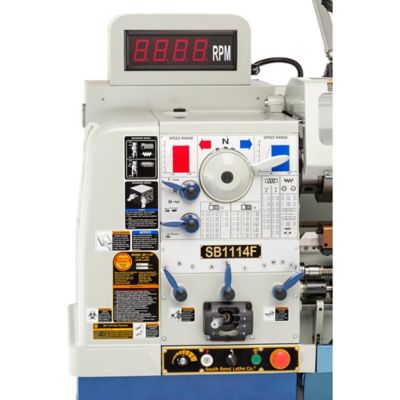

    Quality Allen-Bradley electrical components and attention to detail provide dependable electrical control of the powered movements.

    The lathe is equipped with a foot brake to quickly stop the spindle instead of allowing it to coast to a stop on its own. Pushing the foot brake while the spindle is on also cuts power to the motor and stops the spindle.

    The complete and easy-to-read SB1114F manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

    Parts for the lathe may be available online and shipped from the South Bend parts warehouse in Springfield, MO. SPECIFICATIONS:

    • Spindle motor: 5 HP, 220V, 3-phase (with inverter for single-phase power), 15.5A
    • Required power source: 220V, single-phase, min. 30A circuit
    • Coolant pump motor: 1/8 HP, 0.4A
    • Oil pump motor: 1/4 HP, 1.3A
    • Distance between centers: 30"
    • Swing over bed: 13-1/4"
    • Swing over cross slide: 8-1/6"
    • Swing over saddle: 13"
    • Maximum tool bit size: 5/8"
    • Compound travel: 3-3/4"
    • Carriage travel: 25-9/16"
    • Cross slide travel: 7"
    • Spindle taper: MT #5
    • Spindle speed: Variable, 100-3000 RPM
    • Tailstock taper: MT #3
    • Tailstock travel: 4-1/2"
    • Overall dimensions: 71" W x 38" D x 60-1/2" H
    • Approximate shipping weight: 2596 lbs.
    FEATURES:
    • 2-year limited warranty
    • Meehanite castings
    • Allen-Bradley controls

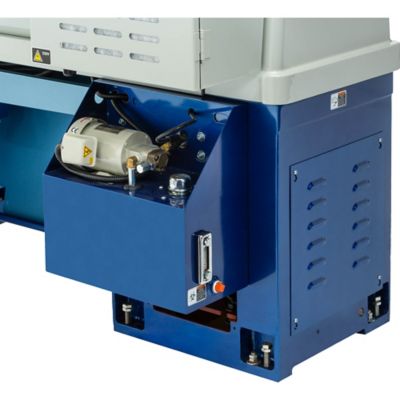

    • Complete recycling coolant system
    • Micrometer carriage stop
    • Threading dial indicator
    • Enclosed universal gearbox for cutting inch, metric, modular, and diametral pitches

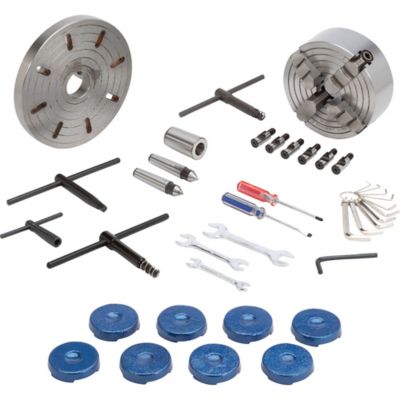

    INCLUDES:
    • 8" 4-jaw independent chuck D1-5

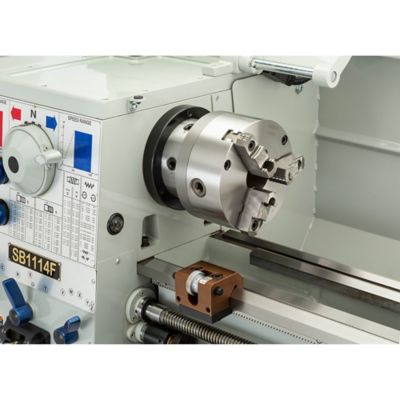

    • 7" 3-jaw scroll chuck mounted to D1-5 plate
    • 10" faceplate D1-5
    • Follow rest
    • Steady rest with roller bearing tips
    • Two morse taper #3 dead centers

    Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

    Need help?

    We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

      Specification Description
      Brand South Bend
      Country of Origin Imported
      Amperage 1 Amp
      Bed Length 30 in.
      Chuck Capacity 0- See chuck specs
      Chuck Size 8 in.
      Cord Length 0 FT
      Decibel Rating 0 - Not rated
      Features No Additional Features
      Horsepower 0.125 HP
      Material Compatibility Metal
      Maximum Speed 3400 RPM
      Minimum Speed 0 RPM
      Product Height 60.5 in.
      Product Length 71 in.
      Product Weight 2029 lb.
      Product Width 38 in.
      Table Length 0 in.
      Table Width 0 in.
      Tool Power Type Corded
      Variable Speed Variable Speed
      Voltage 240 V
      Warranty 2
      Manufacturer Part Number SB1114F
