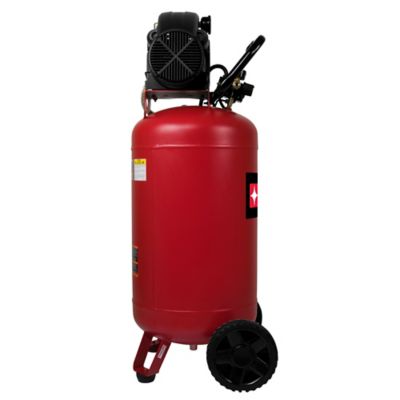

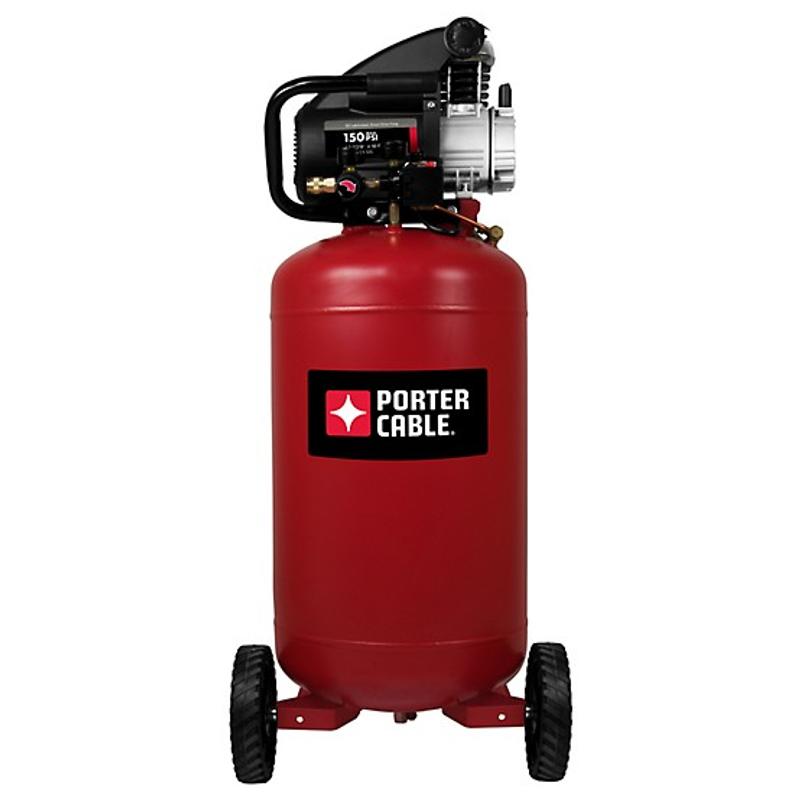

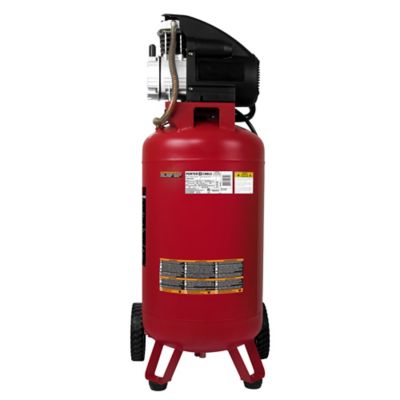

Porter-Cable 24-Gallon Portable Air Compressor

SKU: 118903799
Enter Zip Code for price
Product price

Save Up To
See price at checkout
Product Rating is 4.5
4.5
 (442)

Quantity

TSC of reading #2088
4724 penn ave suite a
reading, PA 19608
(610) 678-6677
TSC of reading #2088
4724 penn ave suite a
reading, PA 19608
(610) 678-6677
Check Availability at Other Stores
Standard Delivery Not Available to
This item will ship within 0 days.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

The Porter-Cable 24-Gallon Air Compressor features a 1.5 HP heavy-duty induction motor with a long-life oil-lubricated, direct drive pump that delivers 135 Max PSI, 4.5 SCFM at 40 PSI and 4.0 SCFM at 90 PSI.

  • 8-inch solid rubber wheels make the unit portable while the narrow horizontal configuration gives the compressor a smaller footprint, enabling it to be stored nicely in a corner taking up less space in your shop or garage
  • Compressor will operate a wide variety of pneumatic tools for automotive and agricultural applications as well as your DIY projects around the home
  • Compressor is shipped with high-quality compressor pump oil for optimum performance and long-life

Specification Description
Running HP: 1.5 HP
Phase: Single
Product Width: 19 in.
Air Outlet Size: 3/8 in.
Duty Cycle: 50%
CARB Compliant: No
Portable or Stationary: Portable
Brand: PORTER-CABLE
Amps: 15 A
Tank Size: 24 gal.
Power Type: 12 Volt
Grade: Consumer
Product Length: 18 in.
Drain System: Manual
CFM @ 90 PSI: 4
CFM @ 40 PSI: 4.5
Product Height: 45 in.
Magnetic Starter: No
Product Weight: 110 lb.
Warranty: 2-Year Limited
Tank Type: Vertical
Maximum Pressure: 135 PSI
Manufacturer Part Number PXCML224VW
Porter-Cable 24-Gallon Portable Air Compressor is rated 4.5 out of 5 by 442.
Rated 5 out of 5 by from THREE YEAR REVIEW: So far so good! I bought this compressor at a Black Friday sale three years ago. I use it for a few hours per day, about half of the weekends out of the year. This unit is still going strong- I attribute that to the proper break-in procedure, which I describe below. Three things to note: 1. The drain valve is NOT the typical "screw in" type valve on consumer-level compressors. This is actually a ball valve with a knob on the side. It is MUCH better than the screw-in type valves. 2. Winter usage: some reviews report that the compressor doesn't work properly in cold winter months. I have a propane radiant heater near the compressor that I'll fire up about a half hour before I intend to use it. This seems to help quite a bit. 3. Breaking it in: there is nothing in the manual about a break-in period. In my opinion this is something you need to do. In my case, the compressor oil was a very light transparent yellow as it came out of the bottle; when I changed the oil after a break-in run, it was an opaque dark blue. To do a break-in I first filled the compressor with oil. Then I opened the drain valve and put a male fitting in the output, so that it would not build any pressure. Then I ran the compressor for 20 minutes. Finally I changed the oil. (I had to go buy another bottle of oil, because the oil provided with the compressor wasn't enough for two fills.)
Date published: 2019-10-14
Rated 5 out of 5 by from Handy and capable. Great compressor for my garage and shop. Works all of my tools, haven’t had any issues with it. I just changed out my F250s front rotors. 8 lugs aren’t a problem.
Date published: 2019-10-05
Rated 5 out of 5 by from Great compressor This compressor was very reasonably priced. So far so good!
Date published: 2019-09-30
Rated 5 out of 5 by from Worked as reviews stated-easy set up Easy, efficient, powerful, easy rolling portable... set up=. Put oil in—plug in— hearing /eye protection on— turn on let run for 15 minutes—turn knob dial to 90 psi— do project carefully—- (Turn drain valve open on very bottom )after turning off— then close back after 30 minutes
Date published: 2019-09-29
  • y_2019, m_10, d_22, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_105, tr_337
  • loc_en_US, sid_118903799, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

What is approximate amp draw at cut-off?  Or does this require more than 15 amps.  Sizing off-grid power for this.  Its what TSC customers do, right?

Asked by: Txaggie
Please contact us at 1-800-628-8815 for further assistance.
Answered by: portercableProductExpert
Date published: 2018-11-02

I, have the UST, 1125c, need a part replacement, will they inter change, very much same unit. Does tractor supply order parts for UST?

Asked by: skid54
Please contact Product Services at 1-888-895-4549 for further assistance with your replacement part need.
Answered by: The Porter Cable Team
Date published: 2019-08-28

Is this unit quiet?

Asked by: Crouse
It is not. It runs roughly 70-80 decibels.
Answered by: DanielB
Date published: 2019-03-09

what is the replacements air filter for this compresor

Asked by: lucy36
There is an air filter available at Tractor Supply that is compatible with this air compressor. It is part # PXCM019-0279 and is Porter-Cable branded. Or you could call Customer Service at 1-888-895-4549 t o order the part. If you choose to do this, the part # to order is E100794. This will include, not only the filter element, but also the complete housing that screws into the compressor.
Answered by: The Porter Cable Team
Date published: 2019-01-29

Is this 110-120/or220-240 volts?

Asked by: Mervin7reala
The PXCML224VW is rated for 120V current.
Answered by: portercableProductExpert
Date published: 2018-11-04

Can it be laid down while in the box for transportation from store to the house or does need to stand up?

Asked by: Cjs83
This can be laid down for transport when purchased. It is an oil lubricated unit but the oil is not installed at production. A bottle of oil is included with the unit to be installed once you are ready to use it.
Answered by: The Porter Cable Team
Date published: 2019-02-09

Is this cast iron? Or. Aluminum ???

Asked by: Tray12
The PXCML224VW has an aluminum crank case and pump head. The cylinder housing is cast iron. The tank is steel.
Answered by: The Porter Cable Team
Date published: 2019-02-05

Can you install another muffler on it to make it quieter? If so, any recommendations?

Asked by: UkeDog
We do not recommend altering the Porter-Cable 24-Gallon Portable Air Compressor in any way. This could void the warranty or damage the tool.
Answered by: portercableProductExpert
Date published: 2017-11-06
