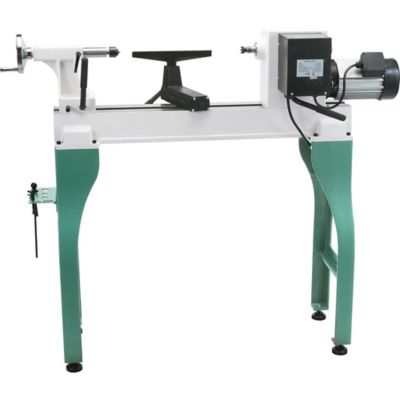

Grizzly G0838-16 in. x 24 in. Variable-Speed Wood La, G0838

Don't let its small size fool you, this stout machine has plenty to offer. Bring home the functionality and features of a much larger lathe with the compact G0838 16" x 24" Variable-Speed Wood Lathe.

With a 2 HP 3-phase motor using a VFD inverter to operate on single-phase 220V power, this lathe gives you the extra torque needed for turning hard woods at really low speeds.

VFD saves you money by increasing the efficiency of the motor and decreasing electricity use. It reduces wear and tear on the motor which extends the life of the lathe.

Additionally, the headstock slides along the precision-ground cast-iron bed and can be locked in place on the tailstock side for outboard turning of much larger pieces.

The optional T28372 Bed and Tool Post Extension provides an incredible 28" swing over the bed extension. The extension can also be mounted to the end of the lathe bed for a total of 47" between centers.

This machine is a bowl-turner's dream!

The G0838 manual was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

Parts for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

ETL certified

SPECIFICATIONS: FEATURES:

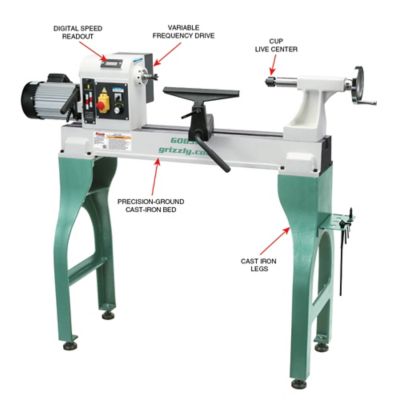

• Heavy-duty cast-iron bed and legs ensure stability and minimize vibration

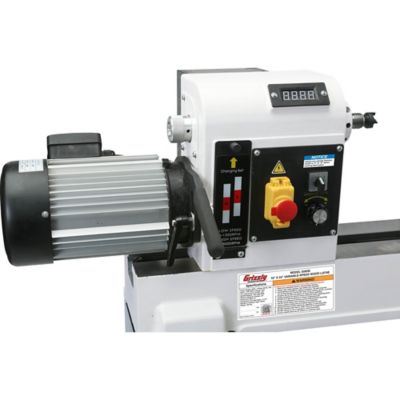

• Digital spindle speed tachometer
• Quick, easy, and secure cam-lock headstock and tailstock adjustment
• Headstock adjusts for outboard turning
• Built-in, easy access tool holder
• 12" tool rest with 1" post

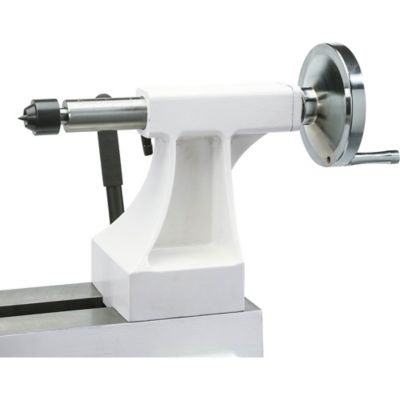

• Cam-lock/release levers for tailstock and headstock
• Headstock rotation with 12 indexes at 10° and 30°
• Forward and reverse turning capacity
• 1-year limited warranty
• Includes 6" faceplate, live center, and spur center

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
