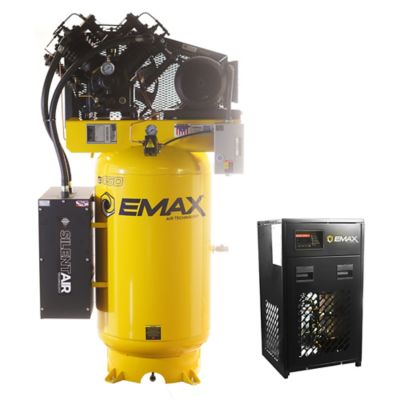

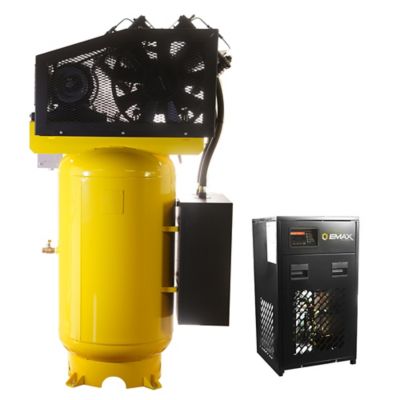

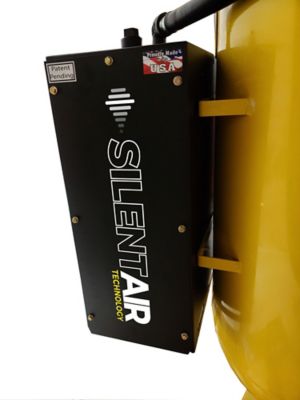

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 3 Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron patented pressure lubricated reciprocating pump. This unit features our patented Silent air silencerWhisper100 silent air system already installed. The patented SILENT air silencer compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. These bundles are backed by the best warranty in the industry!

• 31 CFM @ 100 PSI. Maximum PSI 175
• AIRBASE Solid cast iron pump: Model# APP4V1043TP
• Pump RPM: 640, Industrial Motor RPM: 1750
• Pump Oil Capacity: 2.5 qt.
• Three Phase 208/230/460 option set up
• Compressor: 18 AMP @ 208/230V - Dryer: 9 AMP @ 460V
• Tank Outlet Size: 3/4 in.
• Automatic Tank Drain
• 80 Gallon vertical ASME UV Powder coated tank. 200PSI. Approved in all 50 states
• Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, 3 Phase Industrial Grade motor
• Certifications: ETL, UL,CSA, ASME
• Weight: compressor 701 lbs, Dryer 110 lb.
• Sound level: dBA 64
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Built in Inner-cooler and After cooler
• Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours
• Auto tank drain 110V dual timer controlled, eliminates daily maintenance
• Gate valve oil drain provides quick, clean oil changes
• Re-usable oil filter , re-usable oil filter
• Air Dryer: EMAX model# EDRCF1150030: 30CFM 115V Refrigerated Air Dryer
• Dryer: 134A regrigerant type, Built in auto drain & coalescing filter
• Dryer dew point: 37-50, Pipe size: 1/2 in. NPT
• Max rated inlet temp: 140 degrees, Max ambient temp: 122 degrees
• MADE IN THE USA
