Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderEMAX 7.5 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor and 30CFM 115V Dryer, 175 PSI
Item # 197484299
Neighbor’s Club Members earn points with purchases.
Item # 197484299
Valid 5/11/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.

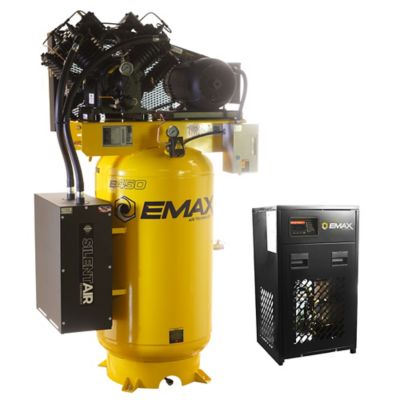

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 1Phase vertical 80 gal. SILENT air Piston Air Compressor with 30CFM 115 volt dryer is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starter, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron patented pressure lubricated reciprocating pump. This unit features our patented Silent Air SILENCER system is already installed. Silent Air dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. These bundles are backed by the best warranty in the industry!Warranty-1yr standard, 3yr extended, 5yr Extended, Eligible Lifetime Pump with maintenance kit
- MADE IN USA
- 30CFM energy efficient refrigerated air dryer
- Air Dryer filters air solid particles down to 0.01 microns
- Air compressor 31CFM @100PSI
- Maximum PSI: 175
- AIRBASE Pressure lubricated SOLID cast iron Pump: Model APP4V1043TP
- Patented Pressure lubricated Solid Cast iron Pump RPM: 640
- Pump Oil Capacity: 2.5 qt.
- Single Phase 208/230 volt
- Running AMP: 32 AMP
- Tank Outlet Size: 3/4 in.
- Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
- 80 gal. vertical, ASME Certified UV, rust resistant, Powder coated, Max 200PSI Air Tank Approved for ALL 50 states
- Air stream Technology
- Heavy duty Industrial 1750 RPM (not 3450 RPM) Name Brand Motor UL & CSA
- 1 Year Standard, 5 Year Extended, eligible for Lifetime Warranty
- Certifications: ETL, UL,CSA, ASME
- Air compressor Dimensions: 28 x 42 x 72 in. (LxWxH)
- Product weight: 701 lb.
- Patented SILENT AIR silencer system
- Dual control design pump allows for automatic or continuous run rated at up to 70,000 hours
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
- Built in Inner-cooler and After cooler
- Gate valve oil drain provides quick, clean oil changes
- Pump oil level site glass
- EMAX Refrigerated air dryer. Model #EDRCF1150030
- Dryer: Keeps Water, Oil, And Dirt Out of Your Compressed Air
- Dryer: Less corrosion of pipes and tools means less downtime
- Dryer: Avoid splotches & stains on your projects with proper filtration
- Dryer: Energy Efficient Aluminum Refrigerated Air Cooling System
- Dryer: Rust Free, Stainless Steel Heat Exchanger
- Dryer: Maximum heat transfer, maximum dryer life & less maintenance
- Dryer: Refrigerated Air Inlet Inner Cooler
- Dryer: Provides trouble free operation for high temp cooling
- Dryer: Environmentally safe 134A refrigerant to prevent damage to the ozone layer
- Dryer dims: 16 x 18 x 24 in. (LxWxH), 110lbs
- Includes: Auto drain, Built in Coalescing Filter
- Dryer:1 Yr Standard, 3 Yr extended
- Dryer Dew point: 37-50 degrees
- Dryer pipe size: 1/2" NPT
- Dryer Max rated inlet temp: 140 degrees
- Dryer Max Ambient temp: 122 degrees
- Dryer full load amps: 3.92 Amps
- Dryer Amp draw: 6 amps
- Dryer: 1 phase, 60Hz, 115V, 30CFM, .01 microns
- Dryer: Refrigerant amount=11 oz.
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 30 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 32 running amps |
| Compressor Horsepower | 7 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Decibel Rating | 35% quieter |
| Drain System | Auto Tank drain |
| Drive Type | Belt Drive |
| Engine Brand | Industrial Low 1,750 RPM Electric Motor |
| Features | Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade motor, Rust-Resistant Powder coated, ASME max PSI 200 certified Tank in all 50 states, Magnetic starter, Single phase, low RPM pump and motor, |
| Fuel Tank Capacity | 0 N/A |
| Hose Fitting Size | 0.75 in. Tank Outlet |
| Maximum RPM | 640 Pump RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | Compressor: 72 in., Dryer: 24 in. |
| Product Length | Compressor: 28 in., Dryer: 16 in. |
| Product Weight | Compressor: 701 lb., Dryer: 110 lb. |
| Product Width | Compressor: 42 in., Dryer: 18 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 10 min. |
| Tank Style | Vertical |
| Warranty | Compressor: 1 Yr. Standard, 5 Yr. Extended, Lifetime eligible. Dryer: 1 Year Standard, 3 Year extended |
| Manufacturer Part Number | ESP07V080V1PK |
