DeWALT 30 gal. Air Compressor 155 PSI, DXCM301

SKU: 131332599
DeWALT 30 gal. Air Compressor 155 PSI, DXCM301
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.6
4.6
 (694)

Quantity

TSC of millington #180
8247 us hwy 51 north
millington, TN 38053
(901) 873-0233
TSC of millington #180
8247 us hwy 51 north
millington, TN 38053
(901) 873-0233
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

The DEWALT Portable Belt Drive Air Compressor is proudly made in the USA with global materials and features a 1.6 HP 120 volt heavy-duty induction motor with an oil lubricated, belt driven, cast iron, V-twin pump that delivers 155 Max PSI, 6.2 SCFM at 40 PSI and 5.3 SCFM at 90 PSI all while operating at a quiet 75 decibels bringing less noise to your environment. The 10-inch wheels make the unit portable while the vertical configuration takes up less floor space making it easy to store in the corner of a garage or workshop. This compressor will operate a wide variety of pneumatic tools for automotive and agricultural applications as well as your DIY projects around the home (All pneumatic tools operate at various SCFM. Consult the operator's manual for your tool for the required SCFM for the tool to operate.). The compressor is shipped with synthetic oil for optimum performance and long life.

  • Built with a high flow regulator-which supplies more torque for the projects like removing old rusted bolts-get more air to the tool
  • Heavy duty 1.6HP induction motor for long life
  • 155 psi max pressure for optimum tool performance
  • Fully assembled and equipped with high flow regulator, tank and working pressure gauges, quick connect air outlet and on/off switch for ease of use
  • ASME (American Society of Mechanical Engineers) code tank meets all safety standards
DEWALT Industrial Tools are warranted from date of purchase. 2 Year - Limited warranty on oil-lubricated air compressor pumps. 1 Year - Limited warranty on all other air compressor components. This warranty is not transferable to subsequent owners.

Specification Description
Portable or Stationary: Portable
Product Width: 25
Tank Capacity: 30
Product Weight: 152 lb.
Fuel Tank Capacity: N/A
Stage Type: Single-Stage
Pump Material: Cast Iron
Product Length: 26
Drive Type: Induction motor with belt drive pump
Drain System: Multi-turn drain valve
Tank Orientation: Vertical
CountryofOrigin: Made in USA
Running Horsepower: 1.6 hp
Decibel Rating: 75 dBA
Pump Life: 1,000 hr.
Number of Wheels: 2
Air Outlet Size: 3 to 8
Application/Use: Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing
Part Number: DXCM301
Start Type: On/Off Switch
Power Type: Electric
Lubrication Type: Oil
Airflow Volume: 6.2 @ 40 PSI, 5.3 @ 90
Color: Yellow
Special Feature(s): N/A
Pump Oil Capacity: 11.35 oz.
Voltage: 120 V
Engine Brand: N/A
Product Height: 49
Tank Fill Time: 7.5
Brand: DeWALT
Maximum Operating Pressure: 155
Cord Length: 6
Maximum RPM: 1,200
Motor Phase: Single
Manufacturer Part Number DXCM301
DeWALT 30 gal. Air Compressor 155 PSI, DXCM301 is rated 4.6 out of 5 by 694.
Rated 5 out of 5 by from Works great I am very pleased with the compressor. It replaced a similar gallon sized compressor in my shop and the DeWalt is a good bit quieter and seems to pump up faster with the to pistons. It is rated at 155PSI but cuts off about 148PSI.
Date published: 2020-02-18
Rated 5 out of 5 by from Air Great product for the price ......................
Date published: 2020-02-11
Rated 5 out of 5 by from Great buy. Very happy with the compressor I've had no issues with air tools and aired up 37" tires in quick time. Pleasantly surprised with how quiet it is. Great buy.
Date published: 2020-02-09
Rated 5 out of 5 by from DeWalt Tough Good size, easy to move around the shop and enough power to basically do everything! No issues- so far so good!
Date published: 2020-02-03
  • y_2020, m_2, d_25, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_220, tr_474
  • loc_en_US, sid_131332599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

How did the Dewalt team determine this air compressor’s dBA? For example was it 6 feet away in an outside environment?

Asked by: RJM2
The sound level for this compressor is determined using ISO (International Standards Organization) 3744 which defines standard sound test procedures to be used throughout the world.
Answered by: Dewalt Team
Date published: 2019-01-23

Can this unit be converted to 210v for operation

Asked by: David1985
No. This compressor is wired for 120 Volt only. Converting this to 210 volt could seriously damage the motor and components.
Answered by: Dewalt Team
Date published: 2019-02-19

I have the DXCM301 and it constantly trips the 20amp breaker after 5-10 seconds of run time if there is air in the tank. Why? Compressor is only 5months old and used maybe 5 times since purchase.

Asked by: rgill80771
1) First, make certain no extension cords are being used and the compressor is plugged directly into the outlet. 2) Follow the break-in procedure in the manual that begins on page 14 of the manual. Do this even if you have already done this before. 3) If the above does not remedy the issue, contact Product Services at 1-888-895-4549.
Answered by: Dewalt Team
Date published: 2019-04-11

Why can’t I fill information on the dewalt air compressor portable 30 DXCM301 on Dewalt web site or anywhere?

Asked by: RP13
The DXCM301 air compressor is a brand new product and the information for this unit is in the process of being updated on dewalt.com. Please call 1-888-895-4549 with any questions you may have about this model.
Answered by: Dewalt Team
Date published: 2018-11-01

WHERE CAN I FIND AN OWNERS MANUAL

Asked by: DAVE 56
The owner's manual is now uploaded to the product page under More Info.
Answered by: Dewalt Team
Date published: 2019-01-23

Can this compressor be transported horizontally?

Asked by: Steve314159
This compressor is manufactured and shipped with oil in the pump. You do not want to transport this unit horizontally with oil in the pump. It will leak out all over your vehicle and also spread oil throughout your pump into areas where you do not want oil. If you must transport this unit horizontally, you will need to drain all oil from the pump. Even then, there will be residual oil in the crank case that may leak out during transport. You will also want to let the unit sit up vertically for at least 24 hours after transport to ensure all residual oil drains back down into the crank case before you refill with oil and use.
Answered by: Dewalt Team
Date published: 2019-01-23

I see a large sticker on the tank that has the American flag and says Made in America (from global parts). So we went from "assembled" in America to "made" in America, even though at least the compressor and motor are made in China. DeWalt :-((((((

Asked by: American Made
While having a mix of USA and global components, the compressor is substantially transformed in the USA by our factory located in Jackson, TN.
Answered by: Dewalt Team
Date published: 2019-05-21

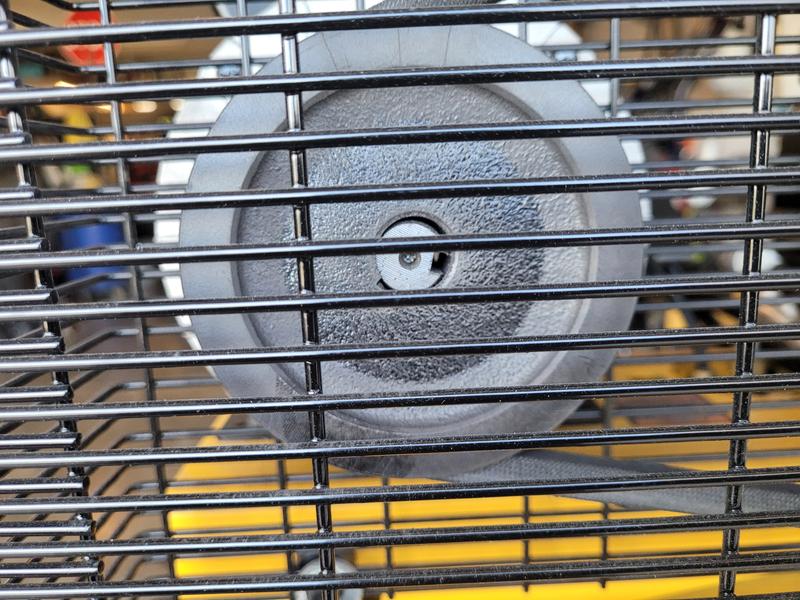

what are the specs on the dxcm301air compressors flywheel mine was broke in shipping bought it as is every thing I find says it is 10.5 inch's but every thing I find online is 10.25

Asked by: riftraft62
The flywheel for the DXCM301 is 10.5 in. diameter. The service part number is E108146. You can contact Product Services at 888-895-4549 for further assistance with your replacement part needs.
Answered by: Dewalt Team
Date published: 2019-08-21
