Ingersoll Rand 2 hp 20 gal. Single-Stage Garage Mate Small Portable Reciprocating Air Compressor, 135 PSI
$960.29
Sale
Was$1,066.99
Save $106.70
Ingersoll Rand 2 hp 20 gal. Single-Stage Garage Mate Small Portable Reciprocating Air Compressor, 135 PSI
Limited Time Deal
Ingersoll Rand 2 hp 20 gal. Single-Stage Garage Mate Small Portable Reciprocating Air Compressor, 135 PSI
Item # 330163399
$960.29
Sale
Was$1,066.99
Save $106.70
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Ingersoll Rand 2 hp 20 gal. Single-Stage Garage Mate Small Portable Reciprocating Air Compressor, 135 PSI
Item # 330163399
Buy Air Compressor Get 20% Off Air Compressor accessorie
$960.29
Sale
Was$1,066.99
Save $106.70
or
or
$81/mo.† suggested payments with 12 Months Financing or earn $48 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Get everything you need
Neighbor’s Club Members earn points with purchases.
Designed for professionals and serious do-it-yourselfers, the versatile Ingersoll Rand Garage Mate Small Portable Reciprocating Air Compressor is ideal for the home, shop or job site. Delivering maximum air, the air compressor can power impact guns, ratchets, grinders, drills, nailers, paint sprayers, sanders and more. The air compressor also features a cast-iron, oil-lubricated pump for solid, reliable performance. Belt-driven for quiet operation (75-80 dBA), all models are equipped with a pressure switch, pressure gauge, regulator, safety valve, manual drain and 6 ft. power cord. A handle and tires make moving the air compressor more accessible.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Portable design: Heavy-duty ergonomic handle and semi-pneumatic tires for easy handling

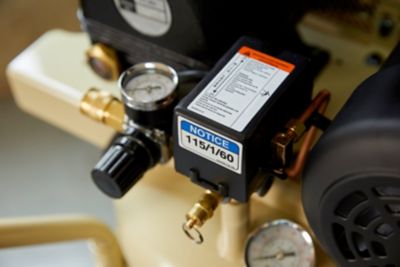

- Low 80 dBA noise level, an easily accessible side drain valve and an automatic start/stop pressure switch control provides a superior user experience
- Maximum power: 5.2 CFM at 90 PSI, 100% continuous duty, along with 20 gal. receiver tank for tough applications
- Reliable operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants
- Long-life: Durable cast iron cylinder and frame, protective enclosed belt guard and manual overload motor protection give the air compressor excellent longevity
- Single stage portable compressor is easy to take anywhere you need around the house or on a jobsite
- Ideal air compressor for DIYers or the professional
- Dimensions of the portable air compressor: 23Lx23Wx45H
- Net weight: 200 lb.
- Voltage: 115 / 1 / 60
- NPT outlet: 3/8 in.
- 2 HP
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445779
| Brand | Ingersoll Rand |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 5.2 CFM |
| Air Outlet Size | 1/4 in. NPT |
| Amperage | 14.7 Amp |
| Compressor Horsepower | 2 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 135 PSI |
| Compressor Tank Capacity | 20 gal |
| Compressor Voltage | 115V |
| Cord Length | 6 ft. |
| Decibel Rating | 80 dBA |
| Drain System | Manual |
| Drive Type | Reciprocating |
| Features | Handles Included |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 45 in. |
| Product Length | 23 in. |
| Product Weight | 200 lb. |
| Product Width | 23 in. |
| Pump Material | Cast iron |
| Stage Type | Single-Stage |
| Tank Style | Vertical |
| Warranty | 1 Year |
| Manufacturer Part Number | P1 5IU-A9 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Cfm @ 90 shows different from other websites. What us the correct CFM@90?
a year ago1 Answer
- A: Thank you for pointing this out, this units is 5.2@90a year agoHelpful?
Q: If you purchase the service kit with this compressor does the warranty get extended like the 80 gallon 7.5 hp I purchased two years ago?
Anonymous2 years ago1 Answer
- A: Hi, Thanks for reaching out. For warranty information, please contact Ingersoll Rand directly **INGERSOLL RAND** https://www.ingersollrand.com/en-us/air-compressor/modals/contact Chat on their website or call Phone: (800) 956-0333 8:00 a.m. and 5:00 p.m. Pacific Standard Time, Monday through Friday (except for holidays)2 years agoHelpful?
Q: how many amps
2 years ago1 Answer
- A: 14.7 full load amps2 years agoHelpful?
Q: Can you use an extension cord with it ? If yes how long. I'm trying to get to my barn which is about about 100 ft ,
2 years ago1 Answer
- A: No it is not recommended to use an extension cord2 years agoHelpful?
Q: Can be used with miller 375 extreme plasma cutter?
2 years ago1 Answer
- A: Good Morning, No this unit was not designed to run that type of equipment. You would want to go with something like the TS4N5 https://www.tractorsupply.com/tsc/product/ingersoll-rand-80-gallon-5-hp-reciprocating-air-compressor Thank you2 years agoHelpful?
Q: Can it be hooked up to a bigger tank?
2 years ago1 Answer
- A: This unit is not intended to be hooked up to another air tank. It is a small portable unit. There are two other units that TSC carries by Ingersoll Rand that have 20 gallon tanks to them. Please see the below two links. Thank you, https://www.tractorsupply.com/tsc/product/ingersoll-rand-garage-mate-small-portable-reciprocating-air-compressor-2-hp-p15iu-a9 https://www.tractorsupply.com/tsc/product/ingersoll-rand-new-horizontal-garagemate-compressor-p15iu-a9-h-477089080012 years agoHelpful?
Q: Can you use with a spray gun to paint?
2 years ago1 Answer
- A: The average air consumption for a sprayer, like our Ingersoll Rand 270G is about 8 cfm. The Garagemate compressor only produces 5.2 cfm at 90psi. You would want to move up to at least our SS3L3 model compressor which produces 11.3CFM at 90 cfm. Or the TS4N5 which TSC sells. Also if you are looking to get a showroom type finish you would want to add a Dryer such as our D42IN and possibly a FA filter assembly before the spray gun to remove any condensation. See links below. https://www.tractorsupply.com/tsc/product/ingersoll-rand-d42-in-refrigerated-air-dryer https://www.tractorsupply.com/tsc/product/ingersoll-rand-80-gallon-5-hp-reciprocating-air-compressor Model Number CCN Bare Bare CCN Pump Rotation View from Oil Fill Port Side DBA Volt HP Full Load Amps Wire Gauge <50 Feet Breaker Amp Size Tank Style Tank Size CFM Max PSI Stages Width Length Height SS3L3 32334005 SS3 18002378 Clockwise 78 230-1-60 3HP 14.7 10 30 VERTICAL 60 11.3 @ 90 135 1 19.6 25.3 66.9 P1.5IU-A9 42663401 P1.5 42660597 Clockwise 80 115-1-60 2 HP 14.7 N / A N / A VERTICAL 20 5.2 @ 90 135 1 23 23 452 years agoHelpful?
Q: Can this compressor motor be rewired for 240 volts? If yes, are there instructions on the motor or in the product manual for doing so?
3 years ago1 Answer
- A: Hi, For your safety and for such a specific technical inquiry, please reach out directly to Ingersoll Rand at **INGERSOLL RAND** https://www.ingersollrand.com/en-us/air-compressor/modals/contact Chat on their website or call Phone: (800) 956-0333 8:00 a.m. and 5:00 p.m. Pacific Standard Time, Monday through Friday (except for holidays)3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Cfm @ 90 shows different from other websites. What us the correct CFM@90?
a year ago1 Answer
- A: Thank you for pointing this out, this units is 5.2@90a year agoHelpful?
Q: If you purchase the service kit with this compressor does the warranty get extended like the 80 gallon 7.5 hp I purchased two years ago?
Anonymous2 years ago1 Answer
- A: Hi, Thanks for reaching out. For warranty information, please contact Ingersoll Rand directly **INGERSOLL RAND** https://www.ingersollrand.com/en-us/air-compressor/modals/contact Chat on their website or call Phone: (800) 956-0333 8:00 a.m. and 5:00 p.m. Pacific Standard Time, Monday through Friday (except for holidays)2 years agoHelpful?
Q: how many amps
2 years ago1 Answer
- A: 14.7 full load amps2 years agoHelpful?
Q: Can you use an extension cord with it ? If yes how long. I'm trying to get to my barn which is about about 100 ft ,
2 years ago1 Answer
- A: No it is not recommended to use an extension cord2 years agoHelpful?
Q: Can be used with miller 375 extreme plasma cutter?
2 years ago1 Answer
- A: Good Morning, No this unit was not designed to run that type of equipment. You would want to go with something like the TS4N5 https://www.tractorsupply.com/tsc/product/ingersoll-rand-80-gallon-5-hp-reciprocating-air-compressor Thank you2 years agoHelpful?
Q: Can it be hooked up to a bigger tank?
2 years ago1 Answer
- A: This unit is not intended to be hooked up to another air tank. It is a small portable unit. There are two other units that TSC carries by Ingersoll Rand that have 20 gallon tanks to them. Please see the below two links. Thank you, https://www.tractorsupply.com/tsc/product/ingersoll-rand-garage-mate-small-portable-reciprocating-air-compressor-2-hp-p15iu-a9 https://www.tractorsupply.com/tsc/product/ingersoll-rand-new-horizontal-garagemate-compressor-p15iu-a9-h-477089080012 years agoHelpful?
Q: Can you use with a spray gun to paint?
2 years ago1 Answer
- A: The average air consumption for a sprayer, like our Ingersoll Rand 270G is about 8 cfm. The Garagemate compressor only produces 5.2 cfm at 90psi. You would want to move up to at least our SS3L3 model compressor which produces 11.3CFM at 90 cfm. Or the TS4N5 which TSC sells. Also if you are looking to get a showroom type finish you would want to add a Dryer such as our D42IN and possibly a FA filter assembly before the spray gun to remove any condensation. See links below. https://www.tractorsupply.com/tsc/product/ingersoll-rand-d42-in-refrigerated-air-dryer https://www.tractorsupply.com/tsc/product/ingersoll-rand-80-gallon-5-hp-reciprocating-air-compressor Model Number CCN Bare Bare CCN Pump Rotation View from Oil Fill Port Side DBA Volt HP Full Load Amps Wire Gauge <50 Feet Breaker Amp Size Tank Style Tank Size CFM Max PSI Stages Width Length Height SS3L3 32334005 SS3 18002378 Clockwise 78 230-1-60 3HP 14.7 10 30 VERTICAL 60 11.3 @ 90 135 1 19.6 25.3 66.9 P1.5IU-A9 42663401 P1.5 42660597 Clockwise 80 115-1-60 2 HP 14.7 N / A N / A VERTICAL 20 5.2 @ 90 135 1 23 23 452 years agoHelpful?
Q: Can this compressor motor be rewired for 240 volts? If yes, are there instructions on the motor or in the product manual for doing so?
3 years ago1 Answer
- A: Hi, For your safety and for such a specific technical inquiry, please reach out directly to Ingersoll Rand at **INGERSOLL RAND** https://www.ingersollrand.com/en-us/air-compressor/modals/contact Chat on their website or call Phone: (800) 956-0333 8:00 a.m. and 5:00 p.m. Pacific Standard Time, Monday through Friday (except for holidays)3 years agoHelpful?
Similar Items
-
-
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
Items You May Like
-
-
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Reviews
- purchase
- parking
- noise level
- satisfaction
- price
- quality
- small
- performance
1 to 4 of 47 Reviews .
1 – 4 of 47 Reviews
Most Recent
New Hampshire
Review 1
4 out of 5 stars.
Good quality and quiet belt driven compressor
7 months ago
I've had this compressor for two years and have not had any issues with it. It's quiet, airs up quickly, and has run all of my air tools without issue. It did arrive with damage to the cooling fins, but TSC shipped me a whole new unit. I just had to take the damaged one to the store to return it. I wish IR would take more care in their shipping packaging.
SweepstakesYes
Yes, I recommend this product.
Sanbornton, NH
Review 1
5 out of 5 stars.
Very high quality compressor, should last forever.
8 months ago
Excellent, very high quality compressor. So long as it meets your CFM requirements you will love it. I was impressed by how much better built it was than previous DeWalt and Porter Cable units I owned.
Ingersoll Rand service has been excellent. There was some very minor damage in transit, and they expedited replacement parts to me, at no charge. Much easier than dealing with a 200 lb return.
If you are a rare person who will put over 2000 hours/year on this machine, I recommend installing an hour meter on the motor for ease of maintenance tracking. Otherwise, just drain and replenish annually.
The unit is fully modular and every part is serviceable. If you take care of it, it should outlive you.
SweepstakesYes
Yes, I recommend this product.
Review 1
3 out of 5 stars.
Shipping issues
11 months ago
Very good product , but very very poor shipped
SweepstakesYes
Allentown Pa.
Review 1
5 out of 5 stars.
small garage/Job air compressor
a year ago
great compressor at a great price
Yes, I recommend this product.
