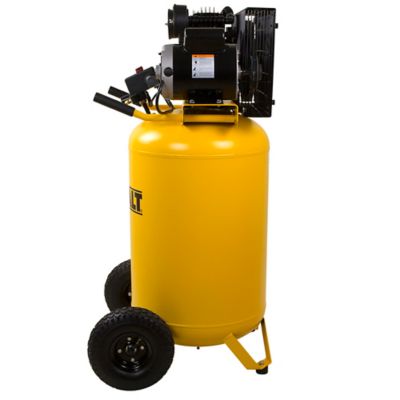

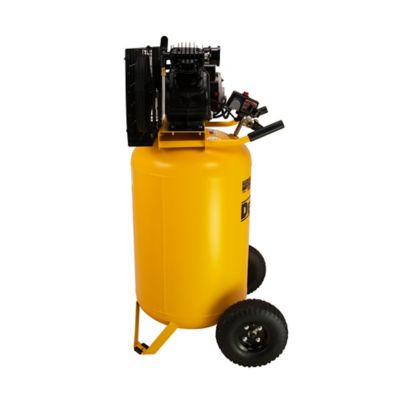

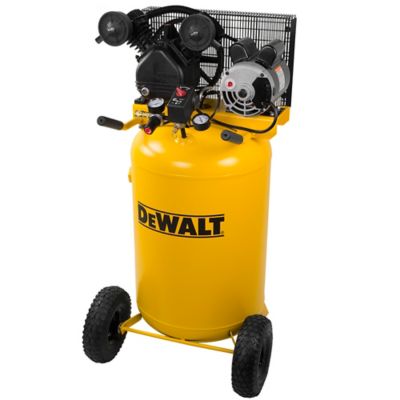

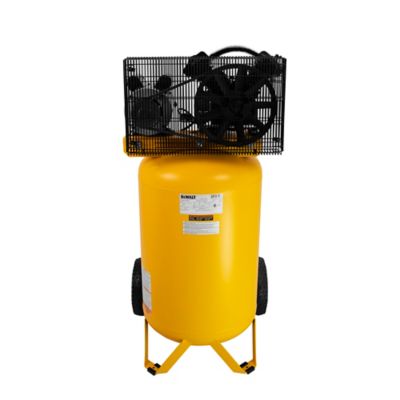

DEWALT 1.6 HP 30 gal. Vertical Oil Lubed Air Compressor
DEWALT 1.6 HP 30 gal. Vertical Oil Lubed Air Compressor
Item # 138835599
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Valid 11/02/2026 - 11/29/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
Neighbor’s Club Members earn points with purchases.
The DEWALT Oil Lubed Air Compressor is job-site tough and built for the professional. The air compressor features automotive style ball bearings, durable stainless steel reed valves, oil level sight glass, easily accessible oil fill and a cast iron balanced flywheel for easy maintenance, durability and convenience. This single-stage, oil lubricated compressor has a Twin-V cast iron pump with 1-piece cast iron crank case and thermally stable cast iron cylinder body. The pneumatic tires and 30 gal. portable tank in the air compressor allow for easy maneuverability. DeWALT offers a large assortment of tools and accessories to help you get any job done.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Built with a high flow regulator which supplies more torque for the projects like removing old rusted bolts-get more air to the tool
- Dual voltage motor is wired for standard 120 volt outlet, and may also be converted for 240 volt applications
- Max. pressure of the oil lubed air compressor is 155 PSI for optimum tool performance
- 30 gal. portable tank in the oil lubed air compressor with pneumatic tires for maximum portability
- Fully assembled air compressor and equipped with high flow regulator, tank and working pressure gauges, quick connect air outlet and on/off switch for ease of use
- 2 year warranty on the pump, 1 year all other parts
- Automotive style ball bearings
- Durable stainless steel reed valves
- Oil level sight glass, easily accessible oil fill and cast iron balanced flywheel allow for easy maintenance of the air compressor
- Twin-V cast iron pump with a 1-piece cast iron crank case and thermally stable cast iron cylinder body for long-lasting use
| Brand | DEWALT |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 6.2 CFM |
| Air Outlet Size | 1/4 in. NPT |
| Compressor Horsepower | 1.6 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 155 PSI |
| Compressor Tank Capacity | 30 gal |
| Compressor Voltage | 120V |
| Decibel Rating | 76.5 dBA |
| Drain System | 1/4 in. NPT Knurled |
| Drive Type | Belt Drive |
| Engine Brand | N/A |
| Features | Regulator Included |
| Fuel Tank Capacity | N/A |
| Maximum RPM | 3,450 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Cast Iron |
| Product Height | 49 in. |
| Product Length | 25 in. |
| Product Weight | 171 lb. |
| Product Width | 24.5 in. |
| Pump Life | 1,500 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 11.35 oz. |
| Stage Type | Single-Stage |
| Tank Fill Time | 8.27 minutes |
| Tank Style | Vertical |
| Warranty | 2 Year Pump and 1 Year All Other Parts |
| Manufacturer Part Number | DXCMLA1683066 |
Q: How houd Is it
13 days ago- AI-generated, Human-approvedA: This air compressor has a decibel rating of 76.5 dBA. One reviewer also noted that the unit is not too loud during operation.10 days agoHelpful?
Q: how much is shipping? and when will it be back in stock?
24 days ago- A: Availability is updated daily on the TSC website and refreshed every Thursday for the upcoming week. Please check back, or if you have problems, please reach out to Tractor Supply Customer Solutions at 877-718-6750. Additionally, to get the most accurate delivery cost for your order, simply add your items to the cart and proceed to the checkout page. Once you enter your shipping address, our system will automatically calculate the exact charges and available delivery options before you finalize your purchase.21 days agoHelpful?
Q: Will this compressor push 20-50 cfm to blow out sprinklers?
2 months ago- AI-generated, Human-approvedA: No, this air compressor provides 5.3 CFM at 90 PSI, which is below the 20-50 CFM range you require.2 months agoHelpful?
Q: what's the decibel rating ?
3 months ago- AI-generated, Human-approvedA: This air compressor has a decibel rating of 76.5 dBA.3 months agoHelpful?
Q: What is the CFM at 90 PSI?
4 months ago- AI-generated, Human-approvedA: This air compressor provides 5.3 CFM at 90 PSI.4 months agoHelpful?
Q: Have a craftsman compressor that is loud when running. Is this a quiet running compressor
4 years ago- A: This 30 gal. air compressor has a decibel rating of about 78 dBA. It is reasonably quiet for this type of air compressor.4 years agoHelpful?
Q: What certification does this Air compressor meet.
4 years ago- A: This 30 gal. air compressor is certified by CSA to the UL 1450 standard.4 years agoHelpful?
Q: What size belt does this air compressor take
5 years ago- A: This 30 gallon air compressor has a 4L- 460 V-belt.5 years agoHelpful?
Q: Other than the dual voltage motor and price, how does this differ from the DXCM301?
7 years ago- A: These two units are the same. They are both built in the USA but in 2 separate manufacturing facilities. This is the reason for differing model numbers. This is done in order to service different customers regionally. Pricing can differ due to shipping costs from each of the manufacturing facilities.7 years agoHelpful?
Q: How is this converted to 240 volts? Is it a matter of switching out plugs or is it more involved than that?
7 years ago- A: Please contact a local certified electrician and they will be able to make the conversion for you.7 years agoHelpful?
Q&As
Q: How houd Is it
13 days ago- AI-generated, Human-approvedA: This air compressor has a decibel rating of 76.5 dBA. One reviewer also noted that the unit is not too loud during operation.10 days agoHelpful?
Q: how much is shipping? and when will it be back in stock?
24 days ago- A: Availability is updated daily on the TSC website and refreshed every Thursday for the upcoming week. Please check back, or if you have problems, please reach out to Tractor Supply Customer Solutions at 877-718-6750. Additionally, to get the most accurate delivery cost for your order, simply add your items to the cart and proceed to the checkout page. Once you enter your shipping address, our system will automatically calculate the exact charges and available delivery options before you finalize your purchase.21 days agoHelpful?
Q: Will this compressor push 20-50 cfm to blow out sprinklers?
2 months ago- AI-generated, Human-approvedA: No, this air compressor provides 5.3 CFM at 90 PSI, which is below the 20-50 CFM range you require.2 months agoHelpful?
Q: what's the decibel rating ?
3 months ago- AI-generated, Human-approvedA: This air compressor has a decibel rating of 76.5 dBA.3 months agoHelpful?
Q: What is the CFM at 90 PSI?
4 months ago- AI-generated, Human-approvedA: This air compressor provides 5.3 CFM at 90 PSI.4 months agoHelpful?
Q: Have a craftsman compressor that is loud when running. Is this a quiet running compressor
4 years ago- A: This 30 gal. air compressor has a decibel rating of about 78 dBA. It is reasonably quiet for this type of air compressor.4 years agoHelpful?
Q: What certification does this Air compressor meet.
4 years ago- A: This 30 gal. air compressor is certified by CSA to the UL 1450 standard.4 years agoHelpful?
Q: What size belt does this air compressor take
5 years ago- A: This 30 gallon air compressor has a 4L- 460 V-belt.5 years agoHelpful?
Q: Other than the dual voltage motor and price, how does this differ from the DXCM301?
7 years ago- A: These two units are the same. They are both built in the USA but in 2 separate manufacturing facilities. This is the reason for differing model numbers. This is done in order to service different customers regionally. Pricing can differ due to shipping costs from each of the manufacturing facilities.7 years agoHelpful?
Q: How is this converted to 240 volts? Is it a matter of switching out plugs or is it more involved than that?
7 years ago- A: Please contact a local certified electrician and they will be able to make the conversion for you.7 years agoHelpful?
