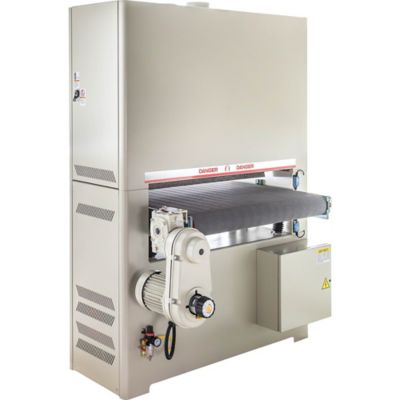

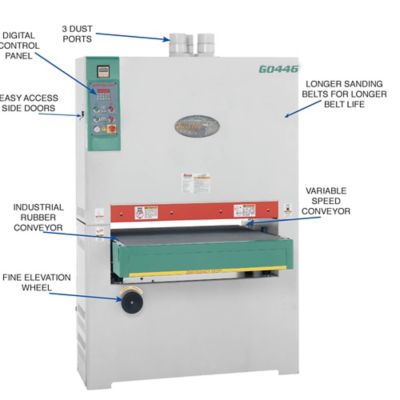

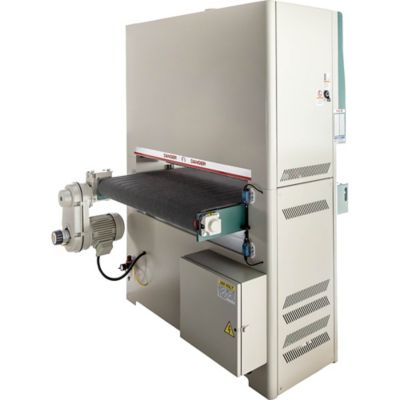

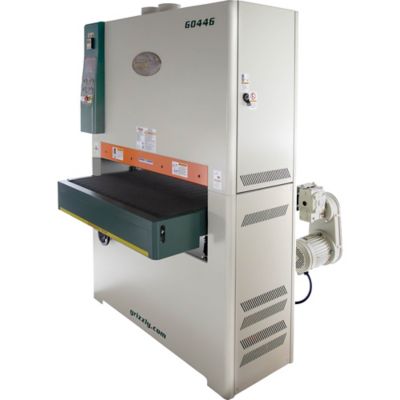

Grizzly G0446-37 in. 15 HP 3-Phase Platen Type Wide-Belt Sander
Item # 229392499
Neighbor’s Club Members earn points with purchases.
Grizzly G0446-37 in. 15 HP 3-Phase Platen Type Wide-Belt Sander
Item # 229392499
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
We sell more wide-belt sanders than just about any company in the USA! Filling in the gap between the popular 25" and 43" wide-belt sanders, the G0446 37" 15 HP 3-Phase Platen Type Wide-Belt Sander offers professional sanding results and unmatched accuracy at an unbeatable value.
State-of-the-art digital controls, a micro-adjustable graphite/felt platen, and three super-efficient dust collection ports are just a few features that make these sanders a joy to use.
The sandpaper length needed is 37" wide by 75" long. For a full range of replacement paper for the G0446, shop here.
If you are looking for the best that money can buy, Grizzly Wide-Belt Sanders have been designed and priced just for you!The G0446 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
Made in an ISO 9001 factory
CSA certified
*This machine is prewired for 220V. We can rewire to 440V in a few days' time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Sanding motor HP: 15 HP, 220V/440V (prewired 220V), 3-phase, 36A/18A
- Conveyor motor HP: 1 HP, 3.4A
- Table lift motor HP: 1/4 HP, 1.2A
- Maximum board width: 36-1/2"
- Maximum board thickness: 6"
- Minimum board length: 9"
- Minimum board thickness: 1/8"
- Front drum surface speed: 2600 FPM
- Conveyor speed: 15-49 FPM
- Air requirement: 57-75 PSI, 7 CFM
- Sanding belt size: 37" x 75"
- Footprint: 19" x 51-1/2"
- Overall dimensions: 56-1/2" W x 52" D x 77-1/2"
- Approximate shipping weight: 1887 lbs.
- Built in air filter/lubricator
- Independent motor control
- Pneumatic belt tracking and tensioning
- Amp meter for load measurement
- Safety shut-off bar
- Digital readout and control panel
- (3) 5" dust ports
- Steel cabinet
- Rubber infeed drum
- Steel outfeed drum
- Rubber pressure drums
- Micro-adjustable graphite/felt platen
- 1-year limited warranty
