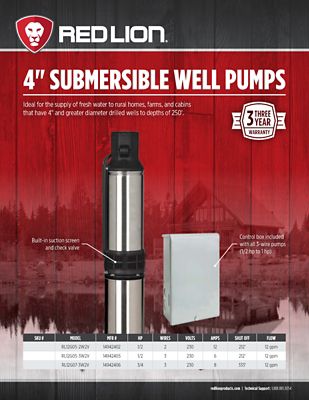

This Red Lion 4" Submersible Deep Well Pump is ideal for the supply of fresh water to rural homes, farms, and cabins that have 4" and greater diameter drilled wells to depths of 212'. The pump is 230V, with 2 wires + a ground wire (also referred to as a 2 wire). The unit has a 1-1/4" FNPT thermoplastic discharge head, and a stainless steel pump shell. The unit also has a built-in suction screen and check valve. The unit does not require a Control Box. The unit is rated at 12 GPM. The unit meets NSF/ANSI standards.
- Powered by an industry standard 1/2 HP, 230 Volt - 2 wire motor
- Thermoplastic discharge and motor bracket
- Stainless Steel pump shell
- Built-in Check Valve and Suction Screen
- 12 Gallons Per Minute
- 1-1/4" FNPT Discharge
- Shut-off - 212'
- 3 Year Manufacturer's Warranty
- cCSAus Listed
- NSF/ANSI 61 Certified
| Brand | Red Lion |
|---|---|
| Country of Origin | Imported |
| Amperage | 6 Amps |
| Body Material | Stainless steel |
| Compatible Pipe Material | Polyethylene, Galvanized steel, Stainless Steel, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1.25 in. |
| Discharge Rate at 0 ft. | 12 gpm |
| Discharge Rate at 25 ft. | 12 gpm |
| Discharge Rate at 50 ft. | 12 gpm |
| Features | Built in Check Valve and Suction Screen; Thermoplastic Discharge and Motor Bracket |
| Horsepower | 0.5 HP |
| Inlet Connection | None |
| Inlet Diameter | 4 in. |
| Maximum Flow Rate | 12 GPM |
| Maximum Head Lift | 212 ft. |
| Maximum Operating Depth | 212 ft. |
| Maximum Operating Temperature | 120 deg. F |
| Minimum Operating Temperature | 40 deg. F |
| Power Type | Electric |
| Product Height | 34.5 in. |
| Product Length | 4.375 in. |
| Product Weight | 25 lb. |
| Product Width | 4.6 in. |
| Motor Type | Electric |
| Voltage | 230 V |
| Warranty | 3 Year |
| Manufacturer Part Number | 14942402 |
