Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderECO-FLO Products Inc. 3/4 hp 230 V Electric Submersible Deep Well Pump, 11.5 gal./min., 4 in., 3-Wire
Online Only
Item # 1168375
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1168375
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The ECO-FLO Products Inc. 3/4 HP 230V Electric Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The submersible well pump offers a self-healing resin system and hermetically sealed windings for reliable performance. The stainless steel pump housing offers maximum protection against corrosion for lasting durability. A precision-ground stainless steel pump shaft provides an exact bearing fit and improved straightness for dependable operation. Precision-molded impellers and diffusers are designed to provide consistent pumping performance. The stainless steel splined shaft adds strength and durability to the pump assembly. A pressure-equalizing diaphragm helps maintain proper internal pressure during operation. Built with durable components and thoughtful design features, this ECO-FLO submersible deep well pump is a reliable choice for residential water systems.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Stainless steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless steel pump housing for maximum protection against corrosion
- Stainless steel splined shaft
- Submersible well pump with hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm

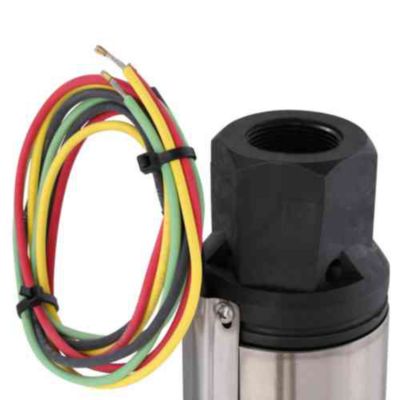

- Removable water-bloc lead connector
- Powered by a 3/4 HP 230V electric motor
- Moves water up to 11.5 GPM
- Backed by a 1-year warranty
- 4 in. diameter well pump with a 3-wire control system
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 7 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | Poly, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 11.5 gpm |
| Discharge Rate at 25 ft. | 12 gpm |
| Discharge Rate at 50 ft. | 12 gpm |
| Features | 1 1/4 in. FNPT Discharge connection, includes built-in check valve, provides smooth water passages for maximum efficiency. Kin |
| Horsepower | 34 hp |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 11.5 GPM |
| Maximum Head Lift | 175 ft. |
| Maximum Operating Depth | 175 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 34 deg. F |
| Power Type | Electric |
| Product Height | 24.96 in. |
| Product Length | 27 in. |
| Product Weight | 26 lb. |
| Product Width | 4 in. |
| Motor Type | CSIR |
| Voltage | 230V |
| Warranty | 1 Year |
| Manufacturer Part Number | EFSUB7-123 |
Q: Will it shut off automatically if well is dry
7 months ago- A: No, the ECO-FLO Products Inc. 3/4 HP 230V Electric 4 in. Submersible Deep Well Pump (Model EFSUB7-123) does not have a built-in feature to shut off automatically if the well runs dry. Running this pump without water (dry-running) can cause permanent damage to the motor and impellers.7 months agoHelpful?
Q: What is the hp rating on this pump I need a 1.5hp to match my control box
4 years ago- A: Hi Lubbock tx, ECO-FLO Submersible Deep Water Well Pump has a1 HP rating.4 years agoHelpful?
Q: Will this pump work in a 60 foot shallow well
4 years ago- A: Yes this will.4 years agoHelpful?
Q: Do you offer a pump that will pump from 500ft
5 years ago- A: For additional products, please contact 1 (800)-368-8604.5 years agoHelpful?
Q: Will this pump work for a 350ft well
5 years ago- A: Yes, it will work.5 years agoHelpful?
Q: 3 or 2 wire hookup?
6 years ago- A: It is a 3 wire hookup.5 years agoHelpful?
Q: Is control box included with pump?
7 years ago- A: Mike357 The control box is a separate item and is not included with the pump. Thanks Customer Service7 years agoHelpful?
Q: what is the lift pressure for how deep water will push from bottom of well.
9 years ago- A: The pressure is 50 PSI.9 years agoHelpful?
Q&As
Q: Will it shut off automatically if well is dry
7 months ago- A: No, the ECO-FLO Products Inc. 3/4 HP 230V Electric 4 in. Submersible Deep Well Pump (Model EFSUB7-123) does not have a built-in feature to shut off automatically if the well runs dry. Running this pump without water (dry-running) can cause permanent damage to the motor and impellers.7 months agoHelpful?
Q: What is the hp rating on this pump I need a 1.5hp to match my control box
4 years ago- A: Hi Lubbock tx, ECO-FLO Submersible Deep Water Well Pump has a1 HP rating.4 years agoHelpful?
Q: Will this pump work in a 60 foot shallow well
4 years ago- A: Yes this will.4 years agoHelpful?
Q: Do you offer a pump that will pump from 500ft
5 years ago- A: For additional products, please contact 1 (800)-368-8604.5 years agoHelpful?
Q: Will this pump work for a 350ft well
5 years ago- A: Yes, it will work.5 years agoHelpful?
Q: 3 or 2 wire hookup?
6 years ago- A: It is a 3 wire hookup.5 years agoHelpful?
Q: Is control box included with pump?
7 years ago- A: Mike357 The control box is a separate item and is not included with the pump. Thanks Customer Service7 years agoHelpful?
Q: what is the lift pressure for how deep water will push from bottom of well.
9 years ago- A: The pressure is 50 PSI.9 years agoHelpful?
Similar Items
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
Frequently Bought Together
Reviews
Rating Snapshot
5 starsstars
4 starsstars
3 starsstars
2 starsstars
1 starstars
Overall Rating
Review this Product
Eco flo pump
Yes, I recommend this product.

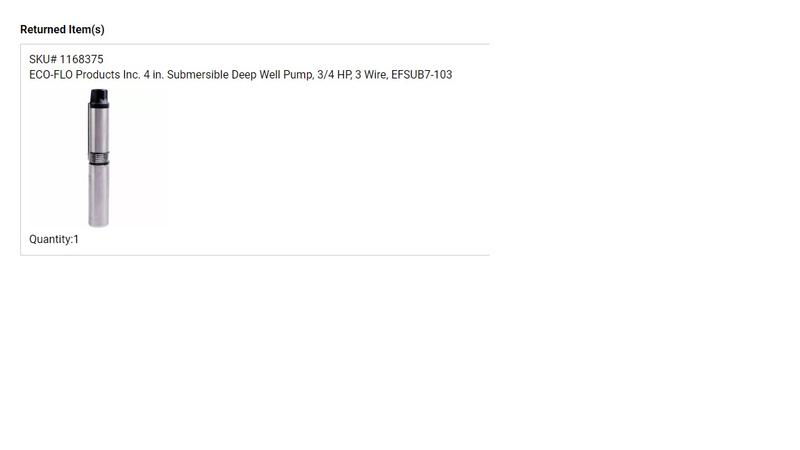

Pump Lasted 3 Months
No, I do not recommend this product.
