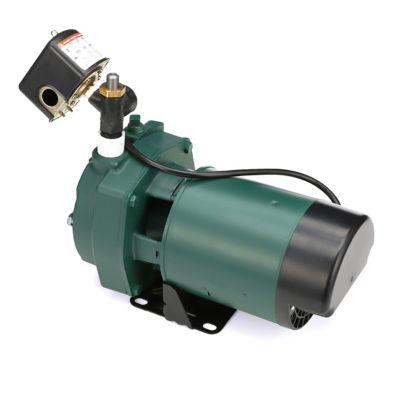

Zoeller 1 HP 115/230V Electric Cast Iron Convertible Jet Pump, 16.1 GPM
Online Only
Item # 2298778
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2298778
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
This 1 HP Convertible Jet Pump is made from rugged cast iron to promote heat dissipation and ensure long life. Draw water from up to 70 ft. in a two pipe application or can be used in single pipe as well using the included ejector delivering up to an 16 GPM flow rate. NEMA J 56 frame motor works in either 115V or 230V for easy installation. Pump includes ejector and 20/40 PSI pressure switch. ...
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Sturdy cast-iron construction
- Serviceable NEMA J adaptable uni-frame motor
- Thermal overload protects against overheating
- Includes pressure switch and ejector
- Made in the USA, using a majority of US content
- 100% factory wet tested
- 2 year limited warranty
| Brand | Zoeller |
|---|---|
| Country of Origin | Made in USA |
| Amperage | 14 Amps |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 1-14 in. NPT |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 16.1 GPM |
| Discharge Rate at 25 ft. | 3.9 GPM |
| Discharge Rate at 50 ft. | 7.3 GPM |
| Features | Cast Iron, NEMA J 56 Frame Motor, Dual 115/230V |
| Horsepower | 1 HP |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1-14 in. |
| Maximum Flow Rate | 16.1 GPM |
| Maximum Head Lift | 70 ft. |
| Maximum Operating Depth | 70 ft. |
| Maximum Operating Temperature | 130 deg. F |
| Minimum Operating Temperature | 35 deg. F |
| Power Type | Electric |
| Product Height | 11.25 in. |
| Product Length | 19.75 in. |
| Product Weight | 50.6 lb. |
| Product Width | 10.75 in. |
| Motor Type | NEMA J 56 Frame |
| Voltage | 115,230V |
| Warranty | 2 Year Limited Warranty |
| Manufacturer Part Number | 1463-0006 |
Q: This pump comes with a 20-40 PSI pressure switch can a 40-60 PSI pressure switch be installed on this pump.
a year ago- A: Hi Woody! That is a great question. Please contact the manufacturer for this information at 800-584-8089; 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.a year agoHelpful?
Q: How do I get repair kit for this pump
2 years ago- A: Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.2 years agoHelpful?
Q&As
Q: This pump comes with a 20-40 PSI pressure switch can a 40-60 PSI pressure switch be installed on this pump.
a year ago- A: Hi Woody! That is a great question. Please contact the manufacturer for this information at 800-584-8089; 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.a year agoHelpful?
Q: How do I get repair kit for this pump
2 years ago- A: Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.2 years agoHelpful?
