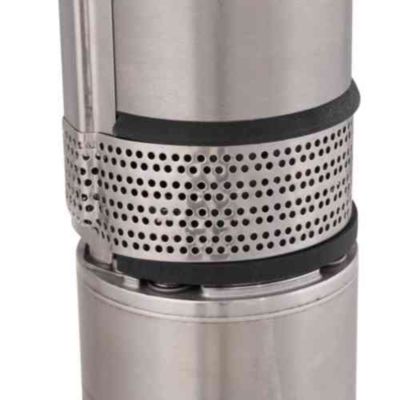

ECO-FLO Products Inc. 3/4 HP 230V Electric 4 in. Submersible Deep Well Pump, 11.5 GPM, 2-Wire
$449.99
ECO-FLO Products Inc. 3/4 HP 230V Electric 4 in. Submersible Deep Well Pump, 11.5 GPM, 2-Wire
Online Only
ECO-FLO Products Inc. 3/4 HP 230V Electric 4 in. Submersible Deep Well Pump, 11.5 GPM, 2-Wire
Item # 1168374
$449.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Online Only
ECO-FLO Products Inc. 3/4 HP 230V Electric 4 in. Submersible Deep Well Pump, 11.5 GPM, 2-Wire
Item # 1168374
$449.99
or
or
$38/mo.† suggested payments with 12 Months Financing or earn $22 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.

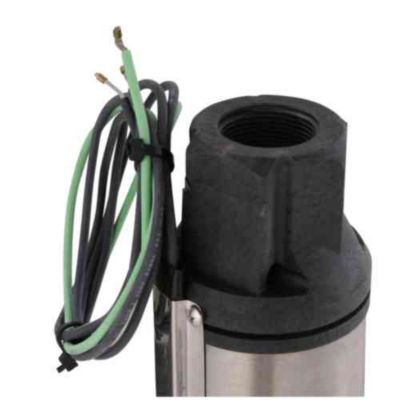

The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. This submersible well pump offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Stainless-steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless-steel pump housing for maximum protection against corrosion
- Stainless-steel splined shaft
- Submersible well pump with hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 5.9 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 0 N/A |
| Discharge Rate at 25 ft. | 0 N/A |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 1/2 HP, 115V - 10 GPM Provides Smooth Water Passages for Maximum Efficiency 11/4 in. FNPT Discharge Cast Iron Discharge Connection, includes Built-in Check Valve |
| Horsepower | 0.75hp |
| Inlet Connection | None |
| Inlet Diameter | 0 N/A |
| Maximum Flow Rate | 11.5 GPM |
| Maximum Head Lift | 175 ft. |
| Maximum Operating Depth | 175 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 26.5 in. |
| Product Length | 22.1 in. |
| Product Weight | 23.6 lb. |
| Product Width | 3.5 in. |
| Motor Type | Faradyne |
| Voltage | 230v |
| Warranty | 1 Year |
| Manufacturer Part Number | EFSUB7-122 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 11 Questions
Newest questions
Q: Will this work in a 4 inch casing?
2 years ago1 Answer
- A: Compatible Well Diameter 4 in.2 years agoHelpful?
Q: Can you remove the internal check valve?
3 years ago1 Answer
- A: Hi! For this specific inquiry please contact the manufacturer. For parts or assistance, call ECO-FLO Customer Service at 1-877 326-35613 years agoHelpful?
Q: What pump will deliver 6 gpm uphill to a Ritchey water fountain from a spring box 1026' away. The altitude increases 109 ft. Is a pressure tank also required?
3 years ago1 Answer
- A: Hi there, Thanks for reaching out. For such a specific inquiry, please reach out to Eco-Flo Products directly for recommendations for your specific situation. You can reach them with the following information- (877) 326-3561 or visit their website at https://ecofloproducts.com/support/3 years agoHelpful?
Q: what pump do I need to deliver from 500 feet
4 years ago1 Answer
- A: The largest 4” submersible well pump we offer is a 1.5hp. the recommend depth for this item would be between 200 – 300’ (pumps 12.5 to 8.1 gpm).4 years agoHelpful?
Q: What will be the gpm at 75 ft.?
5 years ago1 Answer
- A: Thank you for your question! The user manual only gives the GPM for 100 - 175ft. At 100 ft the GPM would be 11.5. For more information, you would need to contact the manufacture directly.5 years agoHelpful?
Q: Going to use the pump in a cistern tank for lawn watering from ditch water. A lawn expert says they use these types all the time. Any suggestions greatly appreciated
7 years ago1 Answer
- A: This pump will do the job provided that you ensure that solids are prevented from entering the pump / clogging the inlet screen. You will also need to regulate the pressure and flow to match the rating of any downstream components. Thanks, ECO-FLO Customer Service7 years agoHelpful?
Q: what is the GPM of this unit
7 years ago1 Answer
- A: Kenney This pump will produce 10 gpm at 150'. Thanks Customer Service7 years agoHelpful?
Q: 3 or 4 wire? Looking for 1/2 hp 220v 3 wire
7 years ago1 Answer
- A: robertrdr The EFSUB7-122 is a 3/4 hp 2-wire pump. The 1/2 hp model is EFSUB5-122. Thanks Customer Service7 years agoHelpful?
Q: will a 3/4 hp. pump work at 200ft.
9 years ago1 Answer
- A: This pump will work at a depth between 100 – 175’. A 1 hp pump for 200’ would be suggested for a deep well.9 years agoHelpful?
Q: what is the weight of the pump ?
Anonymous9 years ago1 Answer
- A: The ECO-FLO EFSUB7-122 weighs approximately 25.4lbs.9 years agoHelpful?
