Cub Cadet XT1 LT46FAB EFI Riding Mower, 13A9A1CN009

SKU: 120460699
Cub Cadet XT1 LT46FAB EFI Riding Mower, 13A9A1CN009
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.5
4.5
 (64)

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 3 days.
This product may require up to 3 additional days for order processing prior to shipping.
Change Delivery Location
Note: This product cannot be shipped to CA
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

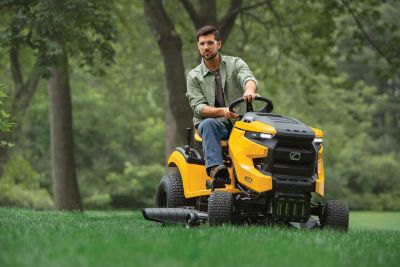

The advanced cutting system of the Cub Cadet XT1 LT46FAB EFI Riding Mower features a fully welded fabricated deck for unsurpassed performance - perfect for larger properties. The mower is equipped with the new Cub Cadet Certified Electronic Fuel Injection Engine that helps save fuel and requires less maintenance.

  • 547cc Cub Cadet EFI engine with push button start

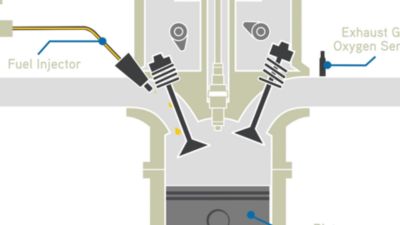

  • Electronic Fuel Injection Engine - Up to 25% less fuel consumption, fewer fill-ups, cuts fuel costs, reduces emissions, fewer oil changes, no carburetor upkeep, no winterizing!
  • 46 in. A heavy-duty fabricated deck with reinforced leading edges, trim side and an AeroForce cutting system has been independently tested and proven to deliver a best-in-class cut. Protected by the Cub Cadet Triple Guard Corrosion Defense System with E-Coat
  • Fully robotically-welded frame with new e-coating corrosion defense system (5-year limited warranty)
  • Tuff Torq foot-controlled hydrostatic transmission (K46)
  • Optimized steering system, manual sector and pinion/16 in.
  • Heavy-duty cast-iron (5-year limited warranty/unlimited hours)
  • Heavy-duty 3/4 in. through machined bushings
  • Fully-adjustable/Automotive-style ball joints
  • 3/4 in. w/dual PM steel drive hubs
  • Front pivot, High impact hood with quick removal design
  • System Monitor Package - Digitial hour meter/service minder, oil, battery, brake and PTO start sequence
  • Flywheel Alternator Charging System - 12 amp regulated
  • LED High Illumination Head Lights
  • Automotive-style disc breaks
  • Neutral Start, operator presence, reverse safety switch, brake pedal lock, RevTek reverse mowing technology
  • Electronic fingertip engagement PTO clutch
  • Cub Comfort high-back seat with 10 degree incline and slide
  • Fuel Tank Capacity 3 gal. easy fill, rustproof
  • Tires (Front/Rear) 15 in. x 6 in. sleeve bearing/20 in. x 8 in.
  • Engine Oil Capacity 1.8 qt.
  • Deck Pulleys Split steel spindle pulleys/oversized heavy-duty idlers
  • Deck Spindles 3/4 in. with steel cap and Triple Lip Sealed
  • Deck Attach/Removal QuickAttach (no tools required)
Warranty 3-year unlimited hours (includes powertrain) & 5-year chassis & front axle unlimited hours

Specification Description
Cutting Width: 46 in.
Drive Type: Tuff Torq foot-controlled hydrostatic transmission (K46)
Front Tire Size: 15 in. x 6 in.
Horsepower: 0 na
Product Length: 68 in.
Type: Riding Lawn Mower
Number of Speeds: foot-controlled hydrostatic
Yard Size: Up to 2 + acres/flat to slight hills
Deck Thickness: 0 na
Cutting Width: 46 in.
Product Height: 42.5 in.
Product Height: 42-1/2 in.
Seat Back Height: Cub Comfort high-back seat with 10 deg. incline and slide
Deck Type: Fabricated
Cylinder: Single
Discharge Location: Side
Power Type: Gas
Engine Displacement: 547 cc
Oil capacity: 1.8 qt.
Turning Radius: 16 in.
Warranty: 3-year unlimited hours (includes powertrain) & 5-year chassis & front axle unlimited hours
Deck Material: Steel
Rear Tire Size: 20 in. x 8 in.
Steering Type: Optimized steering system, manual sector and pinion/16 in.
Product Length: 68 in.
Product Weight: 430 lb.
Brand: Cub Cadet
Terrain Type: Up to 2+ acres/flat to slight hills
Recommended Fuel Type: Unleaded 4-Cycle
Engine Type: Electronic Fuel Injection
PTO: Electric
Recommended Engine Oil: 10W30
Transmission: Hydrostatic
Intended Use Grade: Residential
Special Feature(s): Electronic Fuel Injection Engine
Cut Height Range: 1 in. - 4 in.
Deck Size: 46 in.
Rear Wheel or Tire Size: 20 "x 8 in.
Maximum Forward Speed: 5.5 mph
Number of Blades: 2
Front Wheel or Tire Size: 15 "x 6 in.
Part Number: 13A9A1CN009
Product Width: 53 in.
Product Width: 54 in.
CountryofOrigin: Made in USA
Product Weight: 471 lb.
Blade Speed: 0 n a
Deck Type: Double Blade
Number of Cylinders: 1
Material: Steel
Maximum Reverse Speed: 3.1 mph
Number of Deck Positions: 12
Blade Engagement: Electric
Engine Brand: Cub Cadet
Turn Radius: 16 in.
Fuel Capacity: 3 gal.
Color: Yellow
Number of Deck Wheels: 4
Fuel Capacity: 3 gal.
Start Type: Electric push button start
Torque: 0 na
Manufacturer Part Number 13A9A1CN009
Cub Cadet XT1 LT46FAB EFI Riding Mower, 13A9A1CN009 is rated 4.5 out of 5 by 64.
Rated 5 out of 5 by from More than satisfied after 2 years Researched and picked this model as I wanted a fabricated deck due to sandy soil and I was sick of replacing the stamped deck on my 25+ year old used rider. If you want a status symbol go ahead and purchase something green and yellow but good luck finding a fabricated deck. It came down to this one and an orange and black machine that was more expensive. I picked this one and after 2 years I am extremely satisfied with my purchase. My one and only complaint is a need to relevel the deck more than I would like having to but I also do not mow a manicured sod city lawn. .
Date published: 2020-04-26
Rated 5 out of 5 by from Its a beast. So far this cub cadet has been the best riding mower yet. It cuts the grass even all the way thru the 4 acres. Our cub cadet turning is awesome. Its a beast in our yard.
Date published: 2020-04-18
Rated 5 out of 5 by from Awesome mower This is the best mower ive ever owned tight turns!!!
Date published: 2019-10-19
Rated 5 out of 5 by from Happy customer I am so satisfied with my mower. I can get on it and go.
Date published: 2019-09-03
  • y_2020, m_5, d_30, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_21, tr_43
  • loc_en_US, sid_120460699, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • REVIEWS, PRODUCT

Will a 50" deck mount ok to this tractor?

Asked by: Rob fitz
Hello Rob fitz. This Cub Cadet XT1 LT46FAB EFI Riding Mower will not accommodate a 50" cutting deck. Thank you for your question.
Answered by: CubCadet
Date published: 2017-07-29

What is the turning radius

Asked by: Oldmanjack
Hello Oldmanjack. The turn radius is 16". Thank you for your question.
Answered by: CubCadet
Date published: 2019-09-09

what is the equivalent HP rating of the EFI single cylinder

Asked by: Amymows
Hello. Variations in engine testing specifications over the years have resulted in vague and inconsistent horsepower measurements. Horsepower rating relates to various engine-driven product applications and is inconsistent between engine manufacturers and the final product that is manufactured using that engine. Because of that inconsistency, the engine manufacturer rates this engine by CC’s (cubic centimeters), which is measured by the displacement of the engine’s cylinder bore. There is no direct mathematical conversion to calculate engine horsepower to engine displacement. Thank you for your question!
Answered by: CubCadet
Date published: 2020-04-04

we purchased our Cub Cadet LT46 547CC EFI approximately one month ago from TSC - we are hearing a clicking noise when the PTO is engaged. What is the clicking noise?

Asked by: Faith44256
Hello. We recommend giving us a call at 1(877) 428-2349 to speak with a technician who can walk you through the troubleshooting process. Thank you.
Answered by: CubCadet
Date published: 2019-06-12

How does the reliability of this efi single cylinder vs kohler twin cylinder compare. I cant find any info on how the power of the efi engine vs the kohler 22hp twin compares. Is more or less?

Asked by: Nathan62390
Hello Nathan62390. There is no real way to compare power of the EFi single cylinder versus the standard twin cylinder model. EFI stands for Electronic Fuel Injection. There is no carburetor which means less oil changes necessary. There is no choke or throttle. The unit will start in all weather conditions. There is no need to drain the fuel tank during the off season. It provides reduced emissions. Also it uses 25% less fuel. Thank you for your question.
Answered by: CubCadet
Date published: 2019-08-22

How do yoy remove the hood on th XT1?

Asked by: Claxton
Hello Claxton. We recommend that you contact Cub Cadet directly for an owners manual for information on how to remove the hood on your unit. The contact number for Cub Cadet is located directly on the Cub Cadet website. Thank you for your question.
Answered by: CubCadet
Date published: 2018-11-14

I like this unit because of the fabricated deck, however the xt146 says it handles hills better Is the transmission the same in both

Asked by: Texas_ty
Hello Texas_ty. The XT1 LT46 and the XT1 LT46 FAB EFI both have the K46 transmission assembly. Thank you for your question.
Answered by: CubCadet
Date published: 2019-05-21

is this mower a hydrostatic mower?

Asked by: jimla
Hello jimla. Our Cub Cadet XT1 LT46FAB EFI Riding Mower has a hydrostatic transmission. Thank you for your question.
Answered by: CubCadet
Date published: 2019-04-20
