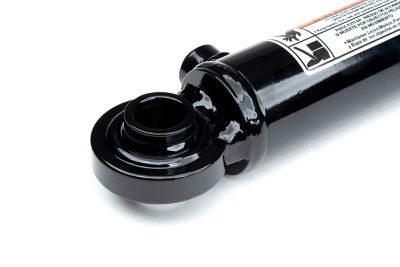

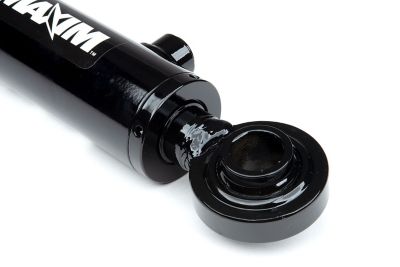

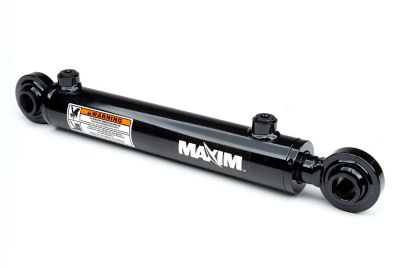

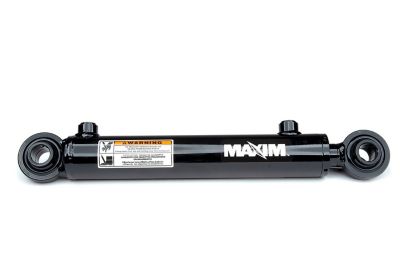

Maxim WSB Swivel Ball Welded Cylinder, 1 Bore x 12 in. Stroke, 0.625 in. Rod Dia.

SKU # 130779999
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

The Maxim WSB Swivel Ball Welded Cylinder with 1 Bore x 12 in. Stroke and 0.625 in. Rod Dia. features swivel ball mounts, which make it great for use on compact equipment. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. The Maxim WSB is available in bore sizes from 1 in. to 3 in. and strokes from 4 in. to 36 in.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Piston Lock Nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube Seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod Seal: U-cup
  • Wiper: polyurethane
  • End Mounts: spherical
  • All Seals: manufactured to US specifications
  • Ports: O-ring boss
  • Paint: black

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Material: Steel
Pin Diameter: 0-1/2 in.
Bore Diameter: 1-1/2 in.
Port Size: SAE 6
Warranty: 1 Year
Product Weight: 7 lb.
Brand: Maxim
Product Type: Hydraulic Cylinders
Special Feature: Welded cylinder with swivel end ball mounts
Includes: Pins and clips
Maximum Weight Capacity: 2350 lb.
Type: Welded Hydraulic Cylinder
Package Quantity: 1
Application: For use in double or single acting hydraulic applications.
Maximum Operating Pressure: 3000 PSI
Rod Diameter: 2 in.
Manufacturer Part Number 400504
