Chief 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter

3.45 Reviews

Item # 1307785

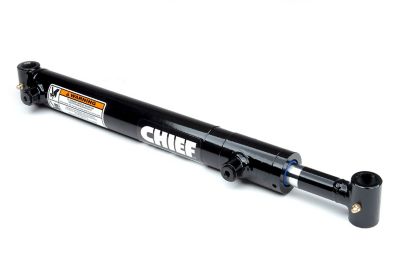

Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter

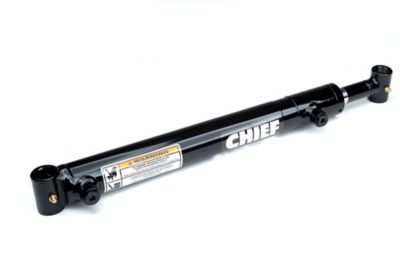

Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter

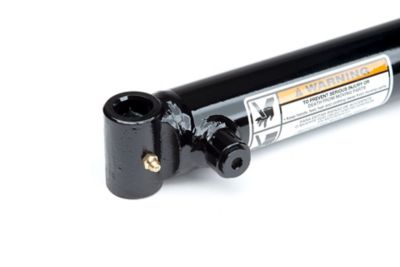

Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
$179.99

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter

3.45 Reviews

Item # 1307785

Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Image showing 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
$179.99

See 2 deals for this item

This item is available online only

Delivering to

20147

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Looking for small bore hydraulic cylinders? The Chief 1.5 in. Bore x 20 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
  • Intended for use as a double acting hydraulic cylinder
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: honed steel
  • Rod: hard chrome-plated
  • End mounts: cross-tubes
  • Tube seal: Buna O-ring with polytemp hytrel back-up
  • Rod seal: polyurethane U-cup
  • Rod wiper: polyurethane, snap-in
  • Piston seal: 755 with wear rings, (2 each) wear bearings
  • All seals are manufactured to USA specifications
  • Ports: SAE O-rings
  • Paint: black; custom colors are available
  • Individually poly bagged for easy transport
  • Small bore hydraulic cylinder measures 28 in. retracted and 47 in. extended
  • 3,000 PSI operating range
  • Small bore hydraulic cylinder measures 28 in. retracted and 47 in. extended
  • Pin diameter of 0.75 in. and rod diameter of 1 in.
  • 3 year warranty
