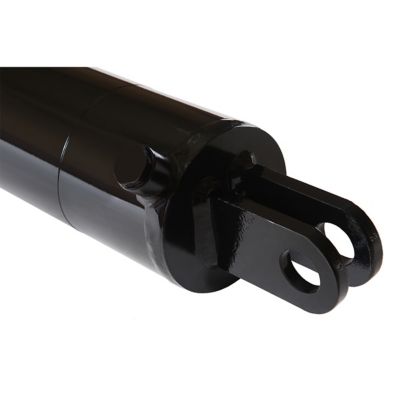

Built for strength and performance, the Magister Hydraulics Welded Log Splitter Cylinder features a 4-inch bore, 24-inch stroke, and is rated up to 3500 PSI. It comes equipped with a welded clevis base mount and a drilled pin-hole rod end for secure, stable installation. This universal replacement ram is compatible with a wide range of log splitter brands, including Champion, YARDMAX, CountyLine, Huskee, SuperHandy, BOSS, and others.
- Extreme Load Capacity: Welded clevis mount base end, 4.5 honed cold-drawn tubing, 1.75 chrome-plated rod (steel 1045) with drilled pin-hole rod end for easy mounting and top-quality piston seals make it capable of handling heavy loads with a 24 stroke.
- Wide Range Hydraulic Applications: Ideal for wood processing tasks, this cylinder delivers high force for splitting logs efficiently and reliably. Commonly used in residential and commercial log splitters, it features a rod-end pin for secure attachment and easy integration into both horizontal and vertical splitter designs.
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- 2-year warranty
- Same Day Shipping
- Made in Europe
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 58.5 in. |
| Hydraulic Cylinder Type | Welded Double Acting |
| Maximum Operating Pressure | 3,500 PSI |
| Maximum Weight Capacity | 36,943 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 0.5625 in. |
| Port Size | 12" NPT |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 38 in. |
| Product Weight | 67 lb. |
| Product Width | 6 in. |
| Retracted Length | 34.5 in. |
| Rod Diameter | 1.75 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 24 in. |
| Warranty | 2 years |
| Manufacturer Part Number | WLS 4x24 |
