Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Online Only
Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Item # 1307737
$279.99
or
or
Neighbor’s Club Members earn points with purchases.
Online Only
Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Item # 1307737
$279.99
or
or
$47/mo.† suggested payments with 6 Months Financing or earn $13 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Set up is easy because the welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black for simple charm
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube is precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod is made to last
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

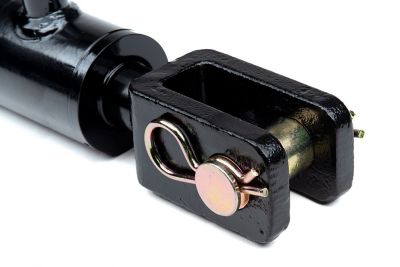

- End mounts: cast female clevises with pins and clips included
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Versatile and long lasting hydraulic cylinder has a 3 in. bore and 24 in. stroke length
- Welded cylinder has a retracted length of 34.25 in. and extended length of 58.25 in.
- Column load: 21,200 lb.
- Weight: 37.48 lb.
- Maximum PSI: 3,000 PSI
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 58.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 16,760 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 37.48 lb. |
| Product Width | 0 N/A |
| Retracted Length | 34.25 in. |
| Rod Diameter | 1-1/2 in. |
| Stroke Distance | 24 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288436 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: What is the inside width of the clevis mount?
3 years ago1 Answer
- A: Width between both clevis’s ears are 1.125”3 years agoHelpful?
Q: Is this in stock?
3 years ago1 Answer
- A: yes it is available at the time of this response, to order from our Tractor Supply website.3 years agoHelpful?
Q: Need a replacement Hydraulic lift cylinder for a John Deere 541 loader. Will this work for that?
3 years ago1 Answer
- A: Hi Old Joe48, This item is classified as compatible with any brand, I would check your John Deere manual or reach out to them at Customer Service at 1-800-356-9033 Monday through Friday from 7:00 a.m. to 6:00 p.m. or Saturdays from 8:00 am to 12:00 p.m. Central Time.3 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: What is the inside width of the clevis mount?
3 years ago1 Answer
- A: Width between both clevis’s ears are 1.125”3 years agoHelpful?
Q: Is this in stock?
3 years ago1 Answer
- A: yes it is available at the time of this response, to order from our Tractor Supply website.3 years agoHelpful?
Q: Need a replacement Hydraulic lift cylinder for a John Deere 541 loader. Will this work for that?
3 years ago1 Answer
- A: Hi Old Joe48, This item is classified as compatible with any brand, I would check your John Deere manual or reach out to them at Customer Service at 1-800-356-9033 Monday through Friday from 7:00 a.m. to 6:00 p.m. or Saturdays from 8:00 am to 12:00 p.m. Central Time.3 years agoHelpful?
