Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI

4.73 Reviews

Item # 130764299

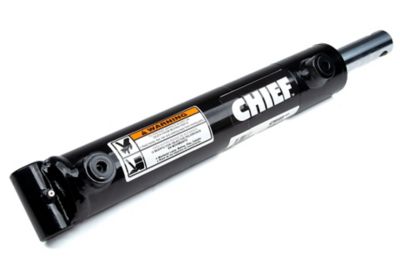

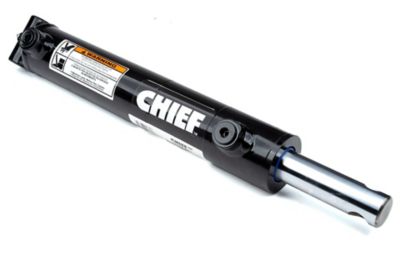

Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
$151.20

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI

4.73 Reviews

Item # 130764299

Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
Image showing 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod, 1 in. Rod Diameter, 3,000 PSI
$151.20

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 1.5 in. Bore x 4 in. Stroke WP Welded Cylinder with Pin-Eye Rod is a very versatile welded hydraulic cylinder. The rod end comes with a drilled pin-hole and can easily be customized to fit your rod end of choice. Ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment, you can trust this hydraulic cylinder. SAE 8 O-ring ports means easy hookup, and the cylinder comes functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Welded hydraulic cylinder ideal for construction and agricultural applications as well as other industries like OEM manufacture of trailers, metal fabricating and waste/recycling equipment
  • SAE 8 O-ring ports for easy hookup
  • For use in double acting hydraulic cylinder or single acting hydraulic cylinder applications
  • All seals and manufactured to US specifications
  • 3-year limited warranty
  • Piston: ductile iron with wear ring
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision honed steel
  • Rod: hard chrome plated
  • Base end mount: steel cross-tube with grease zerk
  • Tube seal: Buna O-ring with Polytemp hytrel backup
  • Rod wiper: Urethane, snap-in
  • Individually poly bagged for ease of transport
  • Piston seal: Hallite 755 provides prolonged wear resistance with wear ring
  • 3,000 PSI operating range
  • Measures 11 in. retracted and 15 in. extended
  • Rod end mount: Rod eye drilled
  • Column load: 5,300 lb.
  • Rod seal: deep polypak with B lip design
  • Pin diameter of 0.625 in. and rod diameter of 1 in.
