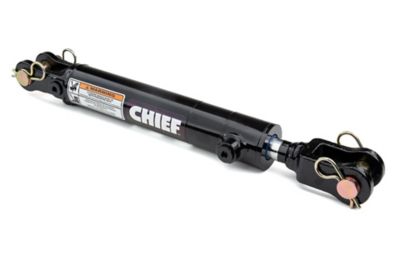

Chief 3 in. Bore x 8 in. ASAE Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter
$159.99
Chief 3 in. Bore x 8 in. ASAE Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter
Chief 3 in. Bore x 8 in. ASAE Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter
Item # 130793799
$159.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Chief 3 in. Bore x 8 in. ASAE Stroke AT Alternative to Tie-Rod Cylinder, 1.25 in. Rod Diameter
Item # 130793799
$159.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Chief 3 in. Bore x 8 in. ASAE Stroke AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the cylinder's seals. This welded hydraulic cylinder provides value pricing without sacrificing quality. Before being sold, the hydraulic cylinder undergoes rigorous testing to ensure maximum reliability and performance.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Rugged ductile iron welded clevis design for longevity
- Standard SAE #8 ports are used on this welded hydraulic cylinder
- 3,000 PSI seal kits for extended life
- Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
- Optional SAE #8 third port location (for 90 degree use)
- Hard chrome-plated rod for the most extreme applications
- Precision-welded piston for durability
- Gloss black paint finish
- Use as single acting hydraulic cylinder or as double acting hydraulic cylinder
- Measures 20.25 in. retracted and 28.25 in. extended
- Column load: 21,200 lb.
- Pin diameter of 1 in. and rod diameter of 1.25 in.
- 1 year warranty
- Maximum PSI: 3,000 PSI
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 3 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 28.25 in. |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 21,200 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 19.8 lb. |
| Product Width | 0 N/A |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1.25 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 8 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 297121 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: What is the OD of this cylinder , mine is just under 3” and it’s tight in clearance
a month ago2 Answers
- A: Howdy neighbor! The outer diameter (OD) of the Chief 3 in. Bore AT Alternative to Tie-Rod Cylinder is exactly 3.5 inches, which may be too large for your existing clearance if your current cylinder is just under 3 inches.a month agoHelpful?
Q: This cylinder indicates to is manufactured to work as a double or single action cylinder. If operating as a single action, what other parts are needed, e.g. vent plug, etc?
5 years ago1 Answer
- A: The only item required to use the 297121 in single acting mode is the addition of a breather plug on the rod end of the cylinder (if powering up on the base end.) We would recommend Bailey part number 237257, which you can Special Order at your local TSC Store.5 years agoHelpful?
Q: What is retracted center of pin to center of pin?
6 years ago1 Answer
- A: The retracted length is 20.25”.6 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: What is the OD of this cylinder , mine is just under 3” and it’s tight in clearance
a month ago2 Answers
- A: Howdy neighbor! The outer diameter (OD) of the Chief 3 in. Bore AT Alternative to Tie-Rod Cylinder is exactly 3.5 inches, which may be too large for your existing clearance if your current cylinder is just under 3 inches.a month agoHelpful?
Q: This cylinder indicates to is manufactured to work as a double or single action cylinder. If operating as a single action, what other parts are needed, e.g. vent plug, etc?
5 years ago1 Answer
- A: The only item required to use the 297121 in single acting mode is the addition of a breather plug on the rod end of the cylinder (if powering up on the base end.) We would recommend Bailey part number 237257, which you can Special Order at your local TSC Store.5 years agoHelpful?
Q: What is retracted center of pin to center of pin?
6 years ago1 Answer
- A: The retracted length is 20.25”.6 years agoHelpful?
Similar Items
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
Items You May Like
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
Customers Also Bought
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
Reviews
- quality
1 to 4 of 4 Reviews .
1 – 4 of 4 Reviews
Most Recent
Arkansas
Review 1
4 out of 5 stars.
Good product but no length adjustment
2 years ago
Good product with quality brand name. I failed to notice this was not a tie-rod end cylinder. So there is no adjustment.
Yes, I recommend this product.
Flynts Machine Shop
Pelham Georgia
Review 1
5 out of 5 stars.
Great Cylinders
3 years ago
Farmers use these cylinders and they hold up fine!!
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
Flynts Machine Shop
Pelham Georgia
Review 1
5 out of 5 stars.
Great Cylinder
3 years ago
I sell these cylinders to the farmers and they hold up well!!’
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
Review 1
5 out of 5 stars.
Thumbs up
5 years ago
Almost perfect fit. My old cylinder had pipe thread ports and the new cylinder has Oring boss ports. Just had to buy Oring boss fittings.
