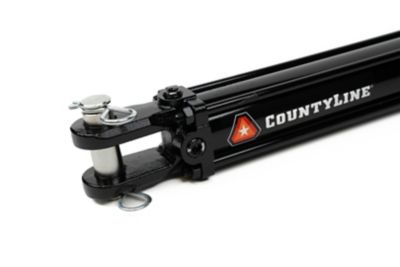

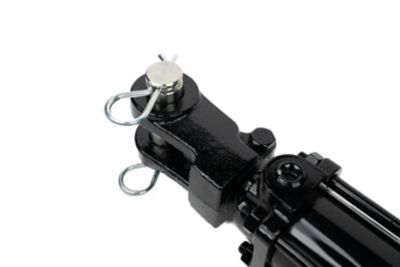

CountyLine 2 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 1.125 in. Rod Diameter, 2,500 PSI
Exclusive
CountyLine 2 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 1.125 in. Rod Diameter, 2,500 PSI
Item # 1265631
Stocked & Ready
$329.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
Exclusive
CountyLine 2 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder, 1.125 in. Rod Diameter, 2,500 PSI
Item # 1265631
Stocked & Ready
$329.99
or
or
$50/mo.† suggested payments with 6 Months Financing or earn $14 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 2 in. Bore x 10 in. Stroke Tie Rod Hydraulic Cylinder is designed for rugged agricultural applications. This hydraulic cylinder is well suited to perform in demanding applications in any industry. The tie rod hydraulic cylinder offers a 2,500 PSI operating range.
- 2 in. bore x 10 in. stroke
- Hydraulic cylinder has a 2,500 PSI operating range
- Used for agricultural applications
- Tie rod hydraulic cylinder exceeds industry standards
- 1.125 in. rod diameter
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Unknown |
| Extended Length | 30.25 in. |
| Maximum Operating Pressure | 2,500 PSI |
| Maximum Weight Capacity | 7,850 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 38 NPT |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 20.25 in. |
| Product Weight | 19 lb. |
| Product Width | 0 N/A |
| Retracted Length | 30.25 in. |
| Rod Diameter | 1.125 in. |
| Stroke Distance | 10 in. |
| Manufacturer Part Number | 318306 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions

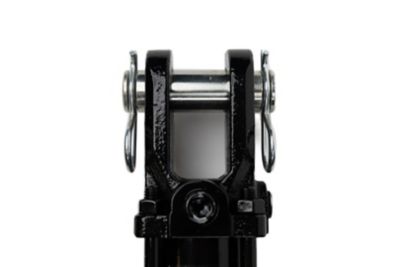

Q: What do the spaces measure between the mounting ears/tabs on both ends? and what diameter are the mounting pins?
5 months ago1 Answer
- A: The pins are 1" and the space in between the clevis ears is 1.165" on both ends.5 months agoHelpful?
Q: Bought a new county line 2.5x16” and it won’t come out
2 years ago1 Answer
- A: Return to your local TSC store.2 years agoHelpful?
Q: What is total length when extended fully?
2 years ago1 Answer
- A: The extended length, which is from the center of the pin on the base end, to the center of the pin on the rod end is 30.25"2 years agoHelpful?
Q: what is closed pin to pin length?
3 years ago1 Answer
- A: 318306 - Retracted dimension is 20.25". That is closed, pin center to pin center3 years agoHelpful?
Q: Can you rotate the position of the cylinder by unbolting the 4 long rods to position the hydraulic fuild inlets?
4 years ago1 Answer
- A: Yes. The nuts can be unscrewed and either the base end or the gland end taken off and rotated whatever direction is needed.4 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: What do the spaces measure between the mounting ears/tabs on both ends? and what diameter are the mounting pins?
5 months ago1 Answer
- A: The pins are 1" and the space in between the clevis ears is 1.165" on both ends.5 months agoHelpful?
Q: Bought a new county line 2.5x16” and it won’t come out
2 years ago1 Answer
- A: Return to your local TSC store.2 years agoHelpful?
Q: What is total length when extended fully?
2 years ago1 Answer
- A: The extended length, which is from the center of the pin on the base end, to the center of the pin on the rod end is 30.25"2 years agoHelpful?
Q: what is closed pin to pin length?
3 years ago1 Answer
- A: 318306 - Retracted dimension is 20.25". That is closed, pin center to pin center3 years agoHelpful?
Q: Can you rotate the position of the cylinder by unbolting the 4 long rods to position the hydraulic fuild inlets?
4 years ago1 Answer
- A: Yes. The nuts can be unscrewed and either the base end or the gland end taken off and rotated whatever direction is needed.4 years agoHelpful?
