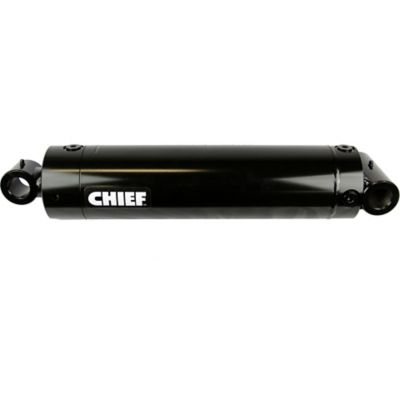

Chief WX Welded Hydraulic Cylinder, 3.5 Bore x 14 Stroke

SKU # 130478599
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

The patented CHIEF WX is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. The adjustable 360° rotating gland allows you to make port alignments as needed. All ports are recessed to maximize an already slender cylinder design. One port is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction. The CHIEF WX has become the cylinder of choice in applications where the same size cylinder can be used in a variety of directions and port positions, thereby eliminating the need to stock assorted cylinders.

  • Every CHIEF WX cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
  • WX cylinders have a 3,000 PSI operating range
  • 3 year limited warranty

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Brand: Chief
Pin Diameter: 1 in.
Product Height: 4 in.
Product Weight: 41 lb.
Type: Welded Cylinder
Package Quantity: 1
Special Feature: 418 degree rotating gland
Product Type: Hydraulic Cylinders
Bore Diameter: 3-1/2 in.
Port Size: SAE 8
Material: Iron/Steel
Maximum Weight Capacity: 28860 lb.
Warranty: 3 Year
Maximum Operating Pressure: 3,000 PSI
Includes: Mounting pins and clips
Product Length: 4 in.
Rod Diameter: 1-3/4 in.
Application: Double-acting
Product Width: 5-1/4 in.
Manufacturer Part Number 207466
