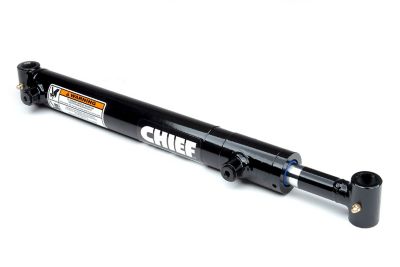

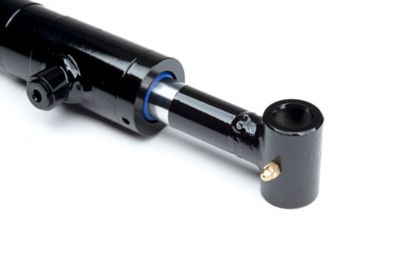

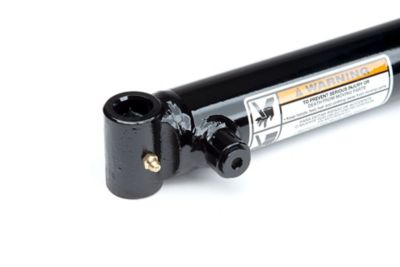

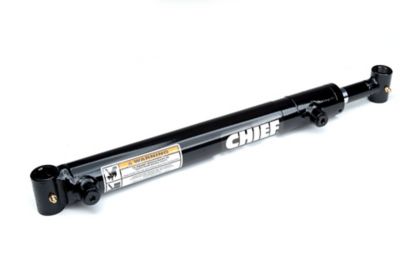

Chief 2.25 in. Bore x 23.25 in. Stroke LD Loader Welded Cylinder, 1.5 in. Rod Diameter
Online Only
Item # 1307789
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1307789
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Looking for small bore hydraulic cylinders? The Chief 2.25 in. Bore x 23.25 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End mounts: cross-tubes
- Tube seal: Buna O-ring with polytemp hytrel back-up
- Rod seal: polyurethane U-cup
- Rod wiper: polyurethane, snap-in
- Piston seal: 755 with wear rings, (2 each) wear bearings
- All seals are manufactured to US specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Individually poly bagged for easy transport
- Small bore hydraulic cylinder measures 30.25 in. retracted and 53.5 in. extended
- 3,000 PSI operating range
- Column load: 11,920 lb.
- Pin diameter of 1.25 in. and rod diameter of 1.5 in.
- 3 year warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2.25 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Cylinder Size | 0 N/A |
| Extended Length | 53.5 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 11,920 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1.25 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.63 in. |
| Product Length | 7 in. |
| Product Weight | 29.98 lb. |
| Product Width | 1.5 in. |
| Retracted Length | 30.25 in. |
| Rod Diameter | 1.5 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 23.25 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 288608 |
Q: What is the pin diameter
a month ago- A: The pin diameter is 1.25 inches.a month agoHelpful?
Q: Will these work as replacements on a branson BL200 loader
a year ago- A: Unfortunately we cannot determine with certainty that our loader cylinder is a good replacement for the BL200 without more information on the cylinders being replaced, such as retracted and extended, stroke, mount pin hole size, crosstube width (as it fits between the mount ears), and rod diameter. From what images we can find of the BL200 we do see some physical differences between the factory cylinder and ours. Also note that, since an exact match between the incoming and outgoing cylinders is unlikely, you may want to replace both to maintain even movement.a year agoHelpful?
Q: Will these cylinders work on a Mahindra Model ML 260 Front End Loader?
2 years ago- A: Brand Compatibility Universal2 years agoHelpful?
Q: Would this fit on a 1997 New Holland Lx665 skid steer for the bucket cylinders?
3 years ago- A: Brand Compatibility Universal3 years agoHelpful?
Q: what is the bore on the cylinder?
4 years ago- A: Bore Diameter 2-1/4 in.4 years agoHelpful?
Q: What is the pin size
4 years ago- A: The Pin is 1.25 in4 years agoHelpful?
Similar Items
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
Items You May Like
-
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
Reviews
- performance
- price
- purchase
- small
- warranty
Great cylinders
Yes, I recommend this product.
Excellent replacement for my John Deere 40 Loader
Yes, I recommend this product.
