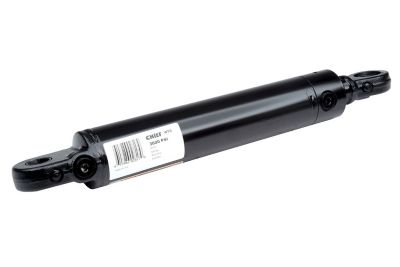

Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.375 in. Rod Diameter
Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.375 in. Rod Diameter
Item # 1307834
$349.99
Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder, 1.375 in. Rod Diameter
Item # 1307834
$349.99
The Chief 2.5 in. Bore x 16 in. Stroke WTG Welded Tang Cylinder is an incredibly durable cylinder. It is sometimes referred to as a lug end cylinder, due to a 1-piece lug mount welded to both the rod and base ends of the hydraulic cylinder. This welded hydraulic cylinder can utilize a spherical ball or steel bushing insert to improve wear life and is most commonly used in heavy-duty construction equipment.
- Welded hydraulic cylinder is intended to be used in double-acting applications
- Piston: ductile iron, thread-on with wear ring
- Gland: keyed joint, ductile iron
- Tube: precision-honed steel
- Rod: induction-hardened, hard chrome-plated
- Rod end mount: cast 1045 steel, welded-on
- Spherical bearing with retaining ring for efficiency
- 1/8 NPT grease zerk
- Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
- Tube seal: Buna O-ring with polytemp hytrel backup
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
- All seals are manufactured to U.S. specifications
- Ports: SAE O-ring
- Measures 26 in. retracted and 42 in. extended for a versatile hydraulic cylinder
- Column load: 17,670 lb.
- Pin diameter of 1 in. and rod diameter of 1.375 in.
- 3 year limited warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 16 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,600 PSI |
| Maximum Weight Capacity | 17,670 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 29 lb. |
| Product Width | 0 N/A |
| Retracted Length | 26 in. |
| Rod Diameter | 1-3/8 in. |
| Single/Double Acting | Single acting |
| Stroke Distance | 16 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 400639 |
