Chief 1.5 in. Bore x 18 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Online Only
Chief 1.5 in. Bore x 18 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Item # 1307784
$179.99
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Online Only
Chief 1.5 in. Bore x 18 in. Stroke LD Loader Welded Cylinder, 1 in. Rod Diameter
Item # 1307784
$179.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Looking for small bore hydraulic cylinders? The Chief 1.5 in. Bore x 18 in. Stroke LD Loader Welded Cylinder is a double acting hydraulic cylinder that's designed for light-duty loaders. The welded hydraulic cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear. You can trust its quality because the cylinder has been functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Ideal for construction, agricultural and other applications and a great replacement welded hydraulic cylinder
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron
- Gland: ductile iron
- Tube: honed steel
- Rod: hard chrome-plated
- End mounts: cross-tubes
- Tube seal: Buna O-ring with polytemp hytrel back-up
- Rod seal: polyurethane U-cup
- Rod wiper: polyurethane, snap-in
- Piston seal: 755 with wear rings, (2 each) wear bearings
- All seals are manufactured to US specifications
- Ports: SAE O-rings
- Paint: black; custom colors are available
- Individually poly bagged for easy transport
- Small bore hydraulic cylinder measures 26 in. retracted and 44 in. extended
- 3,000 PSI operating range
- Column load: 5,300 lb.
- Pin diameter of 0.75 in. and rod diameter of 1 in.
- 3 year warranty
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 1.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 44 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 5,300 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 0.75 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 1 in. |
| Product Length | 8 in. |
| Product Weight | 16 lb. |
| Product Width | 2 in. |
| Retracted Length | 26 in. |
| Rod Diameter | 2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 18 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 288603 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: what is the return policy
5 months ago1 Answer
- A: If you're not satisfied with your purchase, contact us within 45 days for a return merchandise authorization number (RMA) and further instructions. Please note that returns after 15 days will incur a restocking charge of 20% and returns after 45 days cannot be accepted. Shipping and handling charges are non-refundable. For your convenience, you can request a return by contacting our Customer Service line at 800-800-1810. No returns will be accepted without prior authorization, and items must be unused and in their original condition. Bailey is not responsible for damages on returned items. Customers are encouraged to insure return packages and ship returned items in the original packaging. Charges will be incurred by the customer if products must be restored to their original condition at our facility or if accessories or parts are not returned.4 months agoHelpful?
Q: What fittings do I need
3 years ago1 Answer
- A: See the link provided for more information. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/30/77/84/1307784_Bro1.pdf3 years agoHelpful?
Q: i need a cylinder for a john deere 400cx loader tilt the bucket will this work
4 years ago1 Answer
- A: For use in double or single acting hydraulic applications.4 years agoHelpful?
Q: Will this replace the lift cylinder on a 28LA loader
5 years ago1 Answer
- A: Unfortunately, we cannot verify if the cylinder is a direct replacement for the 28LA loader. We would need to know more about the cylinder that is used on the loader. We would need to know the 28LA cylinders: Bore dia Rod dia Stroke Retracted dim Extended dim Pin size Type of mounts Type and size ports Port position (parallel or perpendicular to mounts)5 years agoHelpful?
Q: Pin diameter?
6 years ago1 Answer
- A: 0.75"6 years agoHelpful?
Q: Can this cylinder be repaired (seals)? If so, do you have part numbers of repair kits for 1.5 in. cylinder?
6 years ago1 Answer
- A: The seal kit is P/N 288650 which can be ordered through any local Tractor Supply store location.6 years agoHelpful?
Q: How long is the stroke
7 years ago1 Answer
- A: The stroke is 18" long.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: what is the return policy
5 months ago1 Answer
- A: If you're not satisfied with your purchase, contact us within 45 days for a return merchandise authorization number (RMA) and further instructions. Please note that returns after 15 days will incur a restocking charge of 20% and returns after 45 days cannot be accepted. Shipping and handling charges are non-refundable. For your convenience, you can request a return by contacting our Customer Service line at 800-800-1810. No returns will be accepted without prior authorization, and items must be unused and in their original condition. Bailey is not responsible for damages on returned items. Customers are encouraged to insure return packages and ship returned items in the original packaging. Charges will be incurred by the customer if products must be restored to their original condition at our facility or if accessories or parts are not returned.4 months agoHelpful?
Q: What fittings do I need
3 years ago1 Answer
- A: See the link provided for more information. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/30/77/84/1307784_Bro1.pdf3 years agoHelpful?
Q: i need a cylinder for a john deere 400cx loader tilt the bucket will this work
4 years ago1 Answer
- A: For use in double or single acting hydraulic applications.4 years agoHelpful?
Q: Will this replace the lift cylinder on a 28LA loader
5 years ago1 Answer
- A: Unfortunately, we cannot verify if the cylinder is a direct replacement for the 28LA loader. We would need to know more about the cylinder that is used on the loader. We would need to know the 28LA cylinders: Bore dia Rod dia Stroke Retracted dim Extended dim Pin size Type of mounts Type and size ports Port position (parallel or perpendicular to mounts)5 years agoHelpful?
Q: Pin diameter?
6 years ago1 Answer
- A: 0.75"6 years agoHelpful?
Q: Can this cylinder be repaired (seals)? If so, do you have part numbers of repair kits for 1.5 in. cylinder?
6 years ago1 Answer
- A: The seal kit is P/N 288650 which can be ordered through any local Tractor Supply store location.6 years agoHelpful?
Q: How long is the stroke
7 years ago1 Answer
- A: The stroke is 18" long.7 years agoHelpful?
Similar Items
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
Items You May Like
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Reviews
1 to 3 of 9 Reviews .
1 – 3 of 9 Reviews
Most Recent
Moorestown NJ
Review 1
5 out of 5 stars.
works like a charm
3 years ago

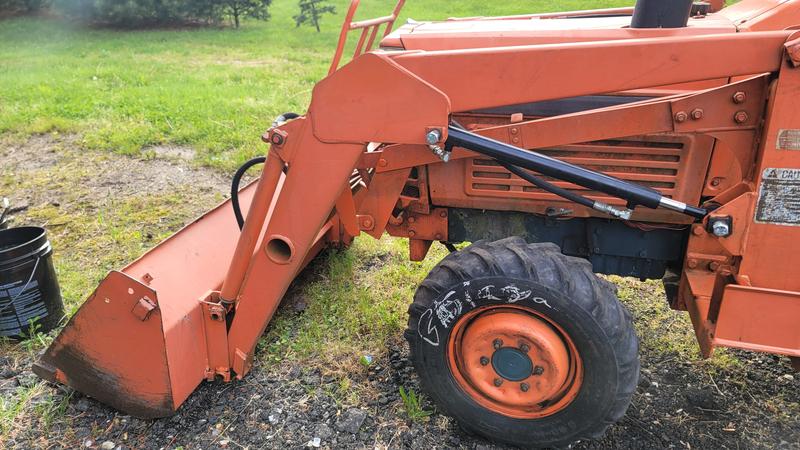

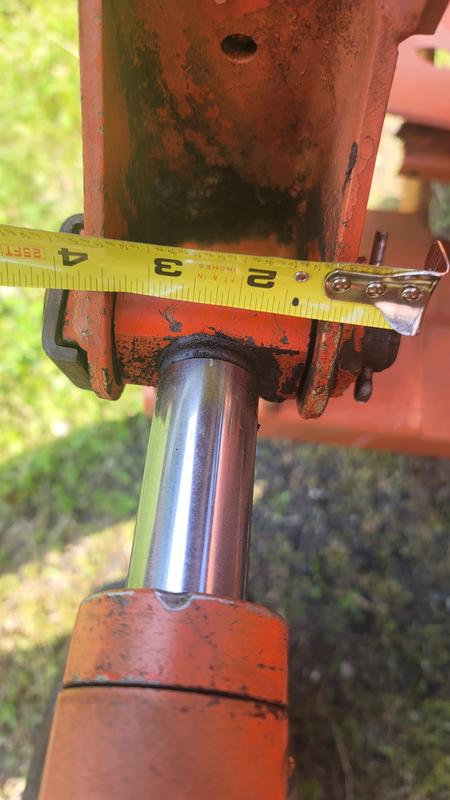

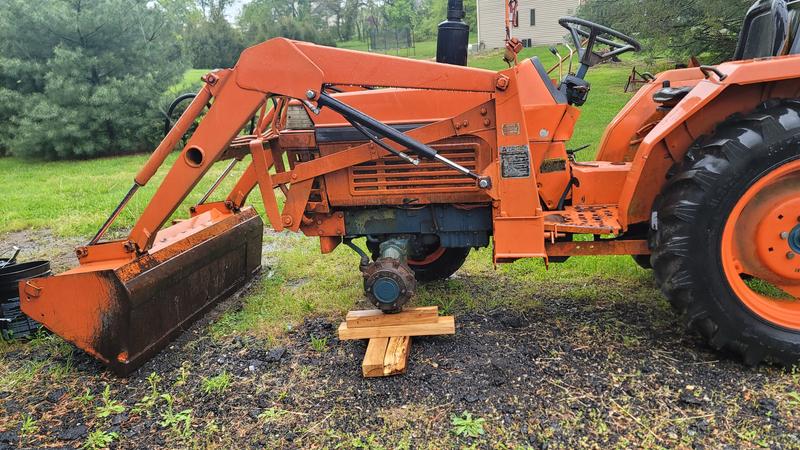

used this on Kubota Loader LA400, for the boom cylinder the only difference was the mounting pins which were 3/4inch for the new cylinder, Kubota used 1inch, so I fixed that with a couple of 3/4inch bolts and 4- 3/4" X 1" X 1" sleeves also bought a Tractor supply, fits great and works great
Yes, I recommend this product.
louisiana
Review 1
5 out of 5 stars.
kioti replacement loader cylinder
3 years ago
exactly what i needed
Yes, I recommend this product.
Doug
Pickens, SC
Review 1
5 out of 5 stars.
Excellent replacement for my John Deere 40 Loader
4 years ago
Purchased the loader hydraulic cylinders for the bucket of my John Deere 40 Loader. They perform just as well and a fraction of the cost of a new John Deere cylinder. They are actually only slightly more than rebuilding the cylinders. Although the bore is slightly smaller, cannot tell a difference in performance of the bucket. The new Chief cylinders have been used more than the rebuilt ones I had on the tractor (that started leaking) and have no issues so far. Even if they did, they have a 2 year warranty. I already picked out the Chief cylinders to replace my boom cylinders when they start leaking. The boom ones have the same bore as the old.
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
