Chief 2 in. Bore x 12 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.125 in. Rod Diameter

Item # 130783199

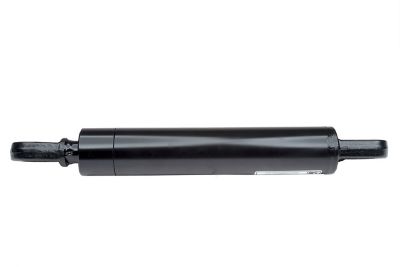

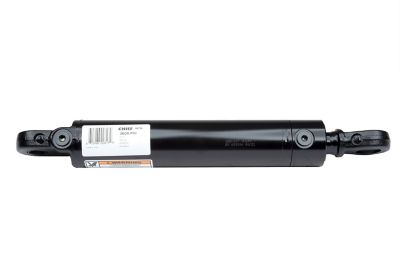

Image showing 2 in. Bore x 12 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.125 in. Rod Diameter

$289.99

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Chief

Chief 2 in. Bore x 12 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.125 in. Rod Diameter

Item # 130783199

$289^.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

The Chief 2 in. Bore x 12 in. Stroke WTG Welded Tang Hydraulic Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.Note: This product may require up to 2 additional days for order processing prior to shipping

Intended for use as a double acting hydraulic cylinder
Piston: ductile iron, thread-on with wear ring
Gland: keyed joint, ductile iron
Tube made from durable precision-honed steel
Rod is induction-hardened and hard chrome-plated for corrosion resistance
Rod end mount: cast 1045 steel, welded-on
Spherical bearing with retaining ring
1/8 NPT grease zerk

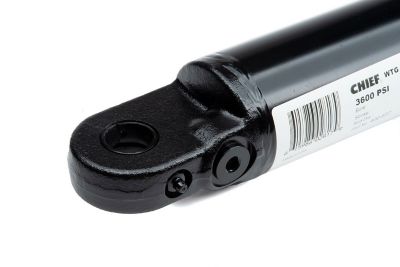

Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
Tube seal: Buna O-ring with polytemp hytrel backup
Rod seal: deep polypak with B-lip design
Rod wiper: urethane, snap-in
Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
All seals are manufactured to U.S. specifications
Ports: SAE O-ring
Paint: black; custom colors are available
3,600 PSI pressure rating
Forged steel tang mountings with integral heavy-duty bushings
360 degree rotating gland for versatility
Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
3-year limited warranty
Measures 22 in. retracted and 34 in. extended
Column load: 11,300 lb.
Pin diameter of 1 in. and rod diameter of 1.125 in.
