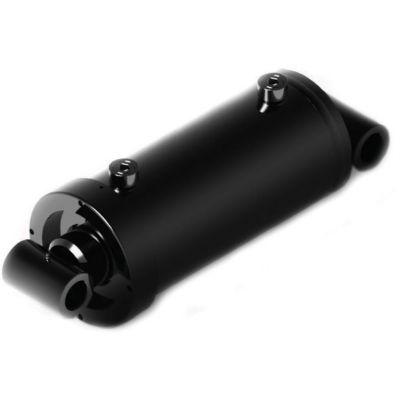

Chief 6 in. Bore x 18 in. Stroke WT Welded Cylinder, 3 in. Rod Diameter

Shop all Chief
Chief 6 in. Bore x 18 in. Stroke WT Welded Cylinder, 3 in. Rod Diameter

Item # 1307530

$799.99
Chief 6 in. Bore x 18 in. Stroke WT Welded Cylinder, 3 in. Rod Diameter

Item # 1307530

$799.99

The Chief 6 in. Bore x 18 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and makes this welded cylinder ideally suited for construction and agricultural applications. It even has the versatility to be used in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing!Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the welded hydraulic cylinder
  • Comes with an externally mounted retainer ring
  • SAE O-ring ports for efficiency
  • Black paint finish
  • Suitable for a variety of applications
  • Made in the USA
  • Measures 29 in. retracted and 47 in. extended
  • Pin diameter 1.5 in. and rod diameter of 2.75 in.
  • 3 year limited warranty
  • Column load: 84,820 lb.
