Grizzly G9961-24in. 10 HP 3-Phase Industrial Plane
Item # 229414399
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

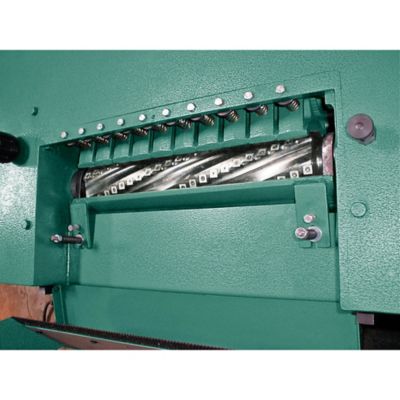

The G9961 24 in. 10 HP 3-Phase Industrial Planer features a 6-row spiral cutterhead with 162 indexable carbide inserts. The variable-speed feed rate of 20 ft. to 40 ft. per minute means you can get the best possible finish. The G9961 has motorized table eThe manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Cutterhead motor: 10 HP, 220-Volt, 3-phase, 25A
- Table elevation motor: 1/2 HP
- Maximum stock width: 24 in.
- Maximum stock thickness: 9 in.
- Minimum stock thickness: 1/4 in.
- Minimum stock length: 10-1/2 in.
- Maximum cutting depth full width: 1/16 in.
- Maximum cutting depth 6 in. wide board: 3/16 in.
- Cutterhead diameter: 4-5/8 in.
- Cutterhead type: 6-row spiral with 162 inserts
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 25 A |
| Cut Through | Wood |
| Features | No additional features |
| Horsepower | 10 hp |
| Housing Material | Cast iron |
| Maximum Board Thickness | 9 in. |
| Maximum Cut Depth | 0.1875 in. |
| Maximum Cuts Per Minute | 30000 CPM |
| Maximum Cut Width | 24 in. |
| Maximum Speed | 5000 RPM |
| Minimum Board Thickness | 0.25 in. |
| Minimum Cut Depth | 0.25 in. |
| Minimum Speed | 5000 RPM |
| Number Of Blades | 162 |
| Number of Speeds | 1 |
| Product Type | Planer |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 58 in. |
| Product Length | 42.375 in. |
| Product Weight | 1940 lb. |
| Product Width | 36 in. |
| Table Length | 24 in. |
| Table Width | 35.5 in. |
| Variable Speed | Variable Speed |
| Voltage | 220 V |
| Warranty | 1 |
| Manufacturer Part Number | G9961 |
