Chief 5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

5.01 Reviews

Item # 130481099

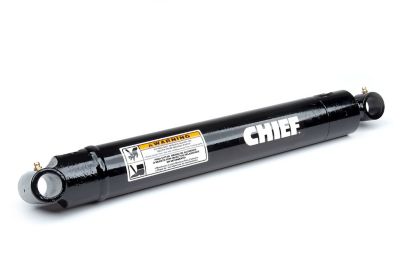

Image showing 5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

$645.51

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Chief

Chief 5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder

5.01 Reviews

Item # 130481099

$645^.51

See 2 deals for this item

This item is available online only

Delivering to

20147

Neighbor’s Club Members earn points with purchases.

The Chief 5 in. Bore x 10 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall space for the hydraulic cylinder is restricted. The adjustable 360 degree rotating gland allows you to make port alignments as needed. All ports are recessed to maximize the already slender welded hydraulic cylinder's design.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
Welded hydraulic cylinder with a 3,000 PSI operating range
Ductile iron piston with nylon, glass-filled wear ring for durability
Adjustable 360-degree rotating gland allows you to make port alignments as needed
Rod is a nitrided steel bar with corrosion and scratch resistance
Double acting hydraulic cylinder design
Satin black paint finish
Individually poly bagged for ease of transport
Made in the USA
3-year limited warranty

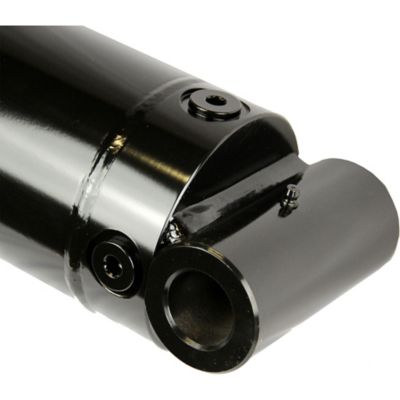

All ports are recessed for a slender design
Measures 22 in. retracted and 32 in. extended
Column load: 58,900 lb.
Pin diameter of 1.5 in. and rod diameter of 2.5 in.
Adjustments are made by using a spanner wrench to rotate the gland with port clockwise or counterclockwise
