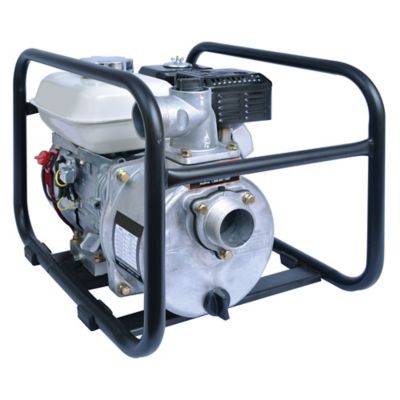

Red Lion 4 HP Engine Driven Water Pump, CARB Compliant, 617053

SKU: 102309399
Red Lion 4 HP Engine Driven Water Pump, CARB Compliant, 617053
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.4
4.4
 (7)

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

Aluminum Water Transfer Pump

  • Powered by commercial grade Honda GX120 engine
  • Durable cast iron semi-open style impeller
  • Lightweight aluminum outer casing includes heavy-duty roll frame
  • Easy to prime to 25'; no additional priming required after initial fill
  • EPA certified

Ideal for general purpose use in high volume water transfer and contractor dewatering applications.

Specification Description
CountryofOrigin: Imported
Compatible Pipe Material: N/A
Voltage: N/A
Maximum Operating Pressure: 25
Suction Port: 2 in.
Part Number: 617053
Brand: Red Lion
Product Height: 15.25 in.
Operating Temperature Range: 32 - 102 deg. F
Valve Inlet Type: Steel MNPT
Product Width: 19.5 in.
Motor Type: GX120
Discharge Port: 2 in.
Housing Material: Aluminum
Maximum Flow Rate: 143 GPM
Product Weight: 52 lb.
Outlet Diameter: 2 in.
Engine Brand: Honda
Type: Water Transfer Pump
Power Type: Gas
Hose Diameter: 2 in.
Minimum Operating Pressure: 0 PSI
Valve Outlet Diameter: 24 mm
Special Feature(s): Built-in check valve
Engine Displacement: 118 cc
Inlet Diameter: 2 in.
Valve Outlet Type: Steel MNPT
Valve Inlet Diameter: 25 mm
Product Length: 15.25 in.
Manufacturer Part Number 617056 617053
Red Lion 4 HP Engine Driven Water Pump, CARB Compliant, 617053 is rated 4.4 out of 5 by 7.
Rated 5 out of 5 by from BEST PUMP OUT Great Pump Love The Honda Engine buy them every time they last the longest
Date published: 2020-03-04
Rated 5 out of 5 by from Great pump Great pump with the honda engine and longer warrenty
Date published: 2020-02-27
Rated 5 out of 5 by from So far, so good. My old pump conked out on me just after I started a concrete project. I hopped in my car and went to Tractor supply and grabbed this Red Lion off the shelf without any time to research and find what I really wanted. I have used it at least 5 tmes a day every day over the last two weeks. 20 minutes at a time to wet down curing concrete in 95 degree heat. It has a Honda engine that has performed flawlessly - as expected. Tne pump attached to the engine seems to be Chinese but has worked well so far. Its too early to tell how it will hold up over time.
Date published: 2019-08-23
Rated 2 out of 5 by from cheap pump, motor very good can,t fin replacement parts or cross reference parts
Date published: 2015-03-26
  • y_2020, m_4, d_8, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_4
  • loc_en_US, sid_102309399, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms
  • REVIEWS, PRODUCT

What is the maximum lift?

Asked by: Magna
This pump has a maximum lift of 25 feet.
Answered by: Red Lion Product expert
Date published: 2016-09-20

Does this item have a threaded shaft or a keyed shaft ?

Asked by: M L Wyrick
Thank you for your question regarding the Red Lion Honda powered transfer pump. In answer to your question we use a threaded shaft. Hope this helps. If you have further questions feel free to contact our tech team at 888-956-0000.
Answered by: Red Lion Product expert
Date published: 2016-07-26
