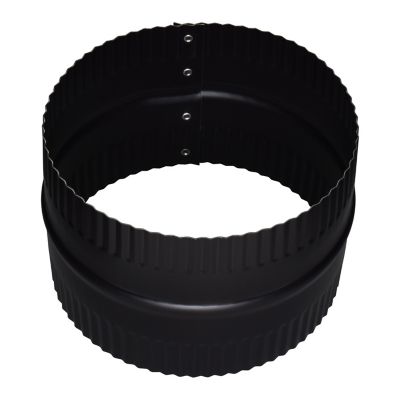

Imperial 6 in. Black Stove Pipe Connector Union, BM0047-C

SKU # 112550899
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Pickup In Store

Delivery Options

Item Information

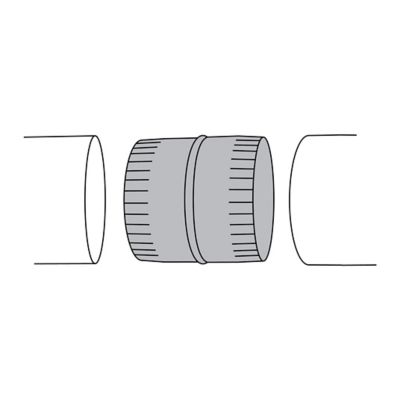

Connector Union is crimped on both ends to connect two non-crimped pieces of pipe

  • 24 gauge pre-painted black steel construction
  • Satin Black finish
  • Each connection should be secured using minimum of 3 sheet metal screws
  • Unshielded minimum clearance to combustible materials is 18"
  • Whenever possible, crimped end of pipe should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe

single-wall black pipe system is an economical way to vent from a woodstove to the entrance of a chimney or where the system breaches a wall or ceiling.

Specification Description
Product Type: Chimney Pipes
Application/Use: Connect wood stove to chimney, wall or ceiling breach
Brand: Imperial
Compatibility: Compatible with 6" diameter single wall stove pipe and fittings
CountryofOrigin: Imported
Finish: Satin Black
Indoor and/or Outdoor: Indoor
Inner Diameter: 6 in. Nominal
Installation Orientation: Vertical
Material: Steel
Maximum Diameter: 6 in.
Maximum Temperature: 800 degrees Fahrenheit
Minimum Diameter: 6 in.
Minimum Product Length: 6 in.
Number of Pieces: 1
Outer Diameter: 6 in.
Part Number: BM0047-C
Product Height: 4 in.
Product Length: 6 in.
Product Weight: 0.72 lb.
Product Width: 6 in.
Special Feature(s): Crimped on both ends, to connect two non-crimped ends of pipe together
Thickness: 24 ga.
Type: Connector Union
Wall Type: Single Wall
Manufacturer Part Number BM0047-C
