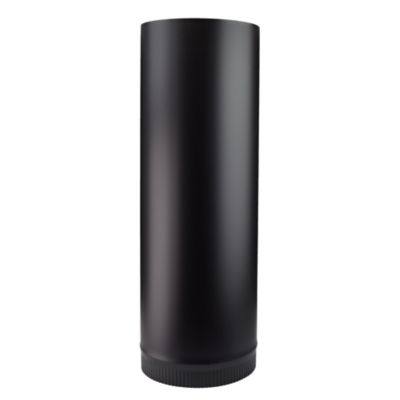

Imperial 8 in. x 24 in. Black Stove Pipe, BM0113-C

SKU # 319665699
Product price

Save Up To
See price at checkout Why?
Product Rating is 5.0
5.0
(3)

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

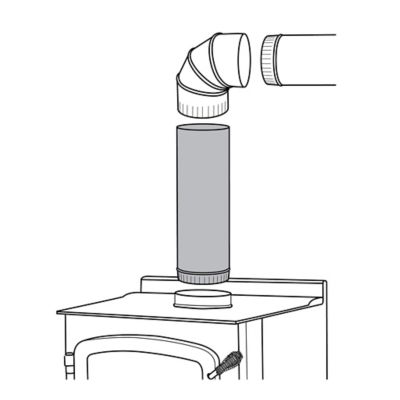

Stove Pipe is used to connect woodstove to entrance of chimney

  • 24 gauge pre-painted black steel construction

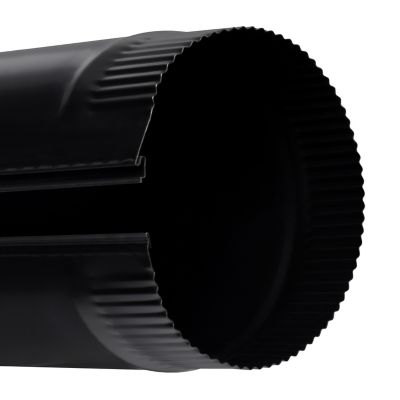

  • Male end is crimped for easy assembly to round pipe or fittings of same diameter
  • Satin Black finish
  • Crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe
  • Each connection should be secured using minimum of 3 sheet metal screws
  • Unshielded minimum clearance to combustible materials is 18"

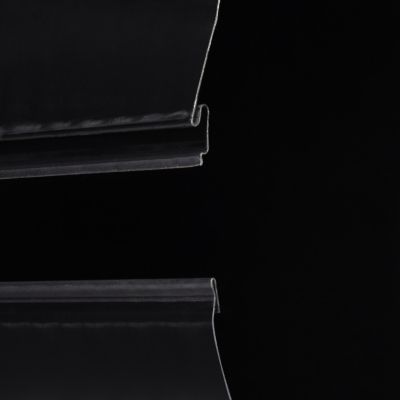

  • Snap lock assembly

Single-wall black pipe is an economical way to vent from a woodstove to the entrance of a chimney or where the system breaches a wall or ceiling.

Specification Description
Product Type: Chimney Pipes
Application/Use: Connect wood stove to chimney, wall or ceiling breach
Brand: Imperial
Compatibility: Compatible with 8 in. diameter single wall stove pipe and fittings
CountryofOrigin: Made in USA
Finish: Satin Black
Indoor and/or Outdoor: Indoor
Inner Diameter: 8 in. nominal
Installation Orientation: Vertical
Material: Steel
Maximum Diameter: 8 in.
Maximum Temperature: 800 degrees Fahrenheit
Minimum Diameter: 8 in.
Minimum Product Length: 24 in.
Number of Pieces: 1
Outer Diameter: 8 in.
Part Number: BM0113-C
Product Height: 8 in.
Product Length: 24 in.
Product Weight: 4 lb.
Product Width: 8 in.
Special Feature(s): Snap lock single wall stove pipe
Thickness: 24 ga.
Type: Wood Stove Vent Pipe
Wall Type: Single Wall
Manufacturer Part Number BM0113-C
Imperial 8 in. x 24 in. Black Stove Pipe, BM0113-C is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from GOOD STUFF HARD TO PUT TOGETHER BUT WORKS GREAT WHEN YOU DO!!
Date published: 2018-01-15
Rated 5 out of 5 by from As advertised Purchased 8" pipe for my stove install an 2 90 fit working fine. Also used fire cement for a tight leak free I stall
Date published: 2017-01-01
  • y_2018, m_8, d_16, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_2
  • loc_en_US, sid_319665699, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply

Where is it made?

Asked by: Shilotexas
This pipe is made in Alton Illinois.
Answered by: BrittanyH
Date published: 2017-09-19

is 8 in x 24 in black stove pipe seamless or snap lock design ?

Asked by: blackie bk
It's a snap lock pipe.
Answered by: BrittanyH
Date published: 2017-09-15

Is this single, double or triple wall?

Asked by: Bobby1973
This is a single wall pipe.
Answered by: BrittanyH
Date published: 2017-09-02
